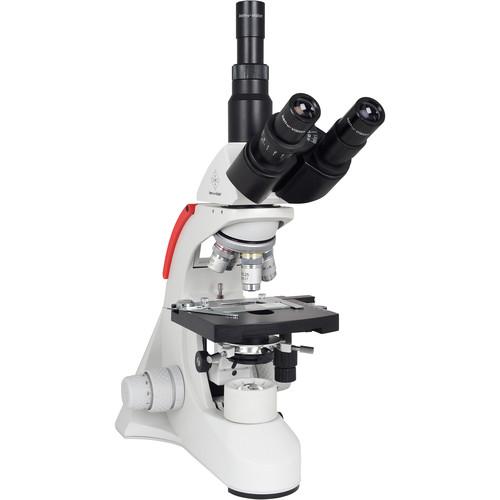

User Manual for Ken-A-Vision TU19341C Dual-Purpose Trinocular Compound Microscope Click to enlarge the picture
Contents of the user manual for the Ken-A-Vision TU19341C Dual-Purpose Trinocular Compound Microscope
- Product category: Microscopes Ken-A-Vision
- Brand: Ken-A-Vision
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Ken-A-Vision Microscopes
 |
User manual for the Ken-A-Vision TU19341C Dual-Purpose Trinocular Compound Microscope contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Ken-A-Vision product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Ken-A-Vision user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Ken-A-Vision product will considerably shorten its lifespan!
|

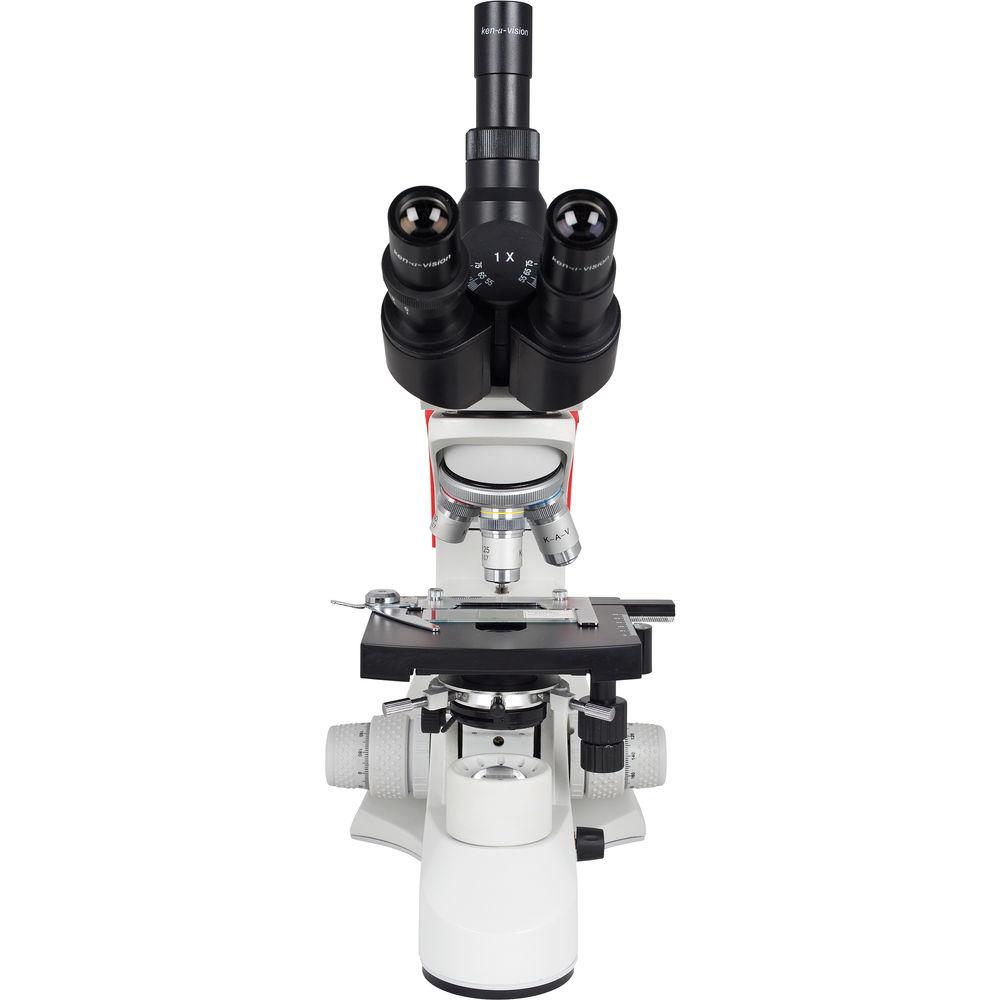

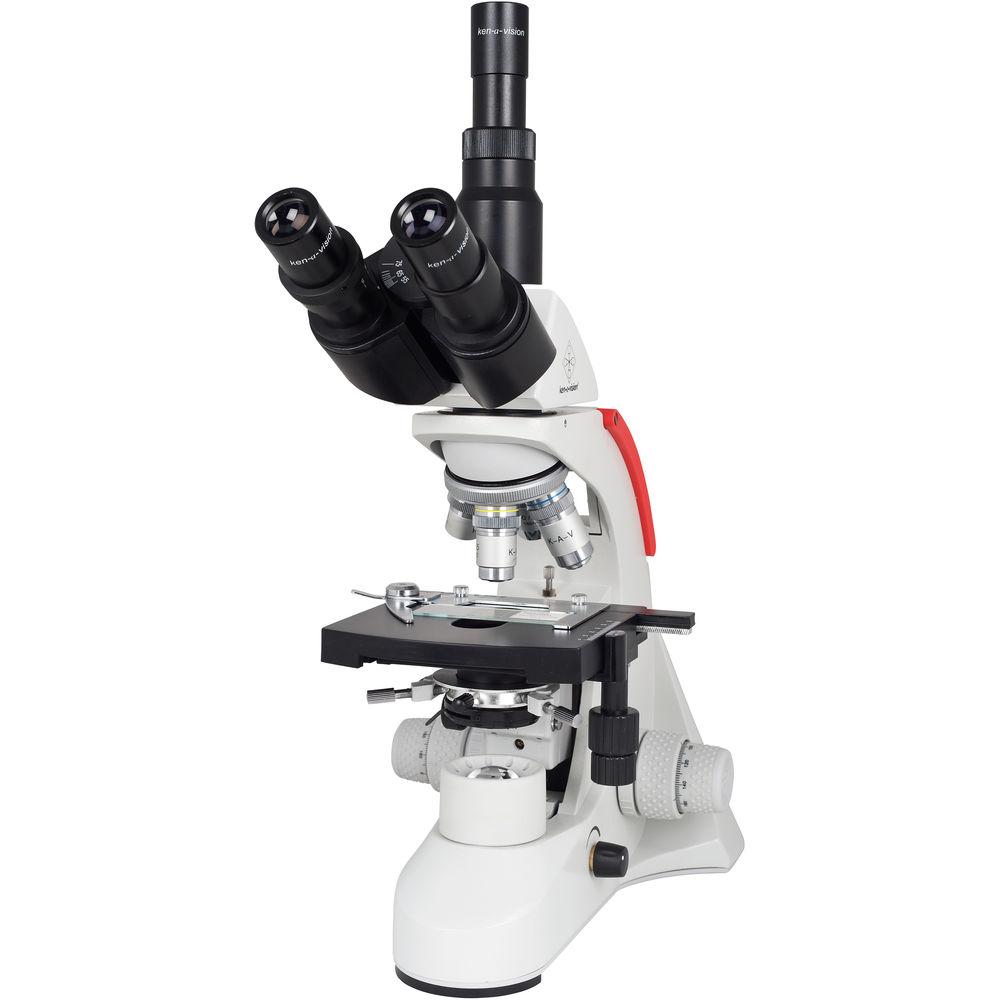

Product description Ken-a-Vision designed the 110 VAC US version of their Siedentopf trinocular-head configured TU19341C Dual-Purpose Trinocular Compound Microscope from the ground up as an ideal instrument for entry level to advanced science courses that is durable and student-friendly. Its angled binocular eyepiece design provides a more comfortable viewing experience for the primary user, and a third eyepiece is set on top for additional users or for an instructor to assess a student's ability in real-time. The entire head rotates a full 360° to facilitate sharing among groups of students and/or the instructor. The binocular eyepiece configuration allows users to view with both eyes open which reduces fatigue common with long-term use of monocular designs. A binocular view also preserves stereoscopic vision for a rich depth of view unobtainable with monocular heads and which is important when viewing textiles, rocks, minerals, coins, and other irregularly shaped 3-D samples.The optical system features three 10x eyepieces - one with an integrated pointer in the binocular set - placed in a 30°-angled binocular head, a third identical eyepiece set in the center of the head pointing straight up, and a four-objective 360° rotating turret with click-stop positions at each lens. Four objectives from 2x to 40x produce a broad magnification range of 20x to 400x making this microscope a versatile observation tool. Its achromatic glass objectives are designed to correct for chromatic and spherical aberrations in the center 60% of the field of view, so images have a true color representation with virtually no distortion at the central point of observation. If users need to change or replace objectives, Ken-a-Vision designed them to DIN standards to enable parts from many manufacturers to be installed without the need for modifications.The microscope features a floating stage with spring-loaded specimen clips that offers a deeper working distance than the more common fixed-stage. Specimens are lit from below with an LED and an additional LED is set above the stage for use when observing solid or opaque specimens that require them to be lit from the top. The LEDs are powered by either the included power adapter or permanently installed rechargeable battery pack. There are two independent rheostats providing control of each LED intensity, and to help control the amount of light illuminating the specimen from below is a built-in condenser on the stage. This multifunction adjustability enables precise illumination for the perfect image. - Optical System
-
- Two 19mm wide-field 10x eyepieces - one with an integrated pointer - set in binocular configuration
- Single 19mm wide-field 10x eyepiece set on top of head for additional users
- 2x NA 0.05 Achromat objective: 20x magnification
- 4x NA 0.10 Achromat objective: 40x magnification
- 10x NA 0.25 Achromat objective: 100x magnification
- 40x(S) NA 0.65 Achromat objective: 400x magnification
- Achromatic glass objectives correct chromatic and spherical aberrations in the center 60% of the field of view, so images have a true color representation with virtually no distortion
- DIN standard allows for eyepiece and objectives to be changed/replaced using a wide-range of parts from different manufacturers
- 40x objective features built-in spring action tip that avoids crushing specimens if lowered too far
- Lead-free glass with anti-fog multicoatings
- Focusing System
-
- Low-position coaxial focusers
- Dual controls for right or left-handed focus focusing
- Textured rubber grips on fine and coarse dials
- Lighting System
-
- Sub-stage, white LED specimen illumination
- Upper light for opaque and solid specimens
- Base-mounted activation switch
- Low-position rheostat provides brightness control
- Permanently-installed rechargeable battery pack with 40 hour runtime and 8 hour charge time
- Includes a 110 VAC US voltage power adapter
- Stage
-
- 4.7 x 4.7" floating stage
- Built-in rack-and-pinion condenser
- Dual spring loaded stage clips
- 2" working distance
- Construction Details
-
- Body: Single cast aluminum fixed arm
- Head: 30° inclined Siedentopf trinocular design
- Head rotates a full 360° for easier sharing
- Nosepiece: Reversed 4-hole; ball-bearing mounted objective turret with click-stops
- Storage compartment for USB cable
- Retractable carrying handle integrated into body
- Storage compartment with built-in receptacle for the external power supply
- "Table Guard" protection base with polymer surface protection barrier
- Height: 13.0"
- Weight: 10.4 lb
In the Box Ken-A-Vision TU19341C Dual-Purpose Trinocular Compound Microscope (US Version) Allen Wrench Microscope Cover 110 VAC US-Compatible Power Supply Limited 10-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Ken-A-Vision TU19341C Dual-Purpose Trinocular Compound Microscope in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersKen-A-Vision TU-19341C Specs | Type | Compound | | Head Type | Siedentopf trinocular
Full 360° rotation
30° incline binocular set of eyepieces | | Eyepiece | 3 x 19mm wide-field 10x, one with integrated pointer | | Dioptric Correction | ±0.20x | | Nosepiece | Reversed 4-postion turret with click stop, full 360° rotation | | Objective(s) | Objective 1: 2x NA 0.05 Achromat
Objective 2: 4x NA 0.10 Achromat
Objective 3: 10x NA 0.25 Achromat
Objective 4: 40x(S) NA 0.65 Achromat | | Focuser | Low-position coaxial coarse and fine focus
Dual knobs for left/right-hand use | | Dioptric Correction | ±0.20x | | Specimen Stage | 4.7 x 4.7" (12.0 x 12.0 cm) floating stage with built in condenser
Working distance: 2.0" (5.0 cm) | | Light Source | Sub-stage and upper white LED with independent rheostat adjustment | | Power | 110 VAC US voltage
Factory-installed rechargeable battery: 40 hr runtime, 8 hr charge time | | Certificates | CE, CSA, RoHS, ISO 9001--2000 | | Dimensions | 13.0 x 10.0 x 7.0" (33.0 x 25.4 x 17.8 cm) | | Weight | 10.4 lb (4.7 kg) | | | | Package Weight | 15.0 lb | | Box Dimensions (LxWxH) | 20.0 x 16.0 x 13.0" |
