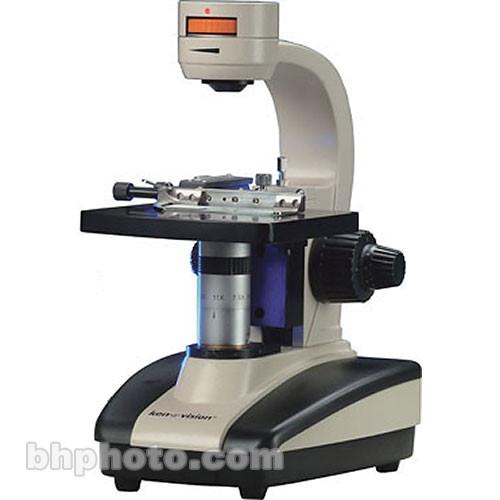

User Manual for Ken-A-Vision X2000 Microprojector 2 Click to enlarge the picture
Contents of the user manual for the Ken-A-Vision X2000 Microprojector 2
- Product category: Digital Microscopes Ken-A-Vision
- Brand: Ken-A-Vision
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Ken-A-Vision Digital Microscopes
|
User manual for the Ken-A-Vision X2000 Microprojector 2 contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Ken-A-Vision product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Ken-A-Vision user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Ken-A-Vision product will considerably shorten its lifespan!
|
Product description Ken-a-Vision's Microprojector 2 Digital Microscope is built from the ground up to optimize student's learning experience by providing a simple VGA video-output interface for use with projectors, computers, and other digital display systems. Using the familiar stage and focusing mechanisms students and instructors are used to allows for an easy transition from traditional instruments. The entire light path is top to bottom inverted with a digital camera sitting in place of the eyepiece; a single zoom objective resides on the nosepiece and turret, located below the stage.The X2000 is designed with a large 5.3 x 5.1" floating stage, and a deep working area, that allows easy observation of larger specimens. An included mechanical stage add-on features a spring arm to hold slides and specimens in place and X & Y axes adjustment knobs that let users move the specimens into precise position over the objective. A cool-running LED won't heat specimens, and a large rheostat dial provides variable output control for optimal illumination. The instrument can be operated as a cordless device using an internal rechargeable battery with a 40-hour runtime (and an 8-hour charge time) or as a corded scope using the included power supply. This version is specifically designed to work with 110 VAC US voltage outlets. - Optical Performance
-
- Inverted, top to bottom light path
- Total magnification from 30x to 300x
- 1024 x 768 VGA resolution digital camera
- LED illuminator above the stage and objective below
- Included filter for use at 3x and 4.5x
- Illumination
-
- Non-heating LED illumination
- Suitable for observing live samples
- Precision brightness control
- Internal rechargeable battery with 40-hour runtime
- Stage and Construction
-
- 5.3 x 5.1" rectangular floating stage
- Vernier precision stage controls
- Lockable metal sample bracket
- Stable wide base
- Durable ergonomic construction
- Arched back can be used as a carry handle
In the Box Ken-A-Vision X2000 Microprojector 2 (US Version) - Microscope Cover
- 5.3x5.1" Floating Stage
- 5.3x5.1" Mechanical Stage
- 110 VAC US Voltage Power Supply
- Limited 5-Year Warranty on Microscope
- Limited 90-Day Warranty on Camera
Table of Contents
|
Upload User Manual
Have you got an user manual for the Ken-A-Vision X2000 Microprojector 2 in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersKen-A-Vision X2000 Specs | Head Type | Built-In Digital Camera | | Resolution | 1024 x 768, VGA | | Eyepiece | None | | Nosepiece | None | | Objectives | 3 - 30x inverted single variable-power | | Outputs | XGA: RGB 15-pin D-Sub | | Stage | 5.3 x 5.1" (13.5 x 13.0 cm) floating stage with mechanical add-on | | Focusing | Coarse and fine, left side | | Light Source | LED | | Dimensions | 12.0 x 8.3 x 6.5" (30.5 x 21.0 x 16.5 cm) | | Weight | 7.7 lb (3.5 kg) | | | | Package Weight | 10.0 lb | | Box Dimensions (LxWxH) | 20.0 x 14.0 x 10.0" |
