User Manual for Kenko Auto Extension Tube Set DG for Micro Four Thirds Lenses Click to enlarge the picture
Contents of the user manual for the Kenko Auto Extension Tube Set DG
- Product category: Extension Tubes Kenko
- Brand: Kenko
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Kenko Extension Tubes
 |
User manual for the Kenko Auto Extension Tube Set DG contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Kenko product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Kenko user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Kenko product will considerably shorten its lifespan!
|

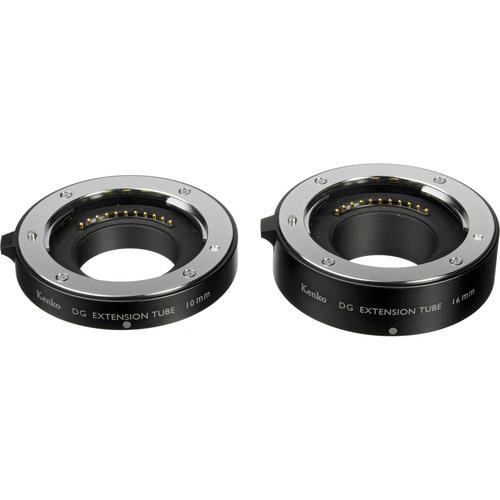

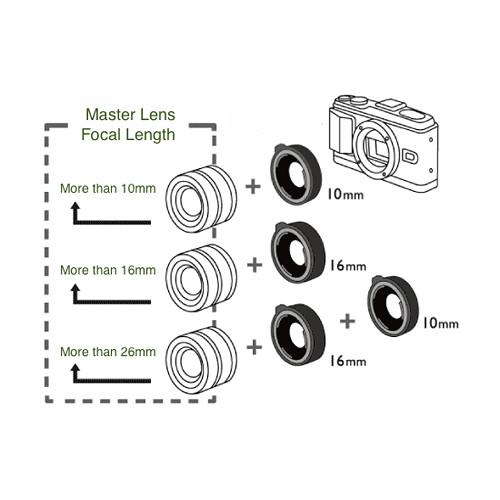

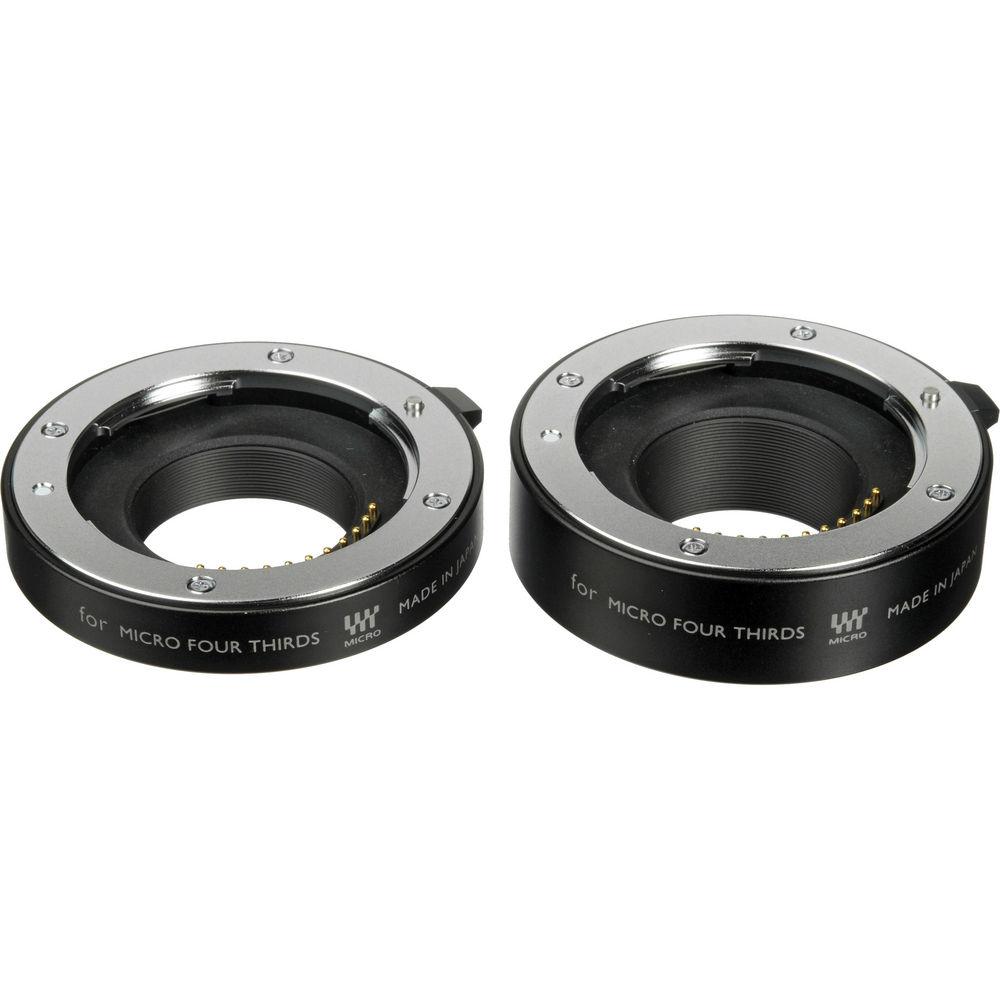

Product description The Auto Extension Tube Set DG for Micro Four Thirds Lenses by Kenko is a set of two extension tubes for mirrorless interchangeable lens cameras. This set has tubes of 10 mm and 16mm. The tubes can be used individually or in combination to obtain the desired magnification. Extension tubes are hollow cylinders without optics designed to enable a camera's lens to focus closer than its minimum focusing distance and therefore provide more magnification. They are placed between the lens and body and are particularly useful in allowing lenses without macro capability to shoot macro, but in general, they offer increased magnification for whatever need. An extension tube increases lens magnification by an amount equal to the extension distance divided by the lens focal length. For example, adding a 25 mm extension tube to a 50 mm lens will give a magnification gain of 0.5X. Therefore, if the lens's original magnification was 0.15X, then the new magnification will be 0.15X + 0.5X = 0.65X.
Kenko's Auto Focus extension tubes are designed with all the circuitry and mechanical coupling to maintain auto focus and TTL auto exposure with Micro Four Thirds lenses. Note: 1. When using extension tubes the lens will not focus to infinity. The focus range will be greatly limited to a very close focusing distance. 2. There is light fall off when using any extension tube, sometimes the equivalent of 3 f-stops of light is lost when using multiple extension tubes together. This light lost can affect the camera's ability to auto focus. Manual focusing is recommended should the lens begin to "hunt" (not lock onto the subject). In the Box Kenko Auto Extension Tube Set DG for Micro Four Thirds Lenses Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Kenko Auto Extension Tube Set DG for Micro Four Thirds Lenses in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersKenko A-EXTUBEDG-M43 Specs | Mount | Micro Four Thirds | | Length | 10 mm
16 mm | | Weight | 1.7 oz / 48 g (10 mm Tube)
2.5 oz / 70 g (16 mm Tube) | | | | Package Weight | 0.3 lb | | Box Dimensions (LxWxH) | 2.8 x 2.7 x 2.6" |
Rating96% users recommend this product to others. And what about you?
This product has already been rated by 57 owners. Add your rating and experience with the product.
