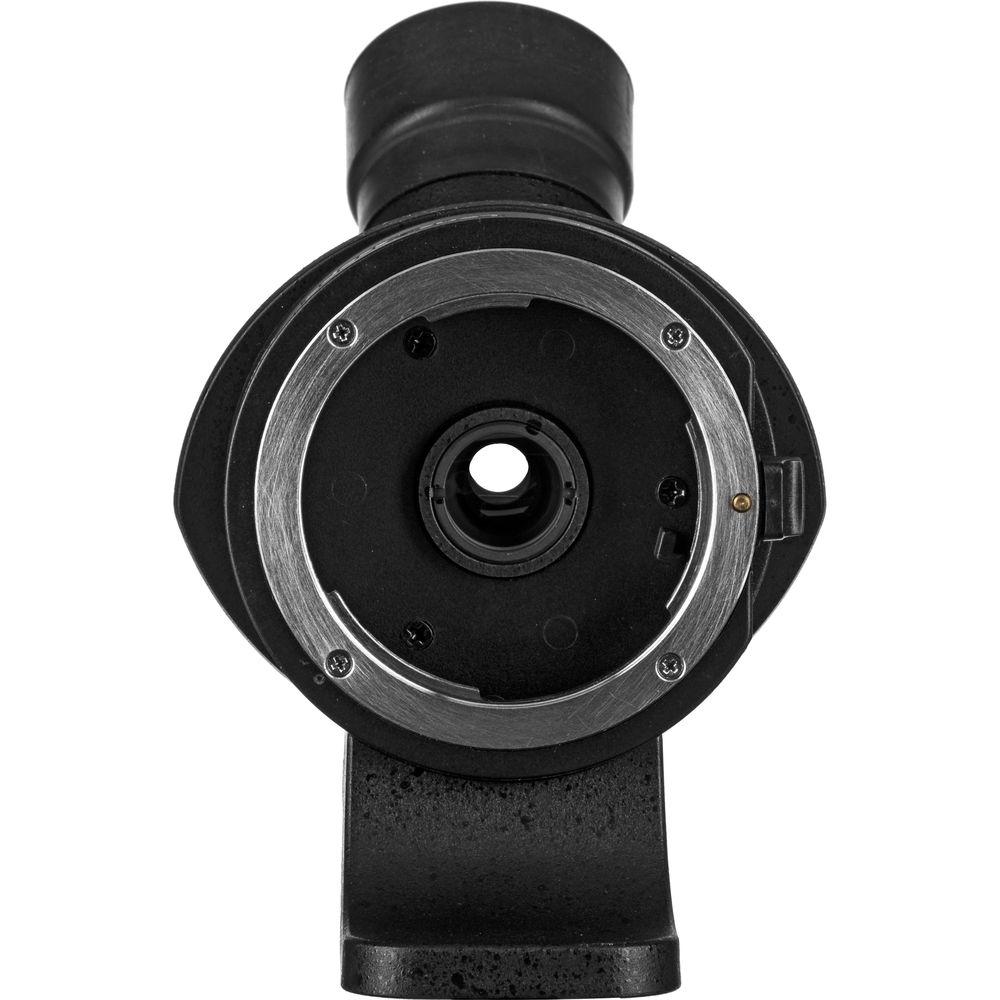

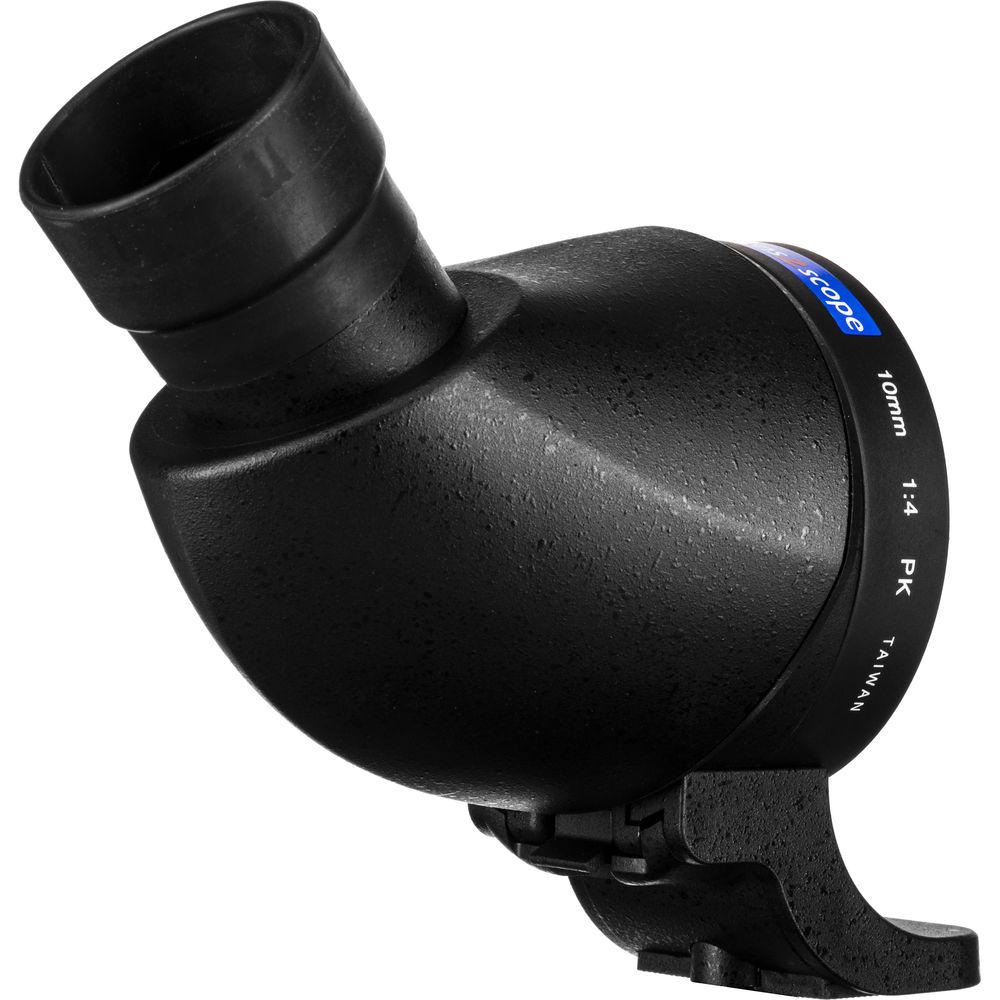

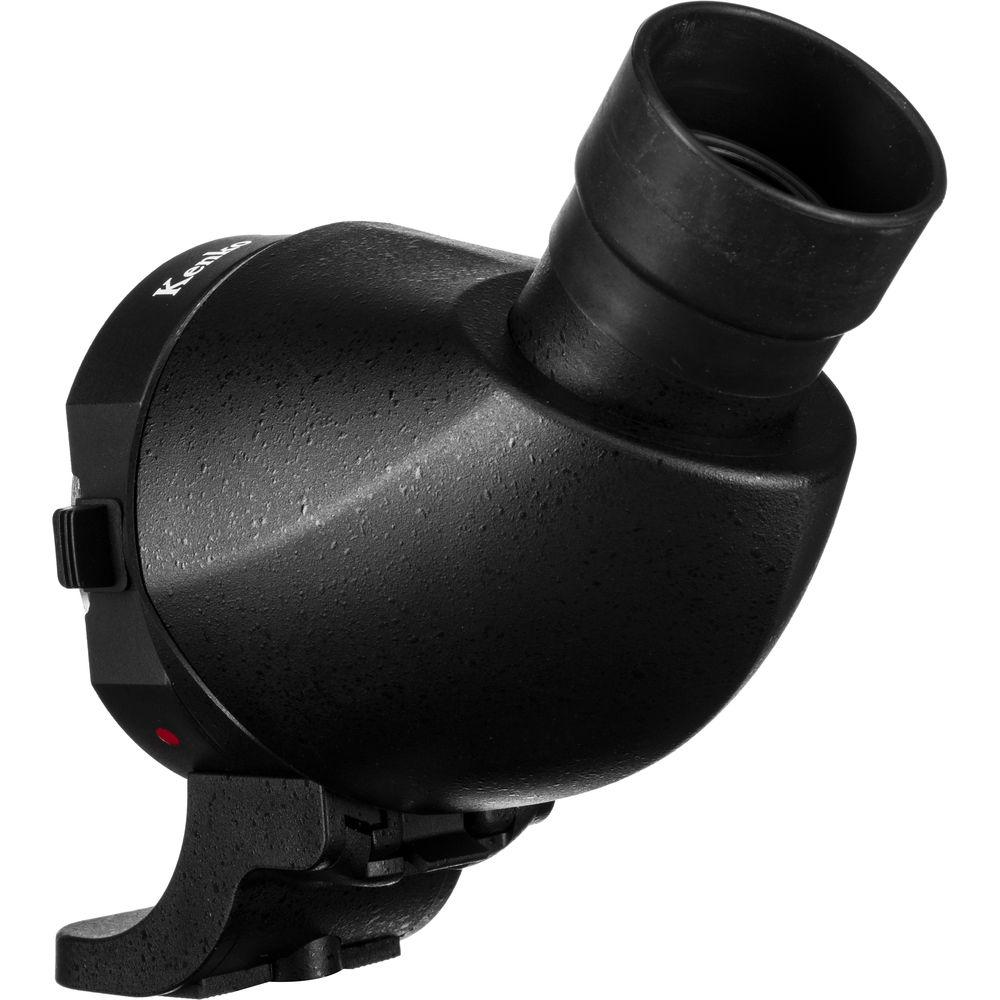

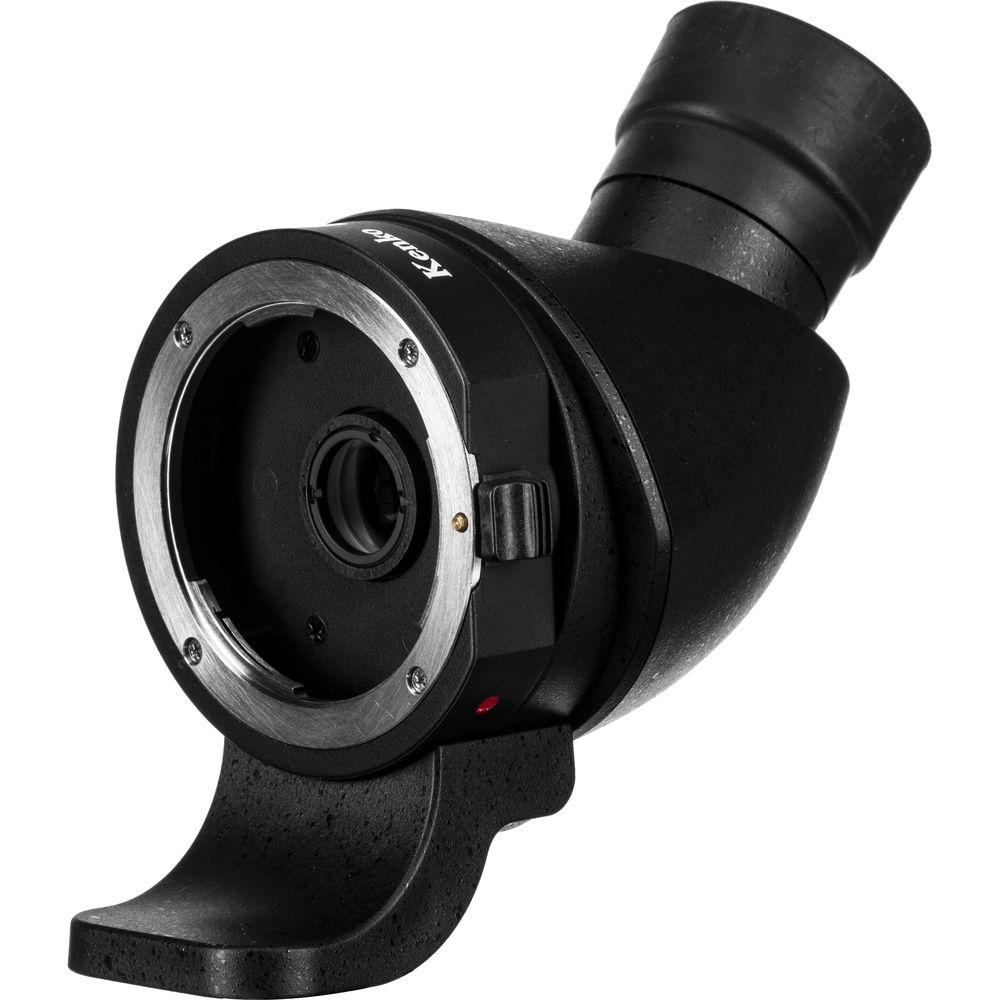

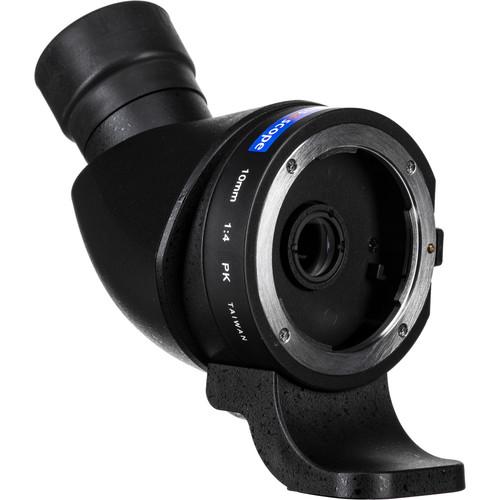

User Manual for Kenko Lens2scope Adapter for Pentax K Mount Click to enlarge the picture
Contents of the user manual for the Kenko Lens2scope Adapter for Pentax K
- Product category: Spotting Scope Accessories Kenko
- Brand: Kenko
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Kenko Spotting Scope Accessories
 |
User manual for the Kenko Lens2scope Adapter for Pentax K contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Kenko product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Kenko user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Kenko product will considerably shorten its lifespan!
|
Product description Kenko black Lens2scope Adapter for Pentax K Mount is a simple accessory that converts any Pentax K Mount lens into a spotting scope. Its lightweight body houses a compact roof prism, lenses, and an eyepiece just like a traditional spotting scope and with the lens is attached, the whole system acts as a spotting scope. This model features an angled eyepiece that is set at a 45° angle for more comfortable viewing while sitting, standing or laying.The optics in the Lens2scope Adapter magnifies the image by a factor of 10x so that a 100mm lens would have the same magnification as a 1,000mm lens when viewing. Focus is easily achieved by using the lens' manual focus ring. It has a removable tripod adapter for more comfortable viewing over extended periods of time, and supports up to 28.2 oz. A small case is included to safely store and transport the adapter. - Optical Performance
-
- 10mm focal length
- Roof prism optical path
- 5-element / 3-group lens configuration
- Spotting scope magnification ratio: 1/10X the focal length of the lens mounted
- Loupe magnification ratio: 25X when the lens mounted has 1:1 macro capability
- 42° apparent field of view
- Maximum exit pupil: 2.5mm
- 20mm long eye relief
- Use and Handling
-
- Angled viewing: Eyepiece is set at a 45° angle for more comfortable viewing whether sitting, standing or laying
- Focus using camera lens
- Fold-down rubber eyecup
- Removable tripod adapter with 1/4"-20 mount, supports up to 28.2oz (800g)
In the Box Kenko Lens2scope Adapter for Pentax K Mount (Angled View) Carrying Case Tripod Mount Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Kenko Lens2scope Adapter for Pentax K Mount in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersKenko K-LS10-PKAB Specs | Prism System | Roof prism | | Focal Length | 10 mm | | Apparent Field of View | 42° | | Eye Relief | 20 mm | | Dimensions | 7.1 x 4.3 x 3.1" / 18.0 x 11.0 x 8.0 cm | | Weight | 6.5 oz / 185.0 g | | | | Package Weight | 0.65 lb | | Box Dimensions (LxWxH) | 6.0 x 4.4 x 3.5" |
Rating80% users recommend this product to others. And what about you?
This product has already been rated by 97 owners. Add your rating and experience with the product.
