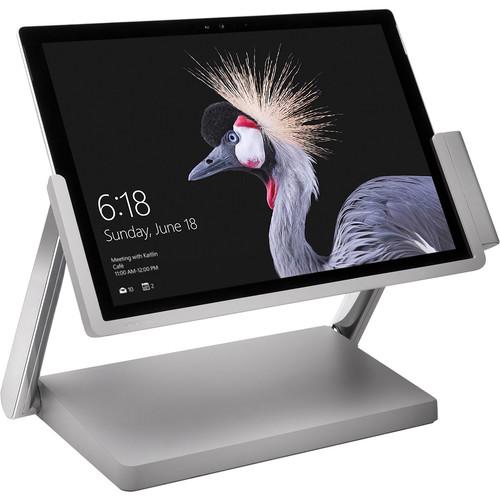

User Manual for Kensington Dual 4K Surface Pro Docking Station SD7000 Click to enlarge the picture
Contents of the user manual for the Kensington Dual 4K Surface Pro Docking
- Product category: Docking Stations & Port Replicators Kensington
- Brand: Kensington
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Kensington Docking Stations & Port Replicators
 |
User manual for the Kensington Dual 4K Surface Pro Docking contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Kensington product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Kensington user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Kensington product will considerably shorten its lifespan!
|

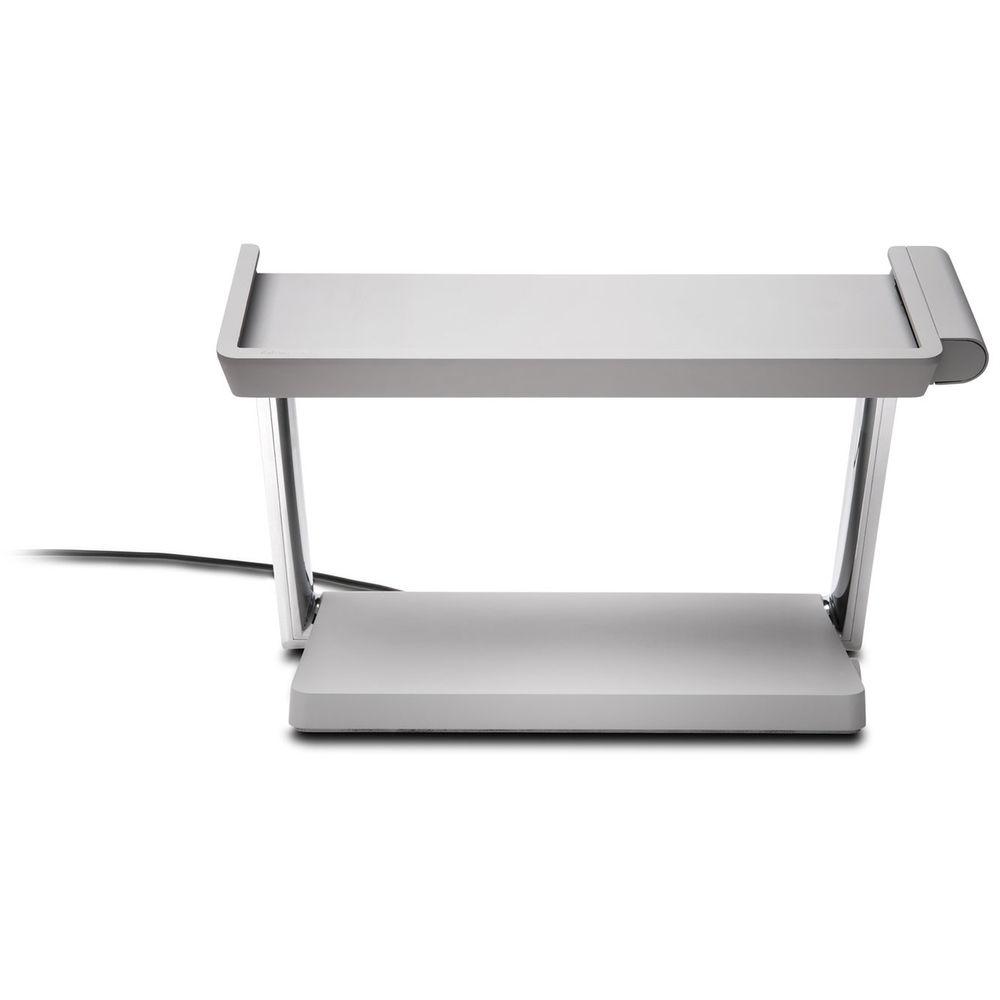

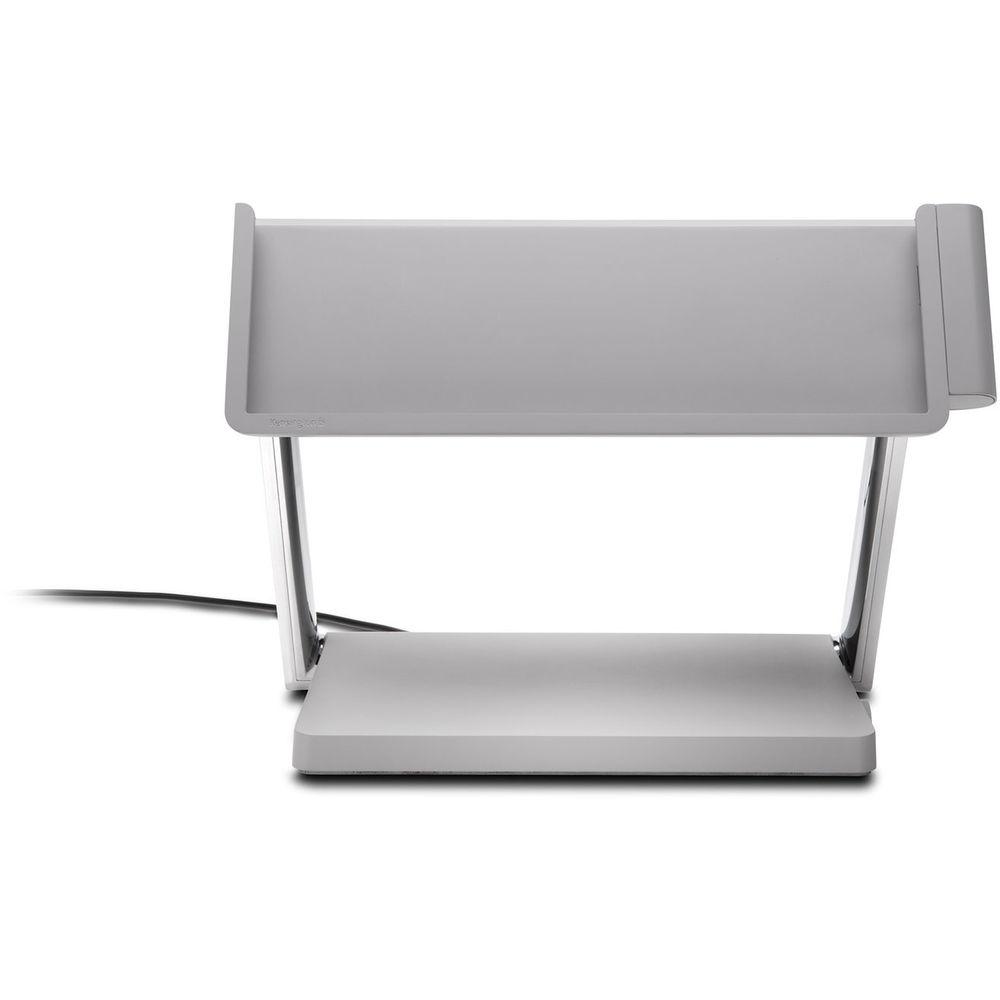

Product description Expand the connectivity of your Microsoft Surface Pro with the Kensington Dual 4K Surface Pro Docking Station SD7000. Lift, tilt, and lower your Surface Pro's display for your comfort with this docking station's flexible articulating hinge. The SD7000 supports 4K resolution monitors up to 3840 x 2160 at 60Hz, or 30Hz for dual monitor setups.

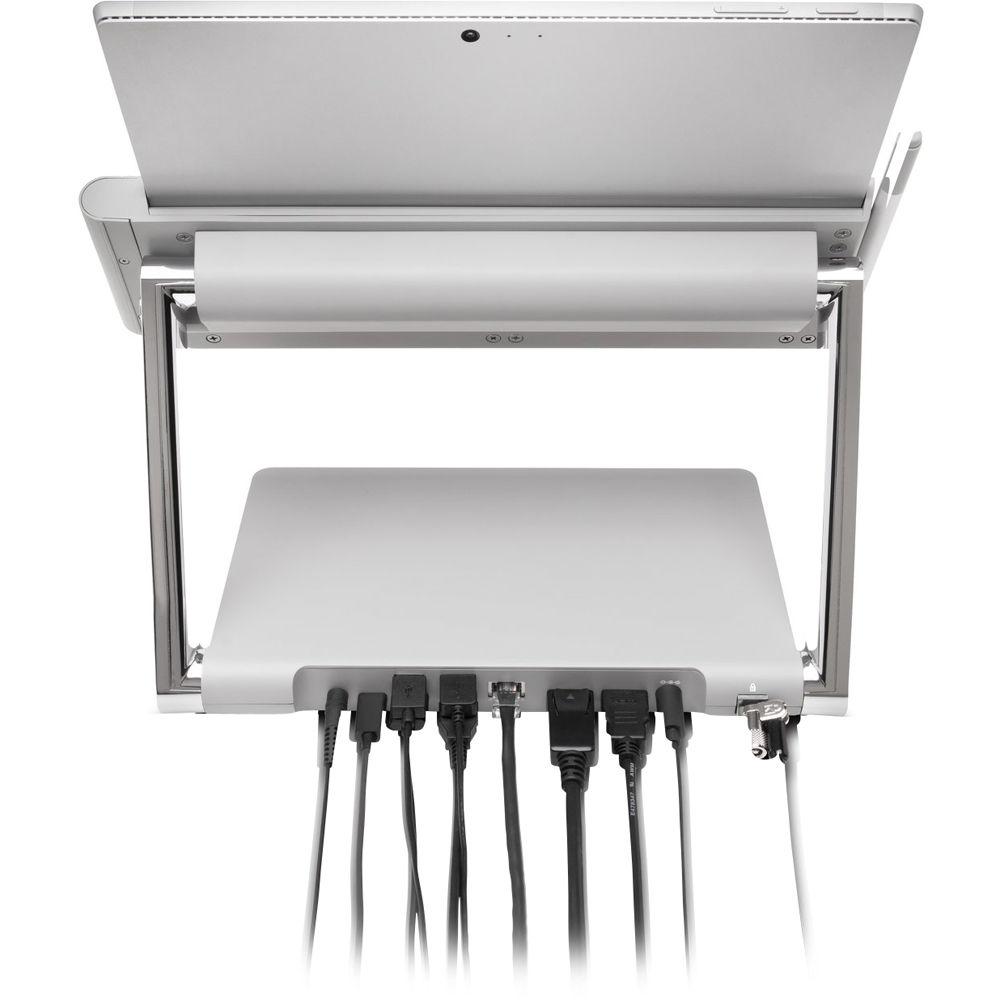

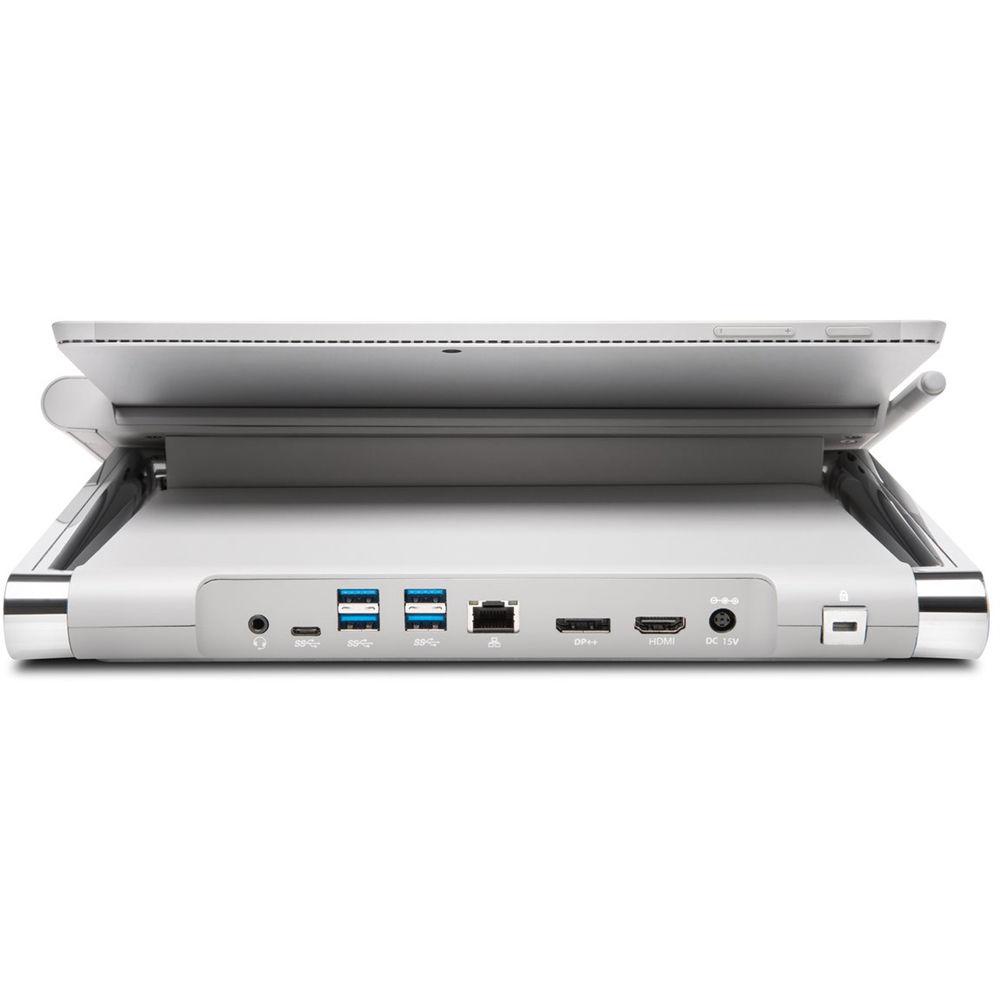

The SD7000 houses a plethora of ports, including a USB 3.1 Type-C output and four USB 3.0 Type-A outputs, which transfers data up to 5Gb/s and delivers a charge up to 5V respectively. The SD7000 also has inputs that can extend your Surface Pro's screen to an external monitor with its built-in DisplayPort and HDMI support. Additionally, the SD7000 offers a Gigabit Ethernet jack for wired networking connections.
Furthermore, the SD7000 secures your Surface Pro with its integrated Kensington lock slot. This versatile docking station is compatible with Windows 10, so your Surface Pro can work in an optimized operating system. - Designed for Surface Pro
- The SD7000 integrates Microsoft's proprietary Surface Connect technology, which allows a seamless docking connection and charge experience.

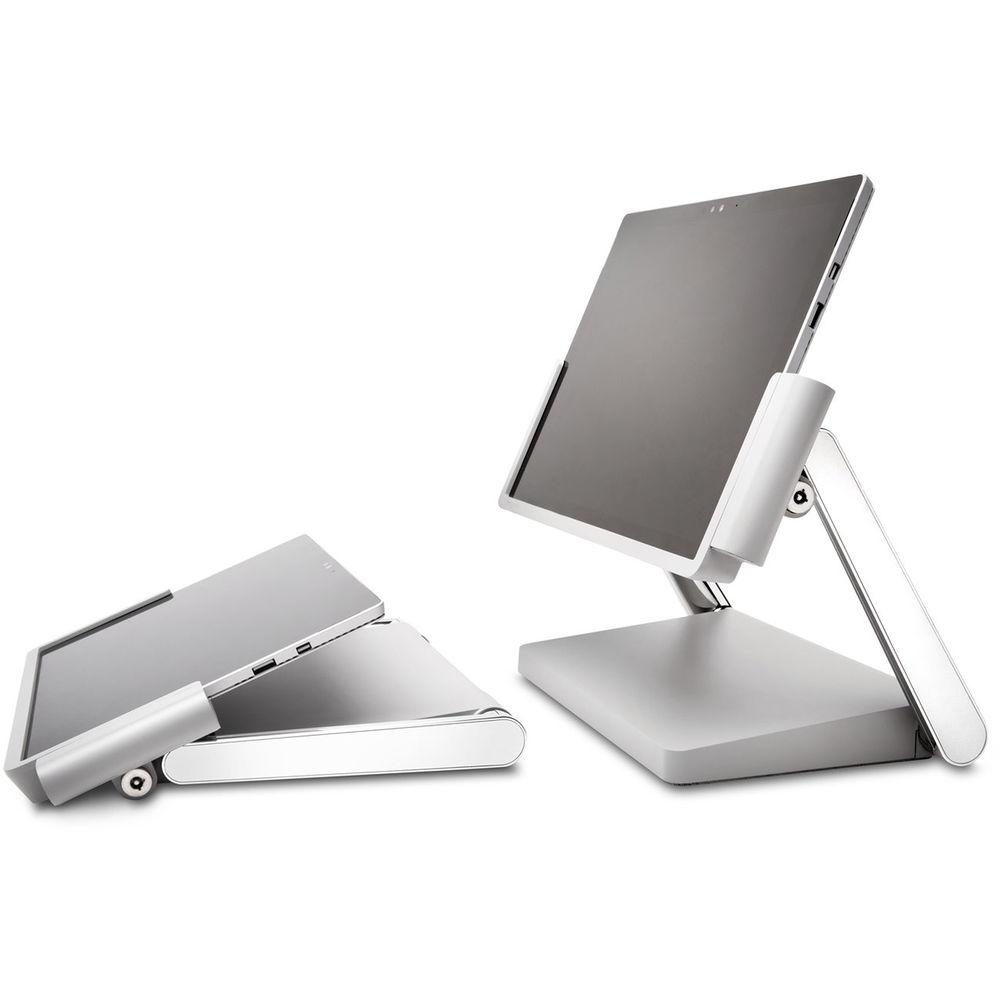

- Articulating Hinge
- Adjust the position of your docked Surface Pro so it can stand upright or lay flat in Studio Mode.
- Versatile Video Connections
- Connect to different external monitor setups with output options for HDMI via DisplayPort. The SD7000 supports one 4K monitor with a resolution up to 3840 x 2160 @ 60Hz or two 4K monitors with resolutions up to 3840 x 2160 @ 30Hz.
- Gigabit Ethernet Port
- The SD7000 supports Gigabit Ethernet for wired networking up to 1 Gb/s connections.
- 5 USB Ports
- Extend the desktop productivity capabilities of your Surface Pro via four USB 3.0 Type-A ports that transfer data up to 5 Gb/s and output 5V / 0.9A of power. The SD7000 also features one USB 3.1 Type-C port that transfers data up to 5 Gb/s data and outputs 5V / 3A of power.

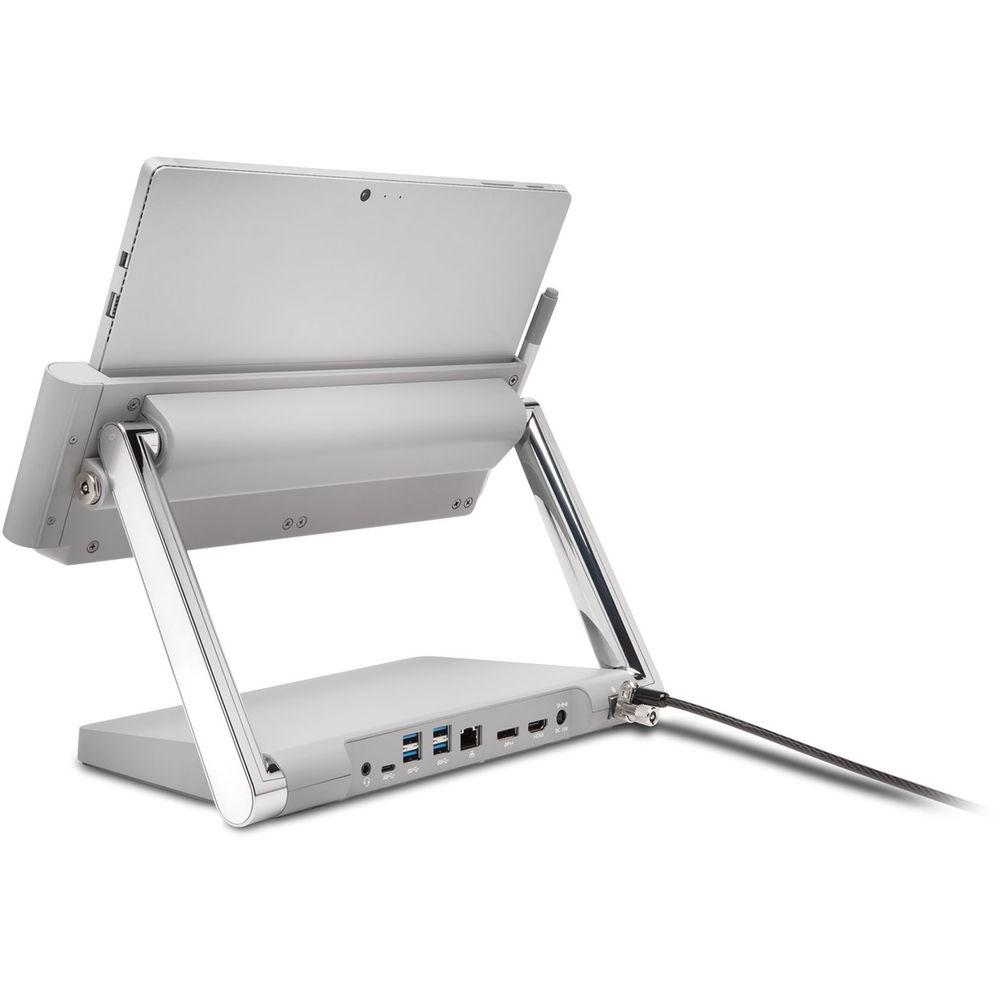

- Kensington Security Slot
- The SD7000 allows you to easily implement a Kensington cable lock for physical device security and protects your Surface Pro dock from potential thieves.
- Magnetic Connection for Surface Pen
- Kensington's SD7000 dock houses a magnetic holder that keeps your Surface Pen close by and ready to use.
- Optional Lock Module
- The SD7000 can be enhanced further with the optional SD7000 Lock Module, which adds to your Surface Pro's security when docked.
UPC: 085896629177 In the Box Kensington Dual 4K Surface Pro Docking Station SD7000 Limited 3-Year Warranty More info from Kensington tvesazuwadrsavyrybresrstvsrws Table of Contents
|
Upload User Manual
Have you got an user manual for the Kensington Dual 4K Surface Pro Docking Station SD7000 in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersKensington SD7000 Surface Pro Specs | | | USB | 4 x USB 3.1 Gen 1 Type-A (0.9 A)
1 x USB 3.1 Gen 1 Type-C (3 A) | | Thunderbolt | None | | Ethernet | 1 x RJ45 (10/100/1000 Mbps) | | FireWire | None | | Display | 1 x DisplayPort 1.2
1 x HDMI 2.0 | | Audio | 1 x 1/8" / 3.5 mm Headphone/Microphone Combo | | Memory Card Slots | None | | | | System Connection | 1 x Proprietary Female | | | | Number of Displays Supported | 2 | | Maximum Resolution Supported | 3840 x 2160 at 60 Hz (Single Display)
3840 x 2160 at 30 Hz (Dual Display) | | Data Transfer Rate | 5 Gb/s USB 3.0/USB 3.1 Gen 1 | | Operating System Support | Windows | | UASP Support | No | | | | Lock Slot | Yes, Kensington | | Dimensions | 15.4 x 12.8 x 6.3" / 39.12 x 32.51 x 16 cm | | Weight | 9.7 lb / 4.4 kg | | | | Package Weight | 10.55 lb | | Box Dimensions (LxWxH) | 16.0 x 13.0 x 6.5" |
