User Manual for Kensington SD5200T Thunderbolt 3 Docking Station Click to enlarge the picture
Contents of the user manual for the Kensington SD5200T Thunderbolt 3 Docking Station
- Product category: Docking Stations & Port Replicators Kensington
- Brand: Kensington
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Kensington Docking Stations & Port Replicators
 |
User manual for the Kensington SD5200T Thunderbolt 3 Docking Station contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Kensington product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Kensington user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Kensington product will considerably shorten its lifespan!
|

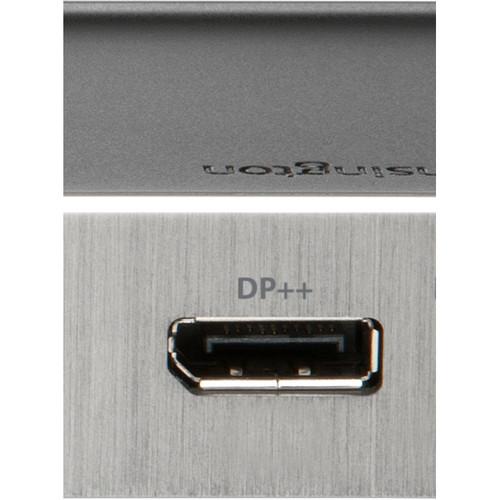

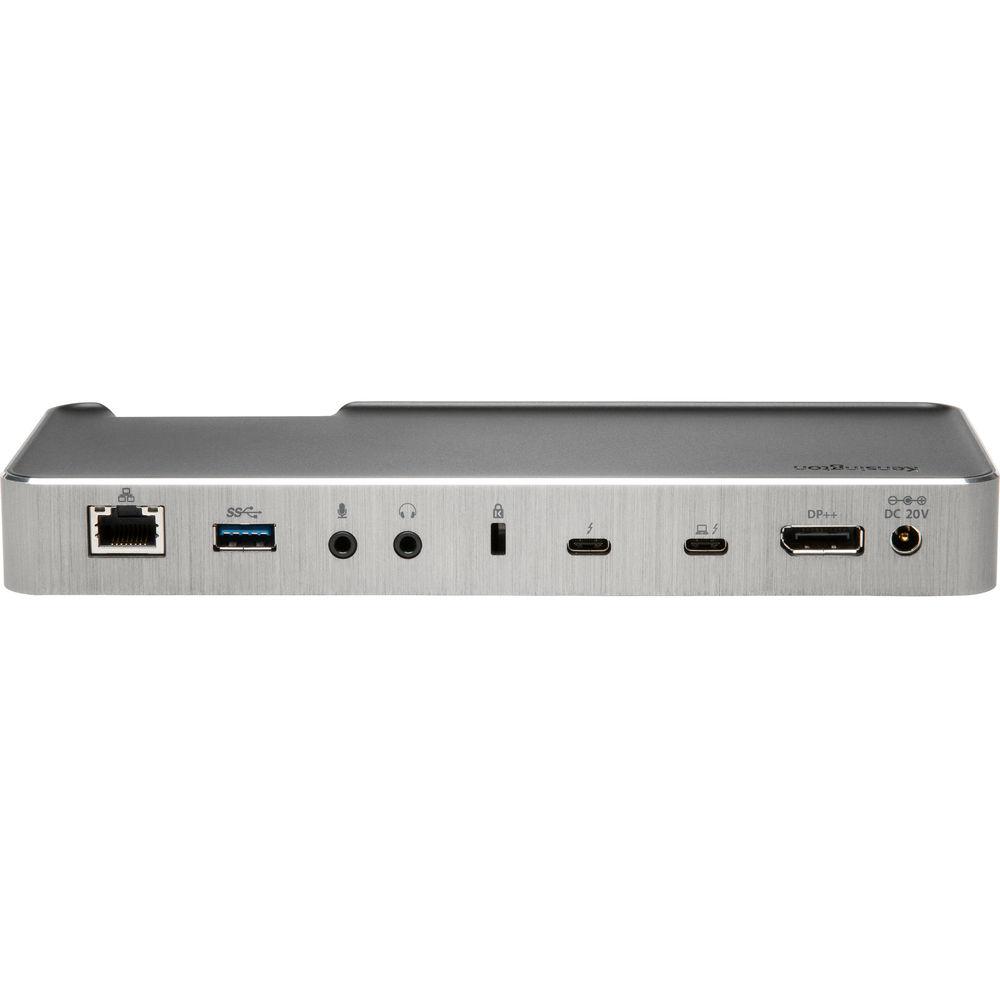

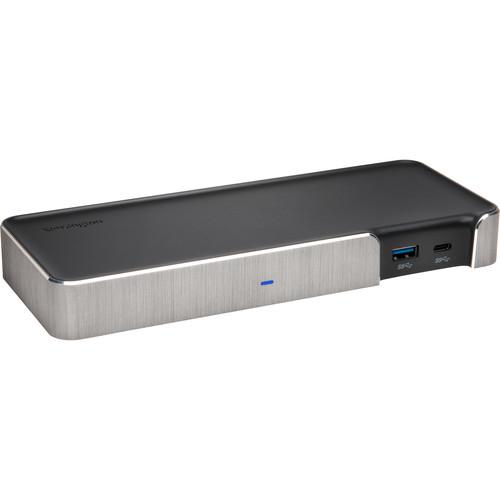

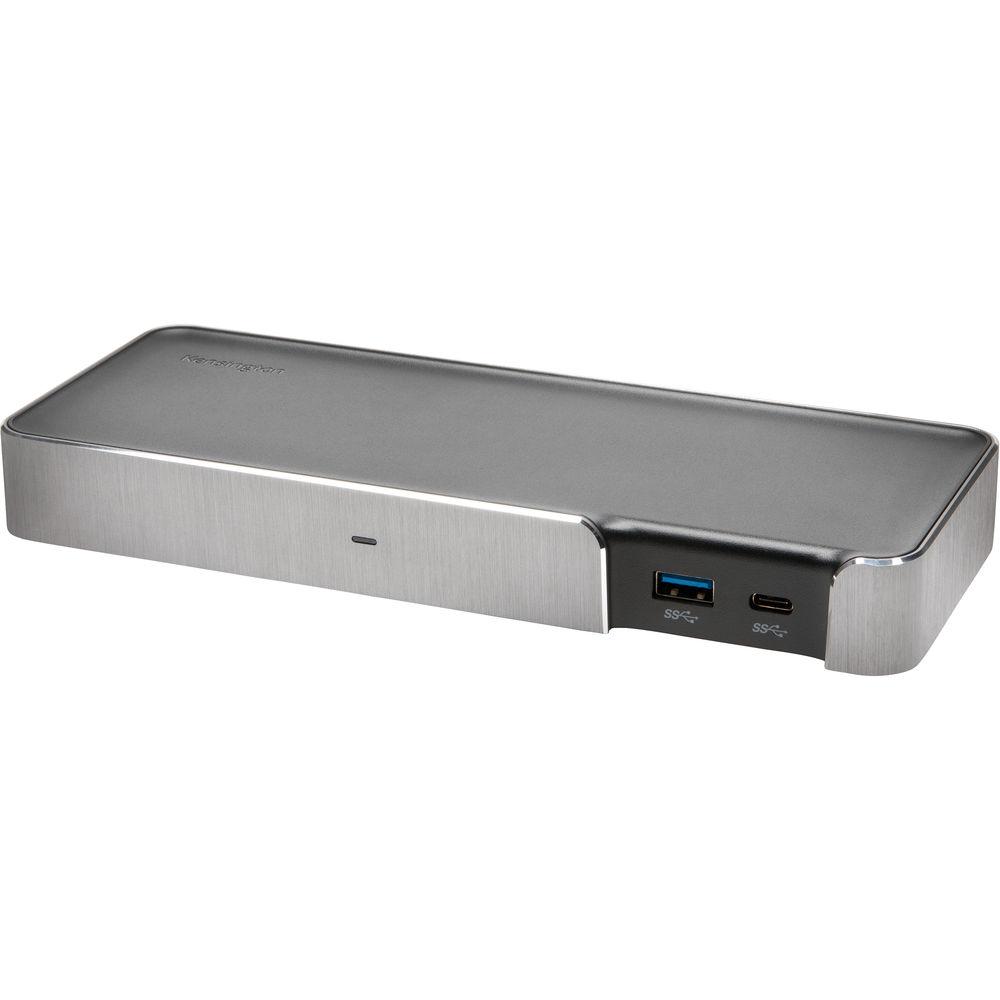

Product description Expand your connectivity options with the SD5200T Thunderbolt 3 Docking Station from Kensington. This docking station offers a wealth of connection options including one USB 3.1 Gen 1 Type-C port, dual USB 3.0 ports, dual Thunderbolt 3 ports, one DisplayPort, one RJ45 Gigabit Ethernet port, one 3.5mm audio output, and one 3.5mm audio input.
In addition to the enhanced connectivity options offered by the SD5200T dock, it is also possible to power your compatible devices from the USB Type-C and Thunderbolt 3 ports as they offer 15W and 85W of power. The Thunderbolt 3 ports support data rates of up to 40 Gb/s and enhanced display resolutions up to 5K on a single monitor and 4K in a dual-monitor setup along with the ability to daisy-chain up to 5 additional devices. The dual USB 3.0 ports make it easy to connect a variety of USB compatible peripherals to your computer, and you can even charge your mobile devices such as smartphones or tablets by connecting to 2.1A USB 3.0 port.

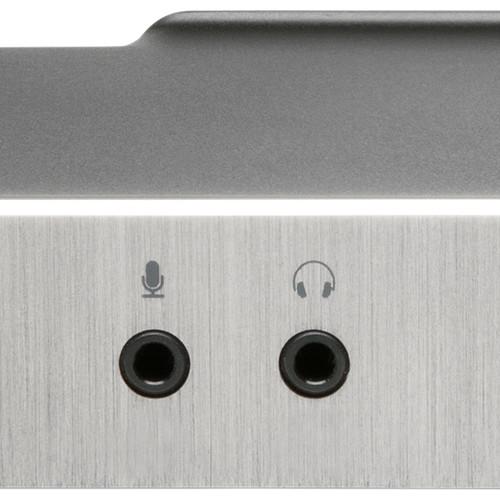

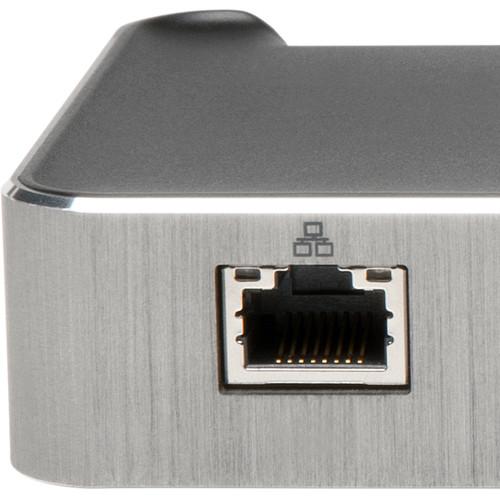

Does your computer have a network connection? Well, fear not as this Thunderbolt 3 Docking Station comes with an RJ45 Gigabit Ethernet port to connect directly to a nearby LAN. If that's not enough, you can connect your microphone and headphones to the dock and even mount the dock to the back of your monitor using a 100 x 100mm or 75 x 75mm VESA compatible mount. Once configured, the dock can be secured by attaching a compatible lock to the built-in Kensington Lock Slot. -
- Cross-Platform compatibility allows this Thunderbolt 3 dock to work for both Windows and Mac users
- Thunderbolt 3 technology allows a single port to provide up to 40 Gb/s of data speed, and connectivity to Thunderbolt-enabled devices, billions of USB devices, and UHD displays - all while supplying power
- 5K or 4K for dual monitor supports the crisp resolution, contrast, and color depth of Ultra HD via DisplayPort or HDMI (adapters sold separately)
- 85W power delivery to charge the host device (host device must be designed to support power delivery for dock to provide charging)

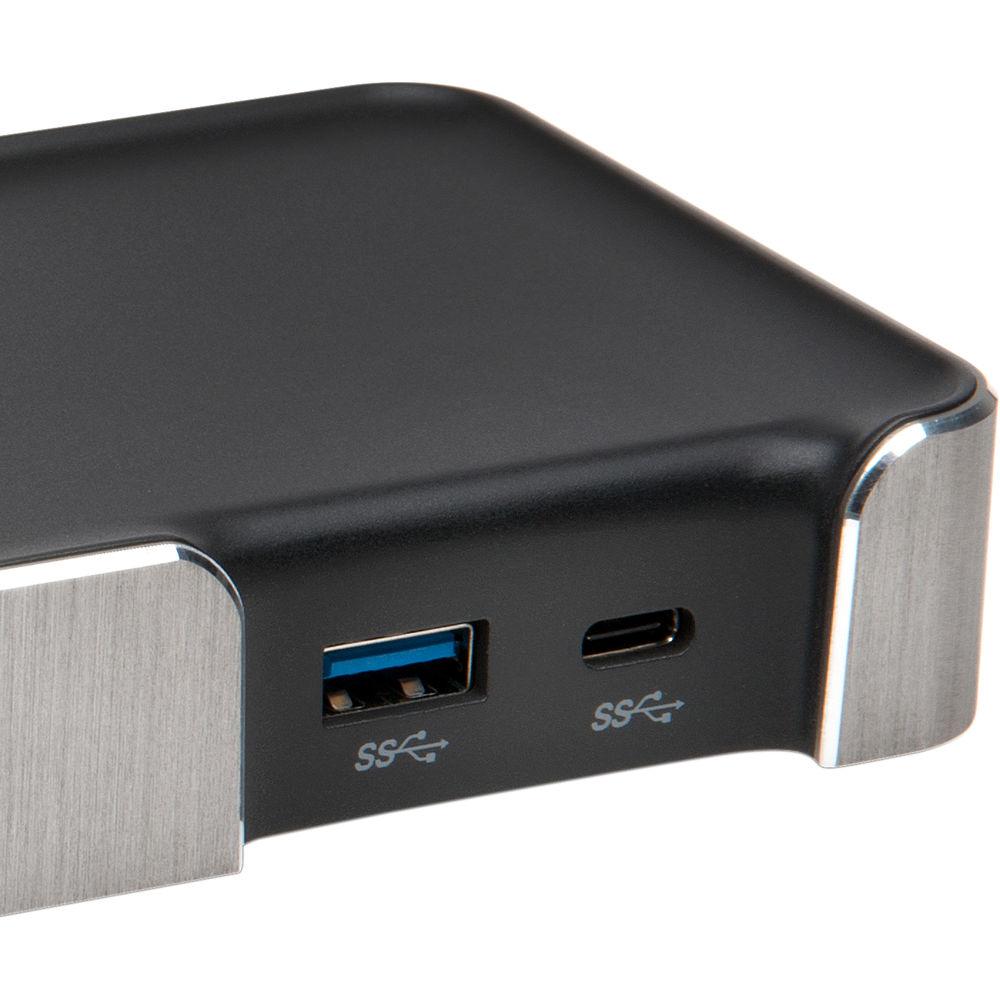

- Productivity ports connect to peripheral accessories via one USB-C 5 Gb/s port with 15W, two USB 3.0 ports (one of which is a 2.1A charging port), one DisplayPort, one Gigabit Ethernet port, and 3.5mm headphone and microphone jacks
- Daisy chaining allows connection for up to 5 additional Thunderbolt-enabled devices

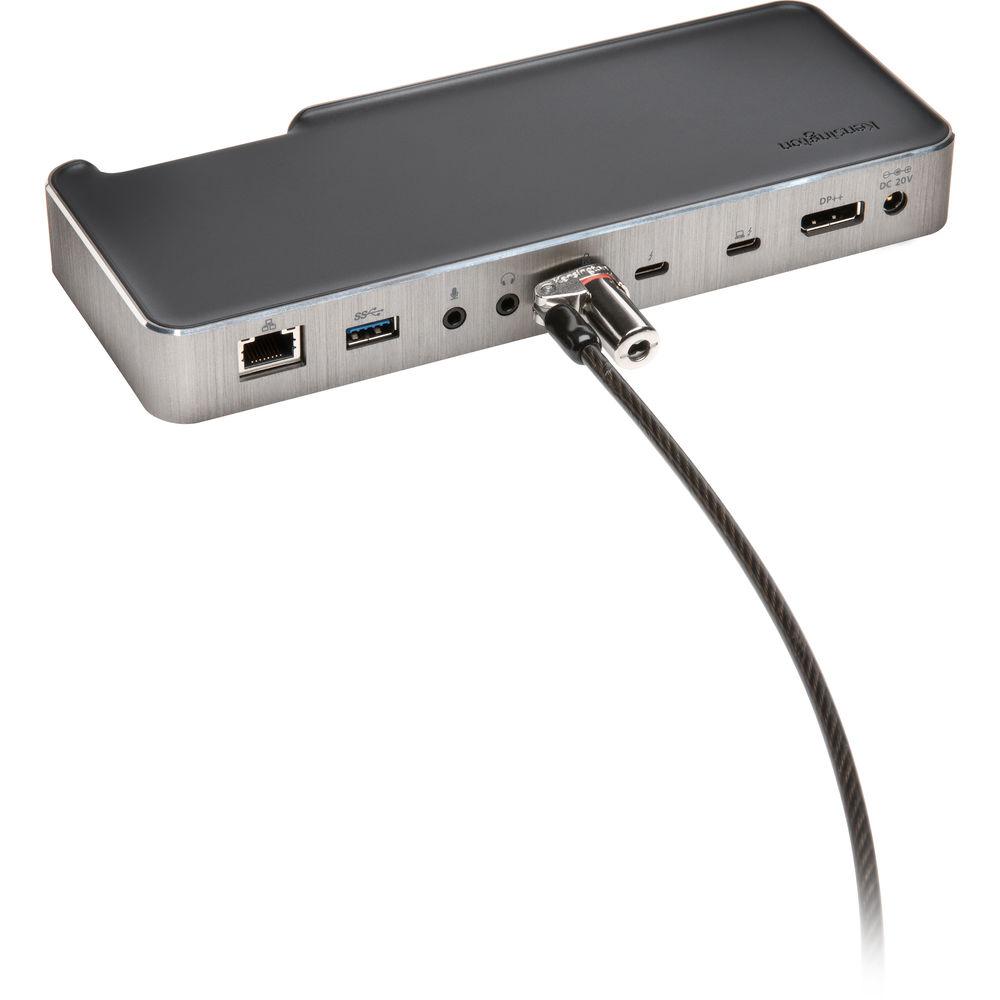

- Kensington Security Slot protects your technology investment via easy implementation of a cable lock

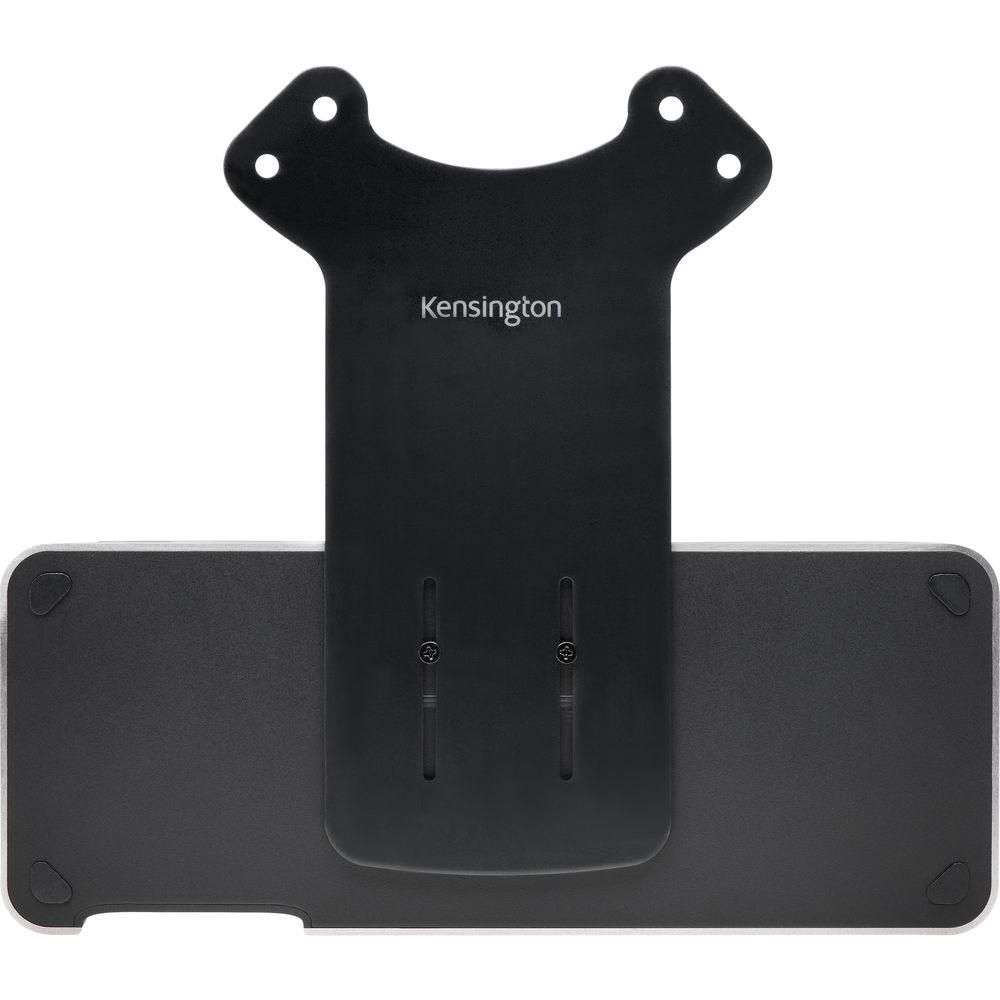

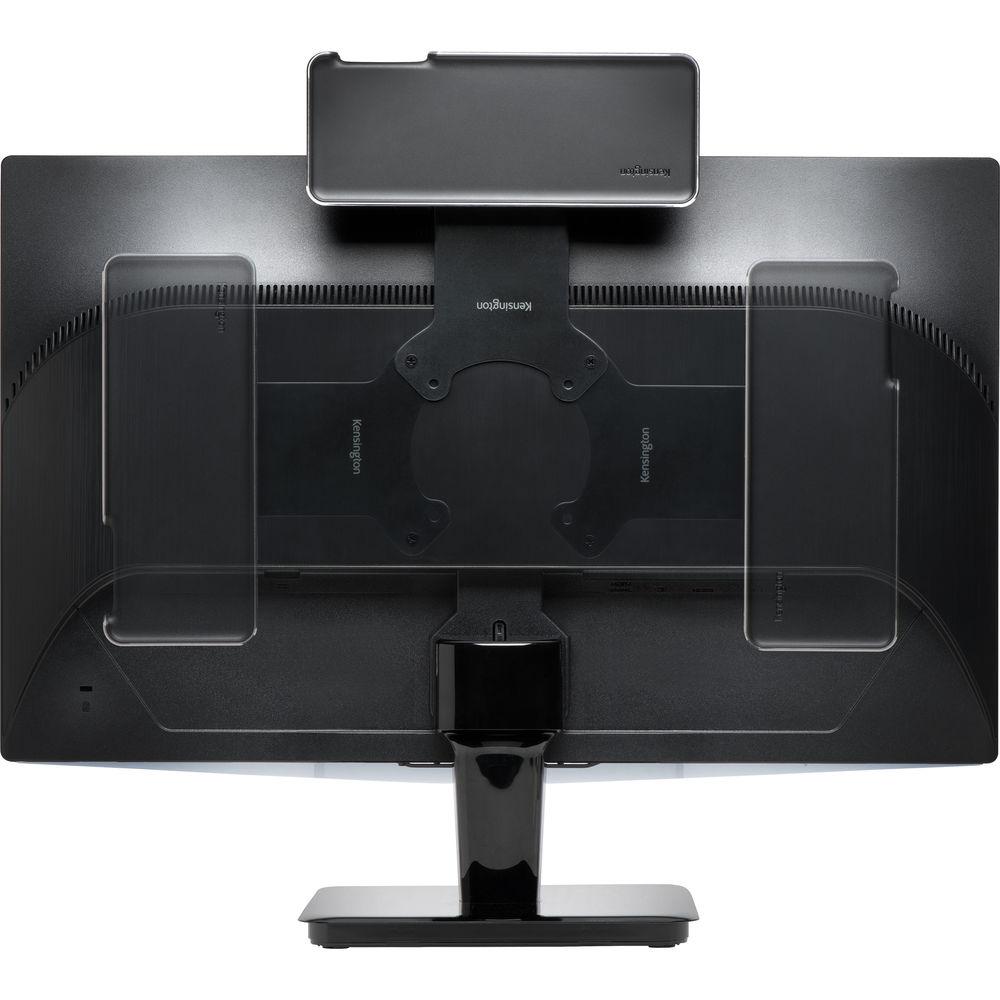

- Zero Footprint Mounting provides the option to attach the dock to the back of any VESA-compatible external display to accommodate space-challenged workspaces (mounting plate sold separately)
UPC: 085896383000 In the Box Kensington SD5200T Thunderbolt 3 Docking Station Limited 3-Year Warranty More info from Kensington dbqbexvyvv Table of Contents
|
Upload User Manual
Have you got an user manual for the Kensington SD5200T Thunderbolt 3 Docking Station in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersKensington Thunderbolt 3 Docking Station Specs | Compatibility | Mac OS X 10.12 or above
Windows 10 | | Thunderbolt Compatibility | Thunderbolt 3
(Up to 40 Gb/s data transfer speeds) | | Connections | 1 x USB 3.1 Gen 1 Type-C port
2 x Thunderbolt 3 ports (one with 85W power delivery)
2 x USB 3.0 ports
1 x DisplayPort input
1 x Gigabit Ethernet port
1 x 3.5 mm headphone jack
1 x 3.5 mm microphone jack
1 x 20 VDC power input | | Connectivity | Wired | | Daisy Chain | Connect up to 5 additional Thunderbolt devices | | VESA Mount Size | 100 x 100 mm
75 x 75 mm | | Power | Up to 15 W via USB Type-C port
Dual powered USB 3.0 ports (one is a 2.1 A charging port)
Up to 85 W power delivery to charge host device | | Security Lock Slot | Kensington security slot | | Dimensions | 1.0 x 8.6 x 3.4" / 2.5 x 21.8 x 8.6 cm | | Weight | 0.7 lb / 0.3 kg | | | | Package Weight | 3.0 lb | | Box Dimensions (LxWxH) | 17.2 x 10.1 x 5.8" |
