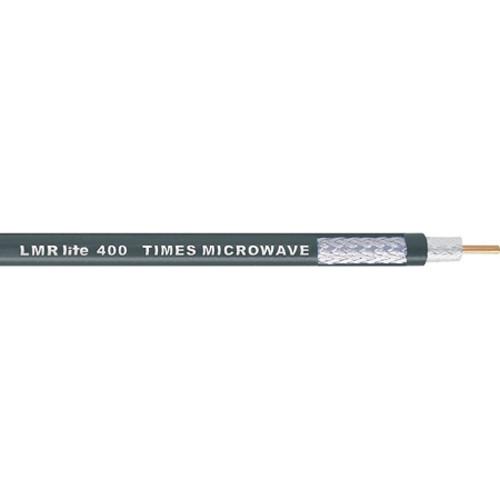

User Manual for Kenwood LMR400 Low-Loss Coaxial Transmission Line with RF Type-N Connectors Click to enlarge the picture
Contents of the user manual for the Kenwood LMR400 Low-Loss Coaxial Transmission Line
- Product category: 2-Way Radio Accessories Kenwood
- Brand: Kenwood
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Kenwood 2-Way Radio Accessories
|
User manual for the Kenwood LMR400 Low-Loss Coaxial Transmission Line contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Kenwood product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Kenwood user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Kenwood product will considerably shorten its lifespan!
|
Product description The 50' Kenwood LMR400 is a 50-Ohm coaxial transmission line offering high performance and flexible installation for commercial organizations and government agencies in indoor and outdoor applications. The cable features a copper-clad aluminum center conductor and a stranded outer conductor with a 100% foil and 88% coverage braided shield covered in dielectric polyethylene insulation. This yields enhanced interference immunity and low signal loss while allowing a 1" bending radius. RF Type-N connectors ensure easy hookup to Kenwood antennas such as the FG4500, DB404B, and DB408B (all available separately). UPC: 729198595203 In the Box Kenwood LMR400 Low-Loss Coaxial Transmission Line with RF Type-N Connectors (50') Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Kenwood LMR400 Low-Loss Coaxial Transmission Line with RF Type-N Connectors in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersKenwood LMR400 Specs | Nominal Capacitance | 23.9 pF per foot | | Impedance | 50 Ohms | | Loss | @ 50 MHz: 0.9 dB
@ 100 MHz: 1.2 dB
@ 400 MHz: 2.5 dB
@ 900 MHz: 3.9 dB
@ 1000 MHz: 4.10 dB | | Velocity of Propagation | 85% | | Connector 1 | RF Type-N | | Connector 2 | RF Type-N | | Construction Material | Center Conductor: Copper-Clad Aluminum
Insulation: Dielectric Polyethylene
Shield: 100% Foil, 88% Braided | | Cable Length | 50' / 15.2 m | | Diameter | Nominal Overall Diameter: 0.4" / 10.3 mm
Nominal Core Diameter: 0.3" / 7.2 mm
Center Conductor: 0.1" / 2.7 mm |
