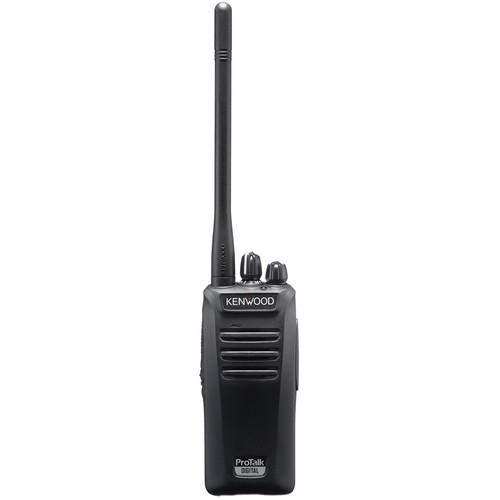

Kenwood ProTalk Digital NX-340U16P2 Compact Digital

User Manual for Kenwood ProTalk Digital NX-340U16P2 Compact Digital Analog 32-Channel Portable Radio

• Product category: 2-Way Radios Kenwood
• Brand: Kenwood
• Description and content of package
• Technical information and basic settings
• Frequently asked questions – FAQ
• Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
• Authorized service for Kenwood 2-Way Radios

Product description

Switchable Digital and Analog Dual Modes
• The NX-340U16P2 portable radio is effectively two radios in one—analog and digital—operating on 12.5 kHz in analog zones, and on 6.25 kHz NXDN in digital zones. For convenience, a PF key can be used to switch between zones.

Enhanced Clarity in Extended Coverage
• The NX-340U16P2 series radio employs NXDN, an FDMA digital air interface with AMBE+2 voice coding technology, unique filtering, and a four-level FSK modulation technique with low-bit error rate (BER) even at weak RF signal strengths. As RF signal strength weakens with distance, analog reception becomes increasingly noisy and intermittent. NXDN's low BER improves reception in fringe areas, increasing coverage as much as 20% over analog.

Enhanced Audio Quality
• AMBE+2 VOCODER technology accurately replicates natural human speech nuances for enhanced voice quality. Additionally, the powerful 36mm-diameter speaker delivers up to 1W audio output, providing clearer and crisper audio.

Frequency and QT/DQT/RAN
• Users can program a ProTalk to any of the pre-stored frequencies, QT/DQT analog codes, RAN digital codes, thus assuring compatibility with other brands. The ProTalk digital VHF NX-240V16P/P2 16-channel model has 27 pre-stored frequencies, while the ProTalk digital UHF NX-340U16P/P2 16-channel model has 99. Both models have 39 QT tones, 168 DQT codes in analog mode, and 64 RAN codes in digital mode.

Programmable Function Keys
• Both PF Keys can be programmed for any of the many functions available, permitting customization to suit your specific requirements.

High Security
• Helping to maintain a high level of security and confidentiality in analog mode is a 16-code voice inversion scrambler. Robust NXDN encryption is available with 32,767 selectable digital modes.

Wireless Cloning
• This feature simplifies the setting up of multiple ProTalk radios for identical functions, eliminating the need to customize individual radios. (Dealer function only)

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

Kenwood ProTalk Specs

Frequencies	Pre-Set Frequencies 99 (451-470 MHz)
Channels	Number of Channels 32 Max. Channels per Zone 16 Channel Spacing Analog: 12.5 kHz Digital: 6.25 kHz
