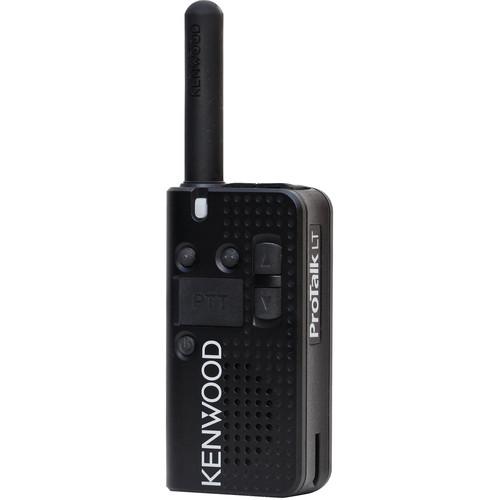

User Manual for Kenwood ProTalk LT PKT-23 Pocket-Sized UHF FM Portable 2-Way Radio Click to enlarge the picture
Contents of the user manual for the Kenwood ProTalk LT PKT-23 Pocket-Sized UHF
- Product category: 2-Way Radios Kenwood
- Brand: Kenwood
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Kenwood 2-Way Radios
|
User manual for the Kenwood ProTalk LT PKT-23 Pocket-Sized UHF contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Kenwood product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Kenwood user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Kenwood product will considerably shorten its lifespan!
|
Product description Presented in bulk packaging, the Kenwood ProTalk LT PKT-23 Pocket-Sized UHF FM Portable 2-Way Radio is for mobile communications and can be used in various businesses such as security firms, construction projects, fire and rescue patrol, and more. It features a 1.5W transmit power, four channels, a coded squelch, scan functions, an LED battery status indicator, and voice-activated transmission (via a separately available external microphone). It is built to meet or exceed IP54 and military standards 810 C/D/E/F/G (11 items) specifications, and it is designed to be business tough.This radio features a 3.5mm audio output jack and allows for hands-free operation with optional headphones. Connect the ProTalk radio to a standard micro-USB port or use the included charging cup to charge the battery. When fully charged, the radio can operate up to 15 hours. Also included are the KNB-71L Li-ion battery, a belt clip, and a 3-hour fast charger.
- Long-Distance Operating Range
-
- Operating range up to 5 miles in open areas without obstructions
- Operating range up to 1.5 miles in residential areas near buildings
- Operating range up to 225,000 square feet (20,900 square meters) in steel/concrete reinforced buildings
- Operating range up to 17 floors in high-rise buildings
- VOX Ready
- This operation allows you to transmit hands-free when using a supported headset (available separately)
- Built to Military Standards 810 C/D/E/F/G
- Designed and tested to meet the U.S. military standards approval for shock, vibration, rain, and dust, ensuring its ability to perform in rigorous work environments
- Bell Tone Alert
- You are alerted to an incoming call by the flashing LED light and a bell tone
- Battery Saver
- Activate the Battery Saver mode when operating at close range; it lowers the power level and lessens the drain on your battery
- Super Lock
- Super Lock prevents accidental operation of the transceiver keys but allows action of the PTT, squelch off, monitor, power, and volume keys
- Two PF Keys
- Both PF Keys can be programmed for any of the many functions available, permitting customization to suit your specific requirements
- Enhanced Kenwood Audio
- Delivers sound quality that is clear, crisp, and loud
- Voice Announcement
- Audibly tells you the channel number and frequency you are communicating on
- Time-Out Timer
- Prevents callers from using a channel for an extended duration (60 seconds)
- Wireless Clone
- This feature simplifies setting up multiple ProTalk radios for identical functions, eliminating the need to customize individual radios
In the Box Kenwood ProTalk LT PKT-23 Pocket-Sized UHF FM Portable 2-Way Radio (Bulk Packaging) PKT-23 1430mAh Li-ION Battery Fast Rate Single Charger For PKT-23 Radios KBH-20M Metal Belt Clip for PKT-23 Two-Way Radio (Replacement) Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Kenwood ProTalk LT PKT-23 Pocket-Sized UHF FM Portable 2-Way Radio in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersKenwood PKT-23 Specs | Frequency Range | 451 to 470 MHz | | BRS | Preset 99 Channels | | Number of Channels | 4 | | Channel Spacing | FCC Narrow Compliant 12.5 kHz | | Channel Step | 5, 6.25 kHz | | Operating Voltage | 3.8 VDC ±10% | | Battery Life | 5-5-90 Duty Cycle with KNB-71L (1430 mAh)
Approximately 11 Hours (Battery Saver Off)
Approximately 15 Hours (Battery Saver On) | | Operating Temperature Range | -14° to 140°F / -10° to 60°C | | Frequency Stability | ± 2.5 ppm (-14° to 140°F) | | Antenna Impedance | 50 Ohms | | FCC ID | ALH460300 | | FCC Compliance | Part 90 | | Receiver | Sensitivity (12 dB SINAD): Narrow 0.22 μV
Selectivity Narrow: 60 dB
Intermodulation Distortion: Narrow 50 dB
Audio Output: 300 mW with <5% Distortion | | Transmitter | RF Output Power: High 1.5 W, Low 0.5 W (ERP)
Spurious Response: 55 dB
Modulation: Narrow 11KØF3E
FM Hum & Noise Narrow: 50 dB
Audio Distortion: <5% | | Dimensions (W x H x D) | 1.8 x 3.3 x 0.8" / 4.6 x 8.5 x 2.1 cm (Excluding Projections) | | Weight | 3.9 oz / 110 g | | | | Package Weight | 1.0 lb | | Box Dimensions (LxWxH) | 6.0 x 6.0 x 0.1" |
