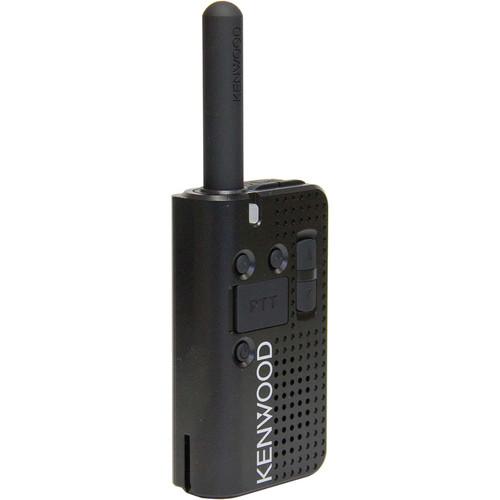

User Manual for Kenwood Protalk LT PKT-23 Pocket-Sized UHF FM Portable 2-Way Radio with 5 Six Unit Multi-Chargers Click to enlarge the picture
Contents of the user manual for the Kenwood Protalk LT PKT-23 Pocket-Sized UHF
- Product category: 2-Way Radios Kenwood
- Brand: Kenwood
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Kenwood 2-Way Radios
|
User manual for the Kenwood Protalk LT PKT-23 Pocket-Sized UHF contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Kenwood product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Kenwood user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Kenwood product will considerably shorten its lifespan!
|
Product description This black Protalk LT PKT-23 Pocket-Sized UHF FM Portable 2-Way Radio with 5 Six Unit Multi-Chargers by Kenwood is for mobile communications and can be used in various businesses such as security firms, construction projects, Fire and rescue patrol and more. The radio features a 1.5 watt transmit power, 4 channels, a coded squelch, scan functions, a led battery status indicator and a monitor. It is built to meet or exceed IP54 and military standards 810 C/D/E/F/G specifications (11 items) and is designed to be business tough. This Radio features a 3.5mm audio output jack and allows for hands free operation with optional headphones. Connect the Protalk radio to a standard micro USB port or use the included charging cup to charge the battery. When fully charged, the radio can operate for up to 15 hours. Also included are the KNB-71L Li-lon battery, belt clip and a 3-hour fast charger. This unit is sold in a bulk-pricing configuration, and user must buy at least 30 to trigger the special bulk price. - Operating Range and Conditions
- The radio operates in open areas without obstructions within up to 5 miles
This radio can operate in residential areas near buildings within up to 1.5 miles
The range in steel and/or concrete reinforced buildings is up to 225,000 sq.ft (20,900 sq.m) - VOX Ready
- This operation allows you to transmit hands-free and can only be used if you are using a supported headset.
- Built to Military Standards 810 C/D/E/F/G
- Designed and tested to meet the U.S. military standards approval for Shock, Vibration, Rain & Dust, ensuring its ability to perform in rigorous work environments.
- Bell Tone Alert
- You are alerted to an incoming call by the flashing LED light and a bell tone.
- Battery Saver
- This feature allows you to select a lower power level when range is not an issue and you can communicate easily with your group in the vicinity. This will lessen the drain on your battery and make it last longer. When you need more power, simply switch to high power.
- Super Lock
- Prevents accidental operation of the transceiver keys but still will allow action of the PTT, squelch off, monitor, power and volume keys.
- 2 PF Keys
- Both PF Keys can be programmed to any of the many functions available, permitting customization for your specific requirements.
- Enhanced Kenwood Audio
- Ensures that the ProTalk sound quality is undeniably clear, crisp and loud.
- Voice Announcement
- Audibly tells you the channel number and frequency you are communicating on.
- Time Out Timer
- Prevents callers from using a channel for an extended duration (60 seconds).
- Wireless Clone
- It allows you to copy the settings of one radio onto another, so you can save time configuring radios.
In the Box Kenwood Protalk LT PKT-23 Pocket-Sized UHF FM Portable 2-Way Radio with 5 Six Unit Multi-Chargers KNB-71L - 1,430 mAh Li-lon Battery KSC-44 - 3-Hour Fast Charger KBH-20M Metal Belt Clip for PKT-23 Two-Way Radio (Replacement) xtudsuxyabtq 5 x KMB-44K 6 Radio Multi-Charger Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Kenwood Protalk LT PKT-23 Pocket-Sized UHF FM Portable 2-Way Radio with 5 Six Unit Multi-Chargers in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Download User ManualThe user manual for the Kenwood Protalk LT PKT-23 Pocket-Sized UHF FM Portable 2-Way Radio with 5 Six Unit Multi-Chargers can be downloaded in PDF format at the link stated below.
Technical parametersKenwood PKT-23 Specs | Frequency Range | 451-470 MHz | | BRS | Preset 99 channels | | Number of Channels | 4 | | Channel Spacing | FCC Narrow compliant 12.5 kHz | | Channel Step | 5, 6.25 kHz | | Operating Voltage | 3.8 V DC ± 10% | | Battery Life | 5-5-90 duty cycle with KNB-71L (1,430 mAh)
Approx. 11 hours (Battery saver off)
Approx. 15 hours (Battery saver on) | | Operating Temperature Range | -14° to 140°F (-10° to 60°C) | | Frequency Stability | ± 2.5 ppm (-14° to 140°F) | | Antenna Impedance | 50 Ω | | FCC ID | ALH460300 | | FCC Compliance | Part 90 | | Receiver | Sensitivity (12 dB SINAD): Narrow 0.22 μV
Selectivity Narrow: 60 dB
Intermodulation Distortion: Narrow 50 dB
Audio Output: 300 mW with less than 5% distortion | | Transmitter | RF Output Power: High 1.5 W, Low 0.5 W (ERP)
Spurious Response: 55 db
Modulation: Narrow 11KØF3E
FM HUM & Noise Narrow: 50 dB
Audio Distortion: Less than 5% | | Dimensions (W x H x D) | Radio with KNB-71L: 1.8 x 3.3 x 0.8" (46.0 x 85.0 x 21.0 mm)
Projections not included | | Weight | 3.9 oz (110 g) |
