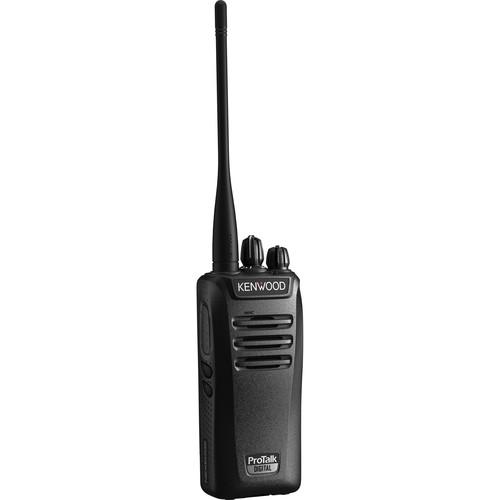

User Manual for Kenwood ProTalk NX-240V16P VHF Digital Analog 5W 16-Ch Portable Radio Click to enlarge the picture
Contents of the user manual for the Kenwood ProTalk NX-240V16P VHF Digital Analog
- Product category: 2-Way Radios Kenwood
- Brand: Kenwood
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Kenwood 2-Way Radios
|
User manual for the Kenwood ProTalk NX-240V16P VHF Digital Analog contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Kenwood product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Kenwood user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Kenwood product will considerably shorten its lifespan!
|
Product description Achieve clear, secure two-way communication with the compact and rugged Kenwood ProTalk NX-240V16P VHF Digital/Analog 5W 16-Channel Portable Radio. Thanks to its dual-zone operation—switchable between 12.5 kHz in analog FM zones, or 6.25 kHz NXDN in digital zones—you can talk in a variety of environments and utilize 16 channels per zone. In either mode, you benefit from enhanced clarity and improved coverage via NXDN low BER technology, which increases coverage by up to 20% over analog, and AMBE+2 VOCODER technology, which is designed for accurate replication of human speech. For user customization, programmable function keys offer efficient access to your most commonly used functions.The NX-240V16P portable radio comes with 27 (151 to 159 MHz) preset frequencies, 39 QT tones and 168 DQT codes in analog mode, and 64 RAN codes in digital mode. Security is maintained via a 16-code voice inversion scrambler for analog mode, and NXDN encryption with 32,767 digital modes. The supplied Li-ion battery provides up to 12 hours of battery life, and may be recharged in approximately three hours with the included fast charger. - Switchable Digital and Analog Dual Modes
- The NX-240V16P portable radio is effectively two radios in one—analog and digital—operating on 12.5 kHz in analog zones, and on 6.25 kHz NXDN in digital zones. For convenience, a PF key can be used to switch between zones.
- Enhanced Clarity in Extended Coverage
- The NX-240V16P series radio employs NXDN, an FDMA digital air interface with AMBE+2 voice coding technology, unique filtering, and a four-level FSK modulation technique with low bit error rate (BER) even at weak RF signal strengths. As RF signal strength weakens with distance, analog reception becomes increasingly noisy and intermittent. NXDN's low BER improves reception in fringe areas, increasing coverage as much as 20% over analog.
- Enhanced Audio Quality
- AMBE+2 VOCODER technology accurately replicates natural human speech nuances for enhanced voice quality. Additionally, the powerful 36mm-diameter speaker delivers up to 1W audio output, providing clearer and crisper audio.
- Frequency and QT/DQT/RAN
- Users can program a ProTalk to any of the pre-stored frequencies, QT/DQT analog codes, and RAN digital codes, thus assuring compatibility with other brands. The ProTalk NX-240V16P has 27 pre-stored frequencies, 39 QT tones and 168 DQT codes in analog mode, and 64 RAN codes in digital mode.
- Programmable Function Keys
- Both PF Keys can be programmed for any of the many functions available, permitting customization to suit your specific requirements.
- High Security
- Helping to maintain a high level of security and confidentiality in analog mode is a 16-code voice inversion scrambler. Robust NXDN encryption is available with 32,767 selectable digital modes.
- Wireless Cloning
- This feature simplifies the setting up of multiple ProTalk radios for identical functions, eliminating the need to customize individual radios (dealer function only).
In the Box Kenwood ProTalk NX-240V16P VHF Digital/Analog 5W 16-Ch Portable Radio (151 to 159 MHz) KNB-45L High-Capacity Rechargeable Li-Ion Battery - 2000 Fast Rate Single Unit Charger For KNB-45L Lithium-Ion Battery KBH-10 Spring Action Belt Clip Removable Antenna Channel Stopper Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Kenwood ProTalk NX-240V16P VHF Digital Analog 5W 16-Ch Portable Radio in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersKenwood ProTalk Specs | | | Sensitivity | Digital at 6.25 kHz (3% BER): 0.25 µV
Analog (12 dB SINAD): 0.25 µV | | Selectivity | Analog at 12.5 kHz: 60 dB | | Spurious Response | Analog: 70 dB | | Audio Distortion | <10% | | Audio Output | Internal Output: 1 W / 12 Ohms
External Output: 500 mW / 8 Ohms | | | | RF Power Output | High: 5 W
Low: 1 W | | Spurious Response | 70 dB | | FM Hum and Noise | Analog: 40 dB | | Audio Distortion | <10% | | Modulation | 11K0F3E, 4K00F1E, 4K00F1D, 4K00F7W, 4K00F2D | | | | Zones | 2 (Analog/Digital) | | Channels | 32 (16 per Zone) | | Channel Spacing | Analog: 12.5 kHz
Digital: 6.25 kHz | | Frequency Band | VHF: 151 to 159 MHz | | Frequencies | 27 | | Frequency Stability |
