User Manual for Kessler Crane CineDrive Pan & Tilt Head Click to enlarge the picture
Contents of the user manual for the Kessler Crane CineDrive Pan & Tilt
- Product category: Tripods, Supports & Rigs Kessler Crane
- Brand: Kessler Crane
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Kessler Crane Tripods, Supports & Rigs
 |
User manual for the Kessler Crane CineDrive Pan & Tilt contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Kessler Crane product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Kessler Crane user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Kessler Crane product will considerably shorten its lifespan!
|

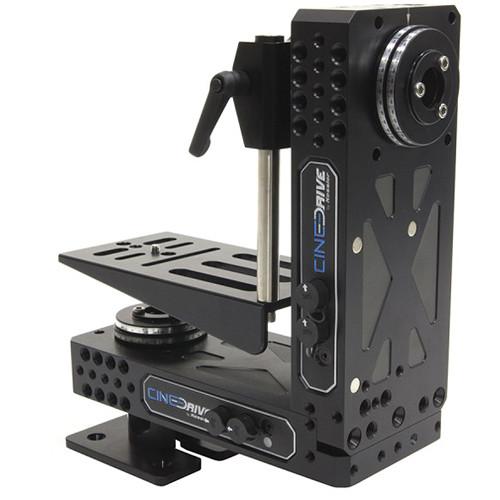

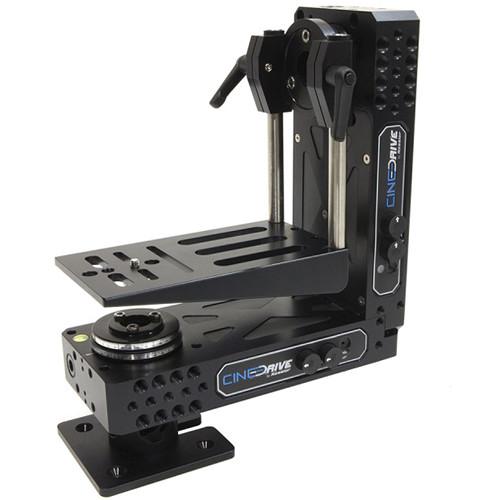

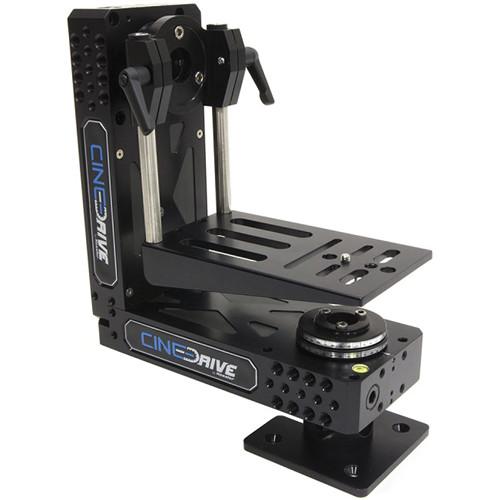

Product description The Kessler Crane CineDrive Pan & Tilt Head features a 27:1 high-speed brick pan motor and 27:1 high-speed brick tilt motor, each supporting up to 12 lb, respectively.
The 27:1 motors provide fast motions of up to 106° per second, ideal for action shots, over-cranked slow motion, or ultra-quiet operation at slower speeds. Because of the faster gearing, torque is reduced, so the max load is 12 lb (on center of gravity) in horizontal use.

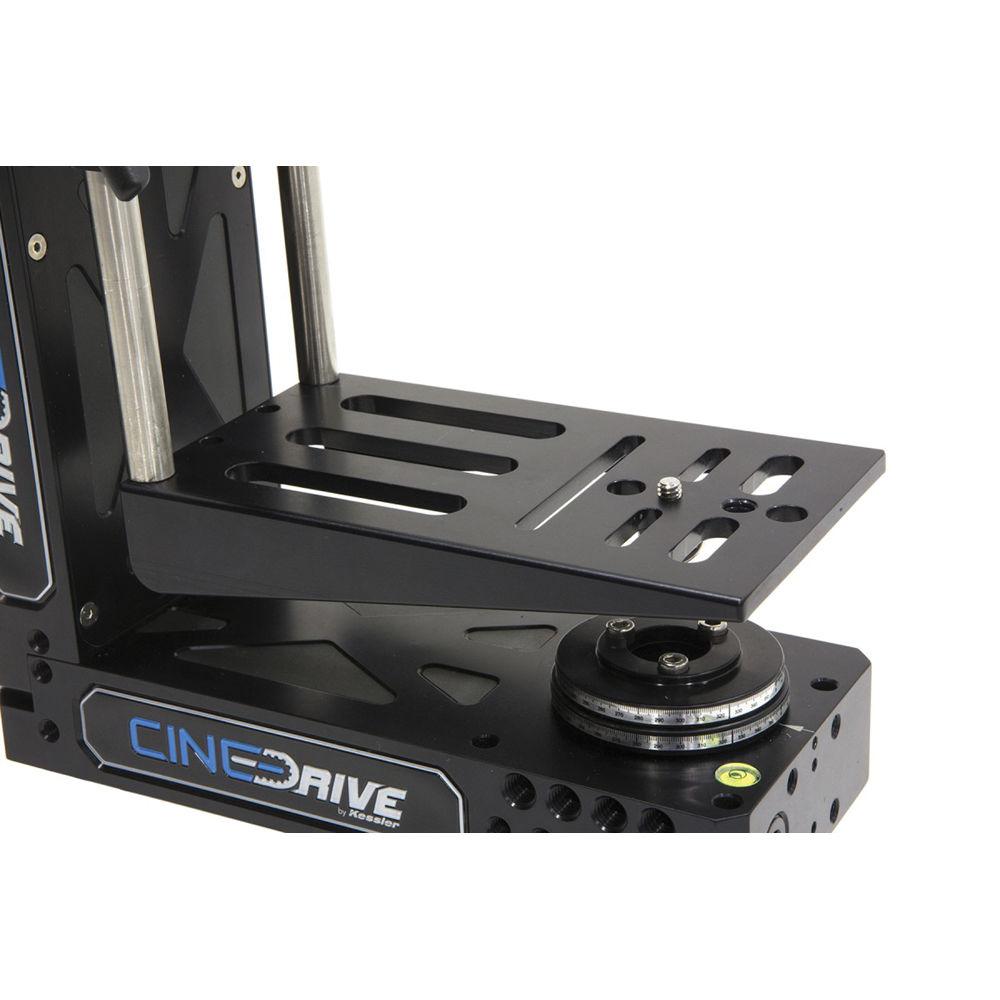

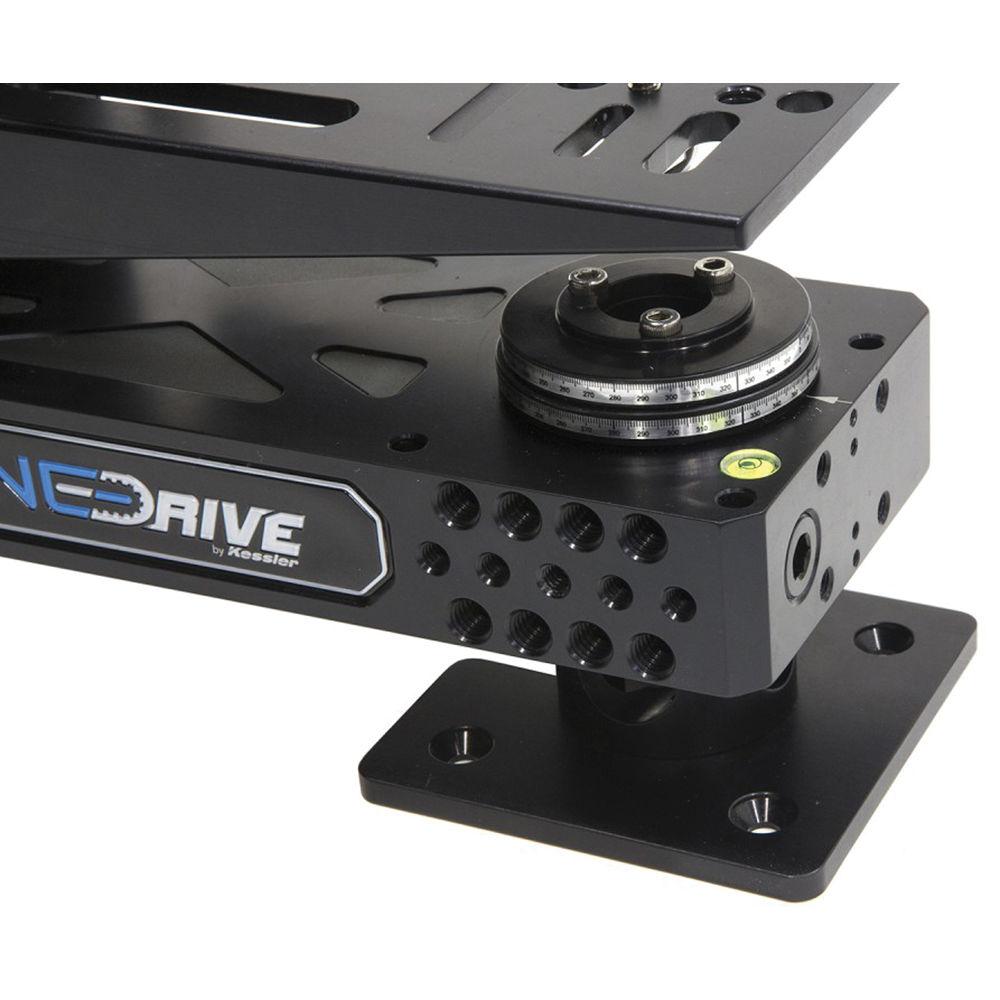

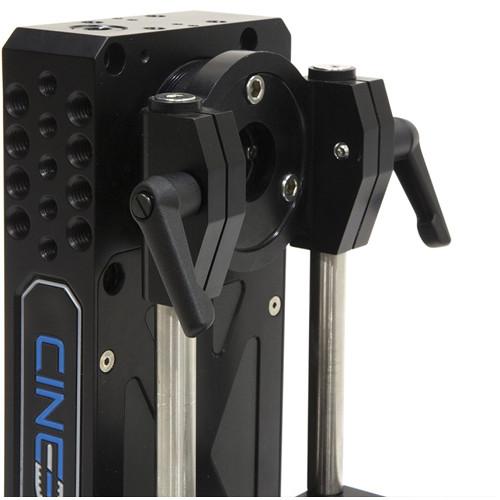

This Pan & Tilt Head uses a high-precision worm drive system that provides ultra-smooth, lash-free motion. This eliminates the need to calibrate for lash compensation and prevents the possibility of back-driven motion, ensuring safety to your camera even in case of power loss. An adjustable camera basket, used for vertical positioning, provides the center of gravity control required for vertical movement. Fixed and adjustable degree rulers, heavy-duty and weather-resistant cable connections, and a multitude of mounting holes provide the tools and flexibility that will allow for precision performance. Note: A CineDrive Motor Control Box is included as part of this Pan & Tilt Head. A CineDrive Brain, sold separately, is required for properly operating the head. - 27:1 High-Speed Brick Pan and Tilt Motors
- The 27:1 motors provide fast motions of up to 106° per second, ideal for action shots, over-cranked slow motion, or ultra-quiet operation at slower speeds. Because of the faster gearing, torque is reduced, so the max load is 12 lb (on center of gravity) in horizontal use.
In the Box Kessler Crane CineDrive Pan & Tilt Head (27:1 Pan, 27:1 Tilt) Limited 1-Year Warranty on Electronic Components Limited Lifetime Warranty on Non-Electronic Components Table of Contents
|
Upload User Manual
Have you got an user manual for the Kessler Crane CineDrive Pan & Tilt Head in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersKessler Crane CD1013 Specs | Pan Motor | 27:1 high-speed pan
Motions of up to 106°/sec
Loads up to 12 lb (5.4 kg) CoG in horizontal use | | Tilt Motor | 27:1 High-speed tilt
Motions of up to 106°/sec
Loads up to 12 lb (5.4 kg) CoG in horizontal use | | | | Package Weight | 13.35 lb | | Box Dimensions (LxWxH) | 18.4 x 14.7 x 12.6" |
