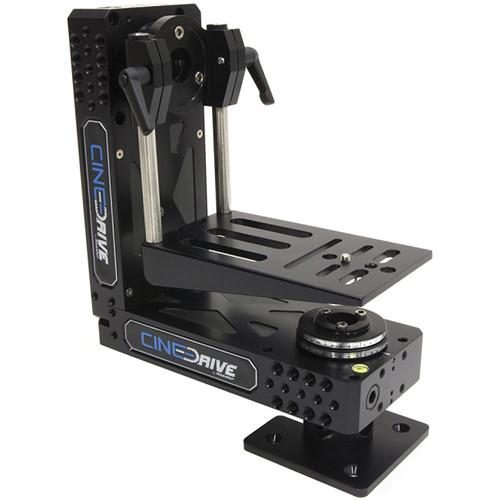

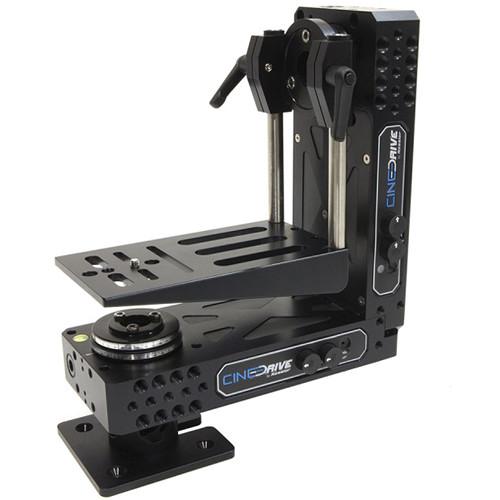

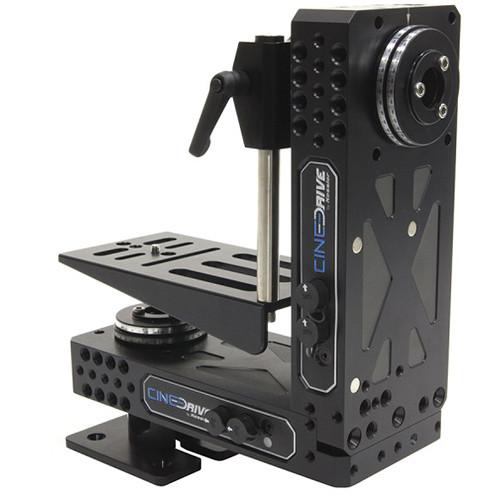

Product description This Kessler Crane CineDrive Pan & Tilt Head features a 27:1 high speed brick pan motor and 50:1 high torque brick tilt motor, supporting up to 12 lb and 25 lb, respectively.
The 27:1 pan motor provides fast motions of up to 106° per second, ideal for action shots, over-cranked slow-motion, or ultra-quiet operation at slower speeds. Because of the faster gearing, torque is reduced, so the max load is 12 lb (on center of gravity) in horizontal use.
The 50:1 tilt motor provides nearly twice the torque of the 27:1 tilt motor and is recommended for when the Pan & Tilt head is used at an incline on a slider. Increased gear reduction results in motions of 54° per second and the ability to handle up to 25 lb loads (on center of gravity).

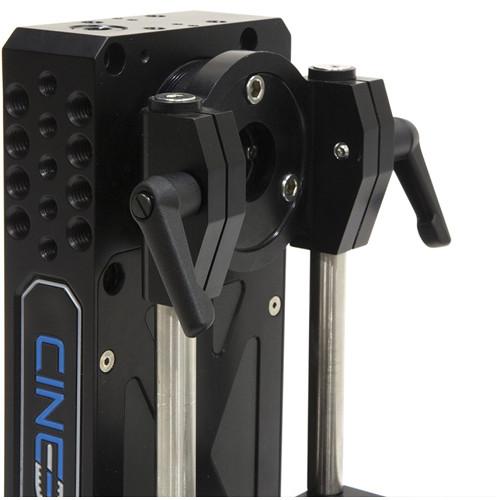

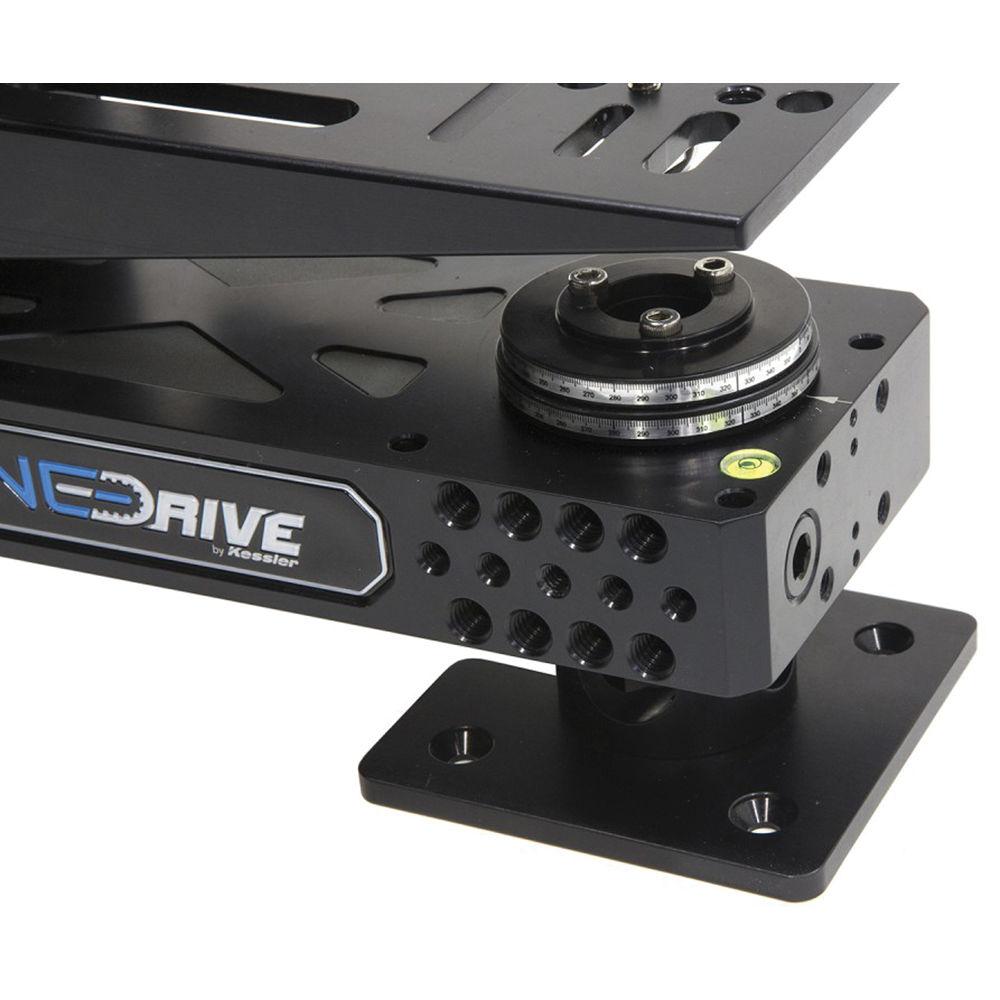

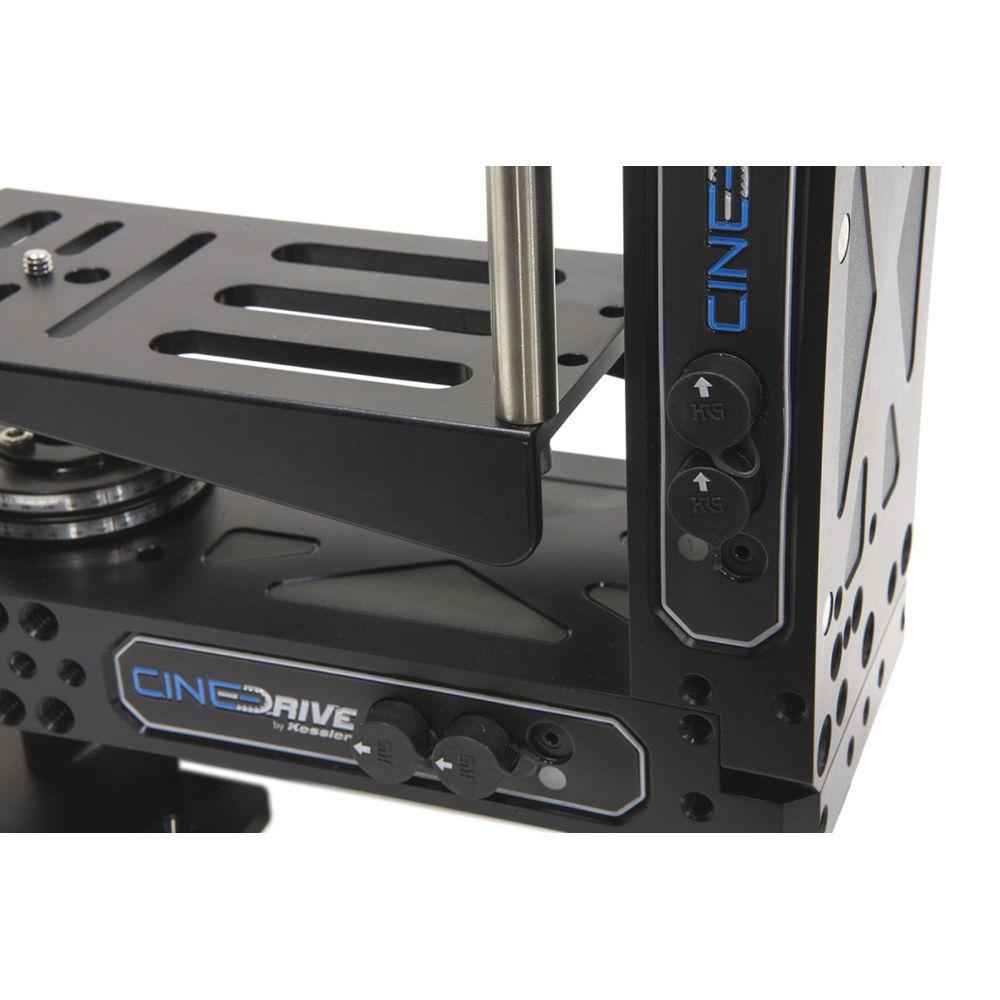

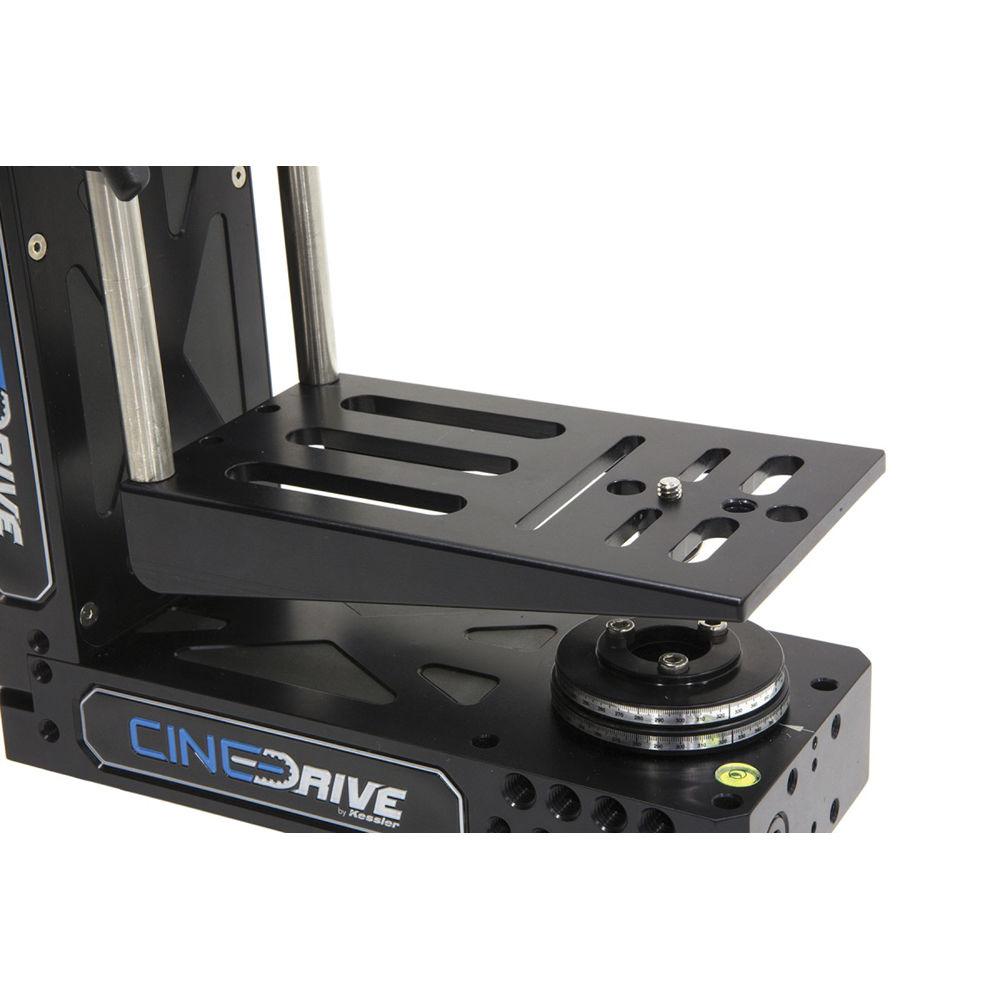

This Pan & Tilt Head uses a high-precision worm drive system that provides ultra-smooth, lash free motion. This eliminates the need to calibrate for lash compensation and prevents the possibility of back-driven motion, ensuring safety to your camera even in case of power loss. An adjustable camera basket, used for vertical positioning, provides the center of gravity control required for vertical movement. Fixed and adjustable degree rulers, heavy duty and weather resistant cable connections, and a multitude of mounting holes provide the tools and flexibility that will allow for precision performance. Note: A CineDrive Motor Control Box is included as part of this Pan & Tilt Head. A CineDrive Brain, sold separately, is required for properly operating the head. - 27:1 High Speed Brick Pan Motor
- Provides fast motions of up to 106° per second, ideal for action shots, over-cranked slow-motion, or ultra-quiet operation at slower speeds. Because of the faster gearing, torque is reduced, so the max load is 12 lb (on center of gravity) in horizontal use.
- 50:1 High Torque Brick Tilt Motor
- Provides nearly twice the torque of the 27:1 tilt motor and is recommended for when the Pan & Tilt head is used at an incline on a slider. Increased gear reduction results in motions of 54° per second and the ability to handle up to 25 lb loads (on center of gravity).
In the Box Kessler Crane CineDrive Pan & Tilt Head (27:1 Pan, 50:1 Tilt) Limited 1-Year Warranty on Electronic Components Limited Lifetime Warranty on Non-Electronic Components Table of Contents
|
Upload User Manual
Have you got an user manual for the Kessler Crane CineDrive Pan & Tilt Head in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersKessler Crane CD1045 Specs | Pan Motor | 27:1 high speed pan
Motions of up to 106°/sec
Loads up to 12 lb (5.4 kg) CoG in horizontal use | | Tilt Motor | 50:1 high torque tilt
Motions of 54°/sec
Loads up to 25 lb (11.3 kg) CoG | | | | Package Weight | 13.8 lb | | Box Dimensions (LxWxH) | 18.9 x 18.3 x 12.6" |
