Product description

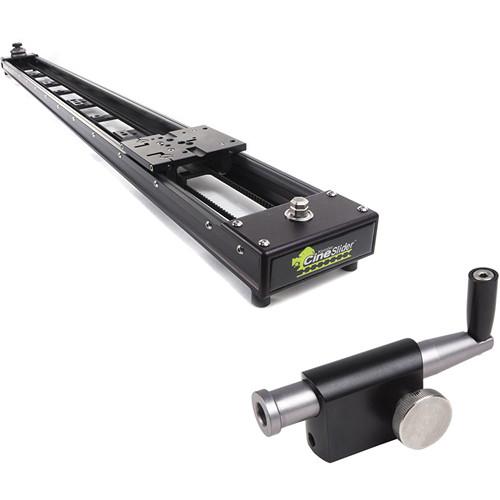

• Kessler Crane CineSlider (60.5") The Kessler Crane CineSlider is a belt-driven, heavy-duty camera slider supporting up to 80 lb. It is made of reinforced aluminum, and the slide rails are on the inside, where they're better protected from bumps and other types of impact. This model measures 60.5" and has a travel distance of 51". It is lightweight for a heavy-duty slider, weighing a portable 12 lb. This CineSlider supports 80 lb when placed on a surface or mounted on two tripods, and 25 lb when positioned vertically (25 lb is how much the robust belt can handle in that situation). This 60.5" model cannot be mounted on a single tripod. It does not come with a crank handle, but you can add an optional Kessler Crank Handle at any time.

  The CineSlider is designed with adjustable drag control, which allows you to add resistance to the movement of the slider carriage, similar to how drag control works on a tripod head. Drag control will allow for more consistency on slower slides. Additionally, the drag control knob also works as a friction brake when fully locked down.

  The CineSlider is also capable of being motorized with one of several optional Kessler Crane motorized systems, such as the elektraDRIVE, CineDrive, or Second Shooter motion control systems. It can also be enhanced with the optional Kessler Parallax, which will add a panning axis, allowing for inward and outward panning shots.
  Key Features
  • • Belt-driven, heavy-duty camera slider supporting up to 80 lb
    • 60.5" total length, 51" travel distance
    • Adjustable drag control
    • Friction brake
    • Reinforced aluminum construction
    • Slide rails are positioned on the inside
    • Portable at 12 lb (lightweight for a heavy-duty slider)
    • Crank handle not included, but can be added at any time
    • Compatible with Kessler Crane motorized systems and Parallax panning axis bar
• Kessler Crane CineSlider Crank Handle The CineSlider Crank Handle from Kessler Crane is a removable crank for hand-driving the pulley system on a CineSlider. It features a snap-on design for easy attachment and adjustable arc diameter for greater control of movement. To fine-tune control, simply loosen a silver tightening knob on the crank and slide the handle in or out to adjust the arc diameter.

  Note: The Crank Handle will not attach to CineSliders manufactured before spring 2014, as those models have a built-in, non-removable handle design.

• CineSlider (60.5")
• 4 x 1/4"-20 x 3/4" Socket Head
• 4 x 1/4"-20 x 1/4" Flat Head Countersunk Screw
• 4 x 1/4" Flat Metal Washers
• 4 x 1/4" x 3/4" Hex Bolt
• 4 x 1/4" Plastic Washers
• 3/16" Hex Key
• 5/32" Hex Key
• 3/8" x 3/4" Hex Head
• 3/8" Flat Metal Washer
• Limited Lifetime Warranty

• CineSlider Crank Handle tubdtzwubwscbcdu

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• Kessler Crane CineSlider (60.5")

  Load Capacity	80 lb / 36 kg (Horizontal) 25 lb / 11 kg (Vertical)
  Travel Distance	51" / 130 cm

  Body Material	Aluminum
  Track Length	60.5" / 154 cm
  Track Width	5" / 12.7 cm
  Track Height	5" / 12.7 cm
  Weight	12 lb / 5.4 kg

  Box Dimensions (LxWxH)	62.0 x 8.5 x 8.5"

• Kessler Crane CineSlider Crank Handle

  Box Dimensions (LxWxH)	5.827 x 3.543 x 1.654"
