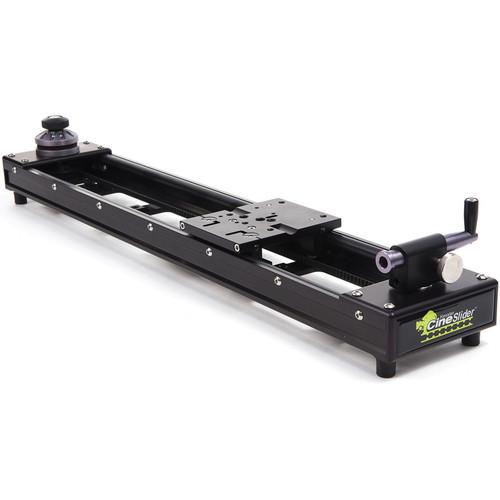

Product description The Kessler Crane CineSlider Traveler is the most portable CineSlider, measuring 28.5" end-to-end and featuring 19" of travel distance. The CineSlider is a belt-driven, heavy-duty camera slider supporting up to 80 lb. It is made of reinforced aluminum, and the slide rails are on the inside where they're better protected from bumps and other types of impact. It is lightweight for a heavy-duty slider, weighing a portable 7.7 lb. This CineSlider comes with a removable crank handle which lets you hand-drive the belt system, and the arc diameter of the handle is adjustable. The more you increase the arc, the more precise your turns will be. This CineSlider supports 80 lb when placed on a surface, 35 lb when mounted on a tripod, and 25 lb when positioned vertically (25 lb is how much the robust belt can handle when the slider is positioned vertically).
The CineSlider is designed with adjustable drag control, which allows you to add resistance to the movement of the slider carriage, similar to how drag control works on a tripod head. Drag control will allow for more consistency on slower slides. Additionally, the drag control knob works as a friction brake when fully locked down.
The CineSlider is also capable of being motorized with one of several optional Kessler Crane motorized systems, such as the elektraDRIVE, CineDrive, or Second Shooter motion control systems. It can also be enhanced with the optional Kessler Parallax, which adds a panning axis and allows for inward and outward panning shots. - Key Features
-
- Belt-driven, heavy-duty camera slider supporting up to 80 lb
- 28.5" Total length, 19" travel distance
- Includes removable crank handle with adjustable arc diameter
- Adjustable drag control
- Friction brake
- Reinforced aluminum construction
- Slide rails positioned on the inside
- Portable at 7.7 lb (lightweight for a heavy-duty slider)
- Compatible with Kessler Crane motorized systems and Parallax panning axis bar
In the Box Kessler Crane CineSlider Traveler with Crank Handle (28.5") 4 x 1/4"-20 x 3/4" Socket Head 4 x 1/4"-20 x 1/4" Flat-Head Countersunk Screw 4 x 1/4" Flat Metal Washers 4 x 1/4" x 3/4" Hex Bolt 4 x 1/4" Plastic Washers 3/16" Hex Key 5/32" Hex Key 3/8" x 3/4" Hex Head 3/8" Flat Metal Washer Limited Lifetime Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Kessler Crane CineSlider Traveler with Crank Handle in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersKessler Crane CS1001 Specs | | | Load Capacity | 80 lb / 36 kg (Horizontal Surface-Mounted)
80 lb / 36 kg (Dual-Tripod-Mounted)
35 lb / 16 kg (Tripod-Mounted)
25 lb / 11 kg (Vertical) | | Travel Distance | 19" / 48.3 cm | | | | Body Material | Aluminum | | Track Length | 28.5" / 72.4 cm | | Weight | 7.7 lb / 3.5 kg | | | | Package Weight | 10.5 lb | | Box Dimensions (LxWxH) | 32.0 x 8.0 x 5.5" |
