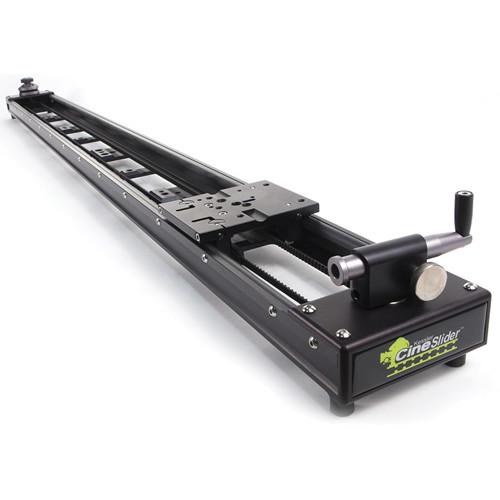

Product description The Kessler Crane CineSlider is a belt-driven, heavy-duty camera slider supporting up to 80 lb. It is made of reinforced aluminum, and the slide rails are on the inside where they're better protected from bumps and other types of impact. This model measures 60.5" and has a travel distance of 51". It is lightweight for a heavy-duty slider, weighing a portable 12 lb. This CineSlider comes with a removable crank handle which lets you hand-drive the belt system, and the arc diameter of the handle is adjustable. The more you increase the arc, the more precise your turns will be. This CineSlider supports 80 lb when placed on a surface or mounted on two tripods, and 25 lb when positioned vertically (25 lb is how much the robust belt can handle when the slider is positioned vertically). This 60.5" model cannot be mounted on a single tripod.
The CineSlider is designed with adjustable drag control, which allows you to add resistance to the movement of the slider carriage, similar to how drag control works on a tripod head. Drag control will allow for more consistency on slower slides. Additionally, the drag control knob also works as a friction brake when fully locked down.
The CineSlider is also capable of being motorized with one of several optional Kessler Crane motorized systems, such as the elektraDrive, CineDrive, or Second Shooter motion control systems. It can also be enhanced with the optional Kessler Parallax, which will add a panning axis, allowing for inward and outward panning shots. - Key Features
-
- Belt-driven, heavy-duty camera slider supporting up to 80 lb
- 60.5" total length, 51" travel distance
- Includes removable crank handle with adjustable arc diameter
- Adjustable drag control
- Friction brake
- Reinforced aluminum construction
- Slide rails positioned are on the inside
- Portable at 12 lb (lightweight for a heavy-duty slider)
- Compatible with Kessler Crane motorized systems and Parallax panning axis bar
In the Box Kessler Crane CineSlider with Crank Handle (60.5") 4 x 1/4"-20 x 3/4" Socket Head 4 x 1/4"-20 x 1/4" Flat Head Countersunk Screw 4 x 1/4" Flat Metal Washers 4 x 1/4" x 3/4" Hex Bolt 4 x 1/4" Plastic Washers 3/16" Hex Key 5/32" Hex Key 3/8" x 3/4" Hex Head 3/8" Flat Metal Washer Limited Lifetime Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Kessler Crane CineSlider with Crank Handle in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersKessler Crane CS1003 Specs | Length | 60.5" (154 cm) | | Travel Distance | 51" (130 cm) | | Load Capacity | Up to 80 lb (36 kg) when surface-mounted or mounted on two tripods
Up to 25 lb when positioned vertically
*This 60.5" model cannot be mounted on one tripod | | Material | Reinforced aluminum | | Dimensions | 60.5 x 5 x 5" (154 x 12.7 x 12.7 cm) | | Weight | 12 lb (5.4 kg) | | | | Package Weight | 17.55 lb | | Box Dimensions (LxWxH) | 63.0 x 9.0 x 8.5" |
