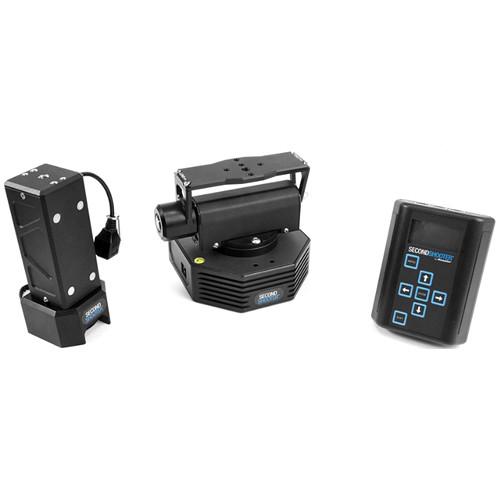

Product description

• Second Shooter Controller The brain of the Second Shooter system, the Kessler Crane Second Shooter Controller lets you connect the system's slider, pan, and tilt axes via Cat5 cables and control them remotely.
• Second Shooter Slider Motor The Kessler Crane Second Shooter Slider Motor is a pulley system motor for the Kessler Crane CineSlider, Philip Bloom Slider, and Stealth Slider. It features a quick-change pulley system on the bottom that eliminates the need for additional motors. You can choose between Fast, Normal, and Slow motor speeds by arranging the proper combination of motor pulleys. A small size extra pulley is included.

  A Second Shooter Controller is required to operate the Slider Motor. A compatible Kessler Crane Motor Mount is required to attach the Slider Motor to a slider. The Controller and Motor Mounts are sold separately.
• SS2005 Pan & Tilt Head for Second Shooter The SS2005 Pan & Tilt Head for Second Shooter from Kessler Crane is a base pan & tilt head which enables you to add axes to your one-axis slider system and can be used with a variety of other Kessler tripod accessories. The head mounts via 3/8"-16 and 1/4"-20 holes on its bottom surface and is controlled by the Second Shooter Controller (sold separately) over the two included Cat5e cables.
  • 3/8"-16 and 1/4"-20 mounting holes
  • Mounts to various tripod head accessories

• AC Power Supply

• Camera Control Cable

• Camera Control Cable Extension

• Micro USB Cable

• Limited Lifetime Warranty

• CAT5 Cable

• Extra Pulley (Small Size)

• Limited 1-Year Warranty

• 2 x Cat5e Cables (6')

• Limited Lifetime Warranty

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• Second Shooter Controller

  Power Input	Input Voltage: 11.9 - 15 V Input Current: 3 A minimum
  Operating Temperature	-4 to 122°F (-20 to 50°C)
  Dimensions	5.2 x 3.8 x 1.5" (13.2 x 9.7 x 3.8 cm)
  Weight	0.5 lb (0.23 kg)

  Box Dimensions (LxWxH)	6.9 x 6.4 x 3.0"

• Second Shooter Slider Motor

  Box Dimensions (LxWxH)	7.8 x 6.7 x 3.0"

• SS2005 Pan & Tilt Head for Second Shooter

  Connection	1 x RJ45, pan control 1 x RJ45, tilt control
  Load Capacity	10 lb (4.5 kg)
  Speed	25°/s at 10 lb (4.5 kg) load
  Mounting Holes	3/8"-16 & 1/4"-20
  Operating Temperature	-4 to 122°F (-20 to 50°C)
  Dimensions	Pan Axis: 5.68 x 5.38 x 2.20" (14.4 x 13.7 x 5.6 cm) Tilt Axis: 6.91 x 2.95 x 3.33" (17.6 x 7.5 x 8.5 cm)
  Weight	Pan Axis: 3 lb (1.4 kg) Tilt Axis: 1.6 lb (0.7 kg)

  Box Dimensions (LxWxH)	10.7 x 10.2 x 9.9"
