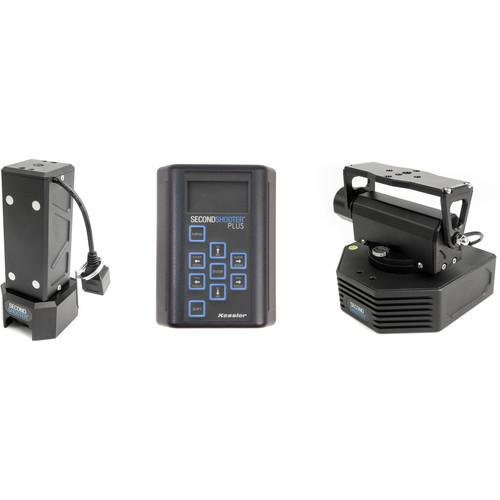

User Manual for Kessler Crane Second Shooter Plus Slide, Pan, Tilt System with Controller Click to enlarge the picture
Contents of the user manual for the Kessler Crane Second Shooter Plus Slide,
- Product category: Tripods, Supports & Rigs Kessler Crane
- Brand: Kessler Crane
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Kessler Crane Tripods, Supports & Rigs
|
User manual for the Kessler Crane Second Shooter Plus Slide, contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Kessler Crane product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Kessler Crane user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Kessler Crane product will considerably shorten its lifespan!
|
Product description This bundle of components creates the Kessler Crane Second Shooter Plus Slide, Pan, Tilt System with Controller, which when mounted on a compatible slider (not included) creates a three-axis, motorized, programable and repeatable system. It includes a Second Shooter Plus motion controller and a motor unit for slide, as well as a pan-and-tilt unit. Compatible sliders include the Kessler Crane CineSlider, Philip Bloom Slider, and Stealth Slider. Please note that a required motor mount is not included as it will vary depending on your slider, so you will have to source one separately.
The speed of the slider motor is controlled by the arrangement of motor pulleys. The pan-and-tilt head is a two-axis, controllable system. Both the slider motor and pan-and-tilt head can be controlled simultaneously by the included programmable controller. The system uses Ethernet cable to provide control and communication. - Second Shooter Slider Motor The Kessler Crane Second Shooter Slider Motor is a pulley system motor for the Kessler Crane CineSlider, Philip Bloom Slider, and Stealth Slider. It features a quick-change pulley system on the bottom that eliminates the need for additional motors. You can choose between Fast, Normal, and Slow motor speeds by arranging the proper combination of motor pulleys. A small size extra pulley is included.
A Second Shooter Controller is required to operate the Slider Motor. A compatible Kessler Crane Motor Mount is required to attach the Slider Motor to a slider. The Controller and Motor Mounts are sold separately. - SS2005 Pan & Tilt Head for Second Shooter The SS2005 Pan & Tilt Head for Second Shooter from Kessler Crane is a base pan & tilt head which enables you to add axes to your one-axis slider system and can be used with a variety of other Kessler tripod accessories. The head mounts via 3/8"-16 and 1/4"-20 holes on its bottom surface and is controlled by the Second Shooter Controller (sold separately) over the two included Cat5e cables.
- 3/8"-16 and 1/4"-20 mounting holes
- Mounts to various tripod head accessories
- Controller for Second Shooter Plus Motion Control System
In the Box Bundle Items Second Shooter Slider Motor vvdreytvyecvursssatfuryrssxu - Extra Pulley (Small Size)
Controller for Second Shooter Plus Motion Control System SS2005 Pan & Tilt Head for Second Shooter - Limited Lifetime Warranty
Table of Contents
|
Upload User Manual
Have you got an user manual for the Kessler Crane Second Shooter Plus Slide, Pan, Tilt System with Controller in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - Second Shooter Slider Motor
| | | Box Dimensions (LxWxH) | 7.8 x 6.7 x 3.0" | - Controller for Second Shooter Plus Motion Control System
| | | Box Dimensions (LxWxH) | 7.7 x 6.7 x 3.0" | - SS2005 Pan & Tilt Head for Second Shooter
| Connection | 1 x RJ45, pan control
1 x RJ45, tilt control | | Load Capacity | 10 lb (4.5 kg) | | Speed | 25°/s at 10 lb (4.5 kg) load | | Mounting Holes | 3/8"-16 & 1/4"-20 | | Operating Temperature | -4 to 122°F (-20 to 50°C) | | Dimensions | Pan Axis: 5.68 x 5.38 x 2.20" (14.4 x 13.7 x 5.6 cm)
Tilt Axis: 6.91 x 2.95 x 3.33" (17.6 x 7.5 x 8.5 cm) | | Weight | Pan Axis: 3 lb (1.4 kg)
Tilt Axis: 1.6 lb (0.7 kg) | | | | Box Dimensions (LxWxH) | 10.7 x 10.2 x 9.9" |
