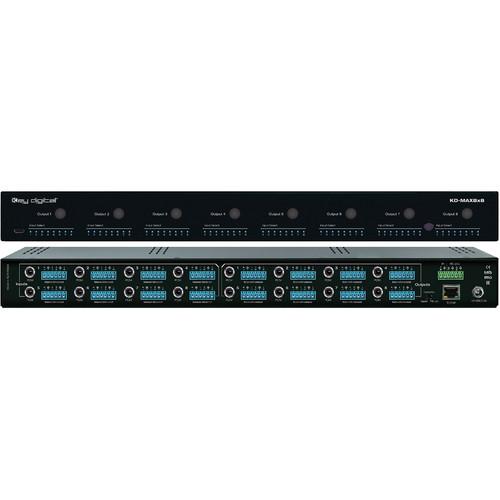

Product description The Key-Digital 24x24 Audio Matrix Switcher with Built-In Audio DSP is a custom-built kit consisting of 9 KD-MAX8x8 switcher units. The switcher comes wired together with a single, long cable, and with the input and output configuration already set up.
The single 8x8 units are designed as ideal matrix switchers for playing audio in a bar or restaurant. Featuring 8 balanced/unbalanced Phoenix inputs, 8 RCA SPDIF inputs, and corresponding outputs, the 8x8 units are capable of sending an audio source to multiple independent or grouped audio zones, allowing the audience to listen to a single, clear audio source. The kit configuration expands all this capability to more zones, for larger locations.
The switcher enables analog-to-digital or digital-to-analog conversion of signals, or can operate as two independent audio matrixes, one digital and one analog. Furthermore, any connected source may be selected on any output and variable signal processing levels can be applied for volume, bass, mid, treble, balance, and lip sync.
The system can be controlled using the Key Digital app or various other 3rd-party control systems (see Features section below). - Multi-Format Audio Multiplexing
-
- DSP per output for independent matrix selection
- Analog to analog matrix with DSP
- Digital to analog matrix with DSP
- Digital to digital matrix
- Analog to digital matrix
- Audio DSP
-
- Variable level settings for volume, muting, 3-band EQ, balance, and lip-sync delay per balanced output
- Audio Delay
-
- Variable level set from 0 - 170ms
- Audio Conversion
-
- Analog to digital
- Digital to analog
- Balanced or Unbalanced
-
- Input audio type may be specified per input
- Lossless Compressed Digital Audio
-
- Dolby and DTS surround sound up to 5.1-channel pass-through
- Long Cable Runs
-
- Enabled by balanced audio connection, signals may be run up to 1000'
- Control Integration
-
- TCP/IP, RS-232, and USB with full bidirectional operation, front-panel push buttons and LEDs, front/rear optical IR, and serial IR
- Control System Support
-
- Key Digital app ready (scan and detect population for pre-built GUI and TCP/IP control via the app)
- Compass Control Pro ready
- KD-Wizard ready
- Fully controllable by all IR, RS-232, and TCP/IP supported control systems via open API: AMX, Crestron, Control4, KNX, RTI, Savant, URC, Leviton, etc.
UPC: 815996020891 In the Box Key-Digital 24x24 Audio Matrix Switcher with Built-In Audio DSP (Custom-Built Kit with 9 KD-MAX8x8 Units) Power Supply for X200/X222/X411/X422 Extenders and 4x4 Matrix Switcher IR Remote Control Set of 6-Pin Terminal Blocks Rackmount Ears Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Key-Digital 24x24 Audio Matrix Switcher with Built-In Audio DSP in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersKey-Digital KD-MAX24X24KIT Specs | Input/Output | Each Unit is Designed with:
Input:
8 x Balanced/Unbalanced Line-Level Audio on 6-Pin Phoenix Terminal Blocks (Accepts 2VRMS Line Audio Input with 48 kHz Sampling Rate)
8 x RCA Female for Digital Audio in SPDIF Format (IEC 60958) (Supports Sampling Rate up to 192 kHz)
Output:
8 x Balanced/Unbalanced Line-Level Audio on 6-Pin Phoenix Terminal Blocks (Drives 2VRMS Line Audio Input with 48 kHz Sampling Rate)
8 x RCA Female for Digital Audio in SPDIF Format (IEC 60958) (Supports Sampling Rate up to 192 kHz) | | Enclosure | Metal | | Regulation | CE, RoHS, WEEE | | Rack Mount | 1 U, 1 Rack Width (Each Unit) | | Dimensions | 17.5 x 7 x 1.75" / 44.5 x 17.8 x 4.5 cm (Each Unit) | | Weight | 6 lb / 2.7 kg (Each Unit) |
