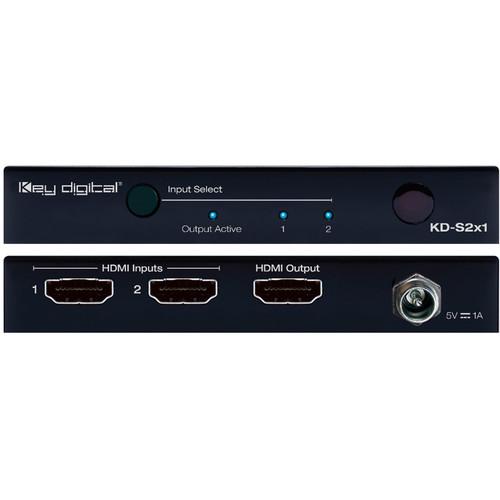

User Manual for Key-Digital 2x1 4K HDMI Switcher Click to enlarge the picture
Contents of the user manual for the Key-Digital 2x1 4K HDMI Switcher
- Product category: Routers & Switchers Key-Digital
- Brand: Key-Digital
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Key-Digital Routers & Switchers
|
User manual for the Key-Digital 2x1 4K HDMI Switcher contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Key-Digital product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Key-Digital user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Key-Digital product will considerably shorten its lifespan!
|
Product description The 2x1 4K HDMI Switcher from Key-Digital supports HDR10, HDCP2.2, and Ultra HD/4K. It features an internal library with 16 default EDID configurations for each input, including native EDID data of output/display. It supports full CEC and features front-panel push buttons and LEDs, and optical IR. With Full Buffer system, it manages TMDS re-clocking/signal re-generation, HDCP source & display authentication, hot plug management, and EDID control handshake. - Ultra HD/4K Support
- 4096 x 2160 or 3840 x 2160 at 30 Hz (4:4:4) and 60 Hz (4:4:4)
- Compressed Digital Audio
- Dolby TrueHD, Dolby Digital Plus, Dolby Atmos, and DTS-HD Master Audio
- Deep Color Support
- Up to 12-bit at UHD/4K 24/25/30 Hz (4:4:4)
- I2C Communication
- EDID and HDCP buffering from display to source
UPC: 815996020136 In the Box Key-Digital 2x1 4K HDMI Switcher Remote Control Power Adapter Mounting Brackets Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Key-Digital 2x1 4K HDMI Switcher in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersKey-Digital KD-S2X1 Specs | Inputs | HDMI type A, 19-pin female | | Output | HDMI type A, 19-pin female (each) | | Switch | Digital Switching: 2 x HDMI sources to 1 x HDMI display | | Bandwidth | 18 Gb/s TMDS | | Input DDC Signal | 5 V p-p (TTL) | | Input Video Signal | HDMI: 1.2 V p-p | | Resolution Support | SD, HD, and VESA up to UHD/4K | | Control System | Fully controllable by all IR, RS-232, and TCP/IP supported
Control systems via Open API: AMX, Crestron, KNX, RTI, Savant, URC, Leviton | | Power Supply | KD-PS5V1ASC 100-240 VAC, 50/60 Hz to 5 VDC, 1 A | | Power Connector | Interchangeable head, screw-in connector | | Certifications | CE, RoHS, WEEE | | Enclosure | Black metal | | Dimensions | 4.3 x 1.1 x 2.8" (10.9 x 2.8 x 7.1 cm) | | Weight | 8 oz (227 g) |
