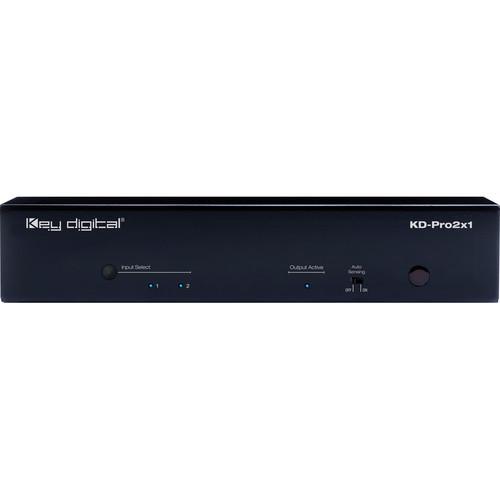

Product description The 2x1 HDMI Switcher from Key-Digital features two HDMI video inputs and one HDMI output. This switcher supports HDMI video resolutions up to 4K (4096 x 2160) at 60 Hz. The switcher will de-embed audio from the selected HDMI input through the Coax digital (PCM) or analog L/R balanced/unbalanced. It has the capability to pass 3D stereoscopic signal formats and manages TMDS re-clocking / signal re-generation, HDCP authentication to source & display, and EDID control handshake. - 2 x HDMI inputs to one HDMI output
- Fully licensed and compatible with HDCP 2.2
- Supports all SD, HD, and VESA (VGA, SVGA, XGA, WXGA, SXGA, UXGA)
- Supports 4096 x 2160 or 3840 x 2160 30/60 Hz at 4:4:4
- Supports Deep color up to UHD/4K 30 Hz 4:4:4/12-bit or 60 Hz 4:4:4/8-bit
- Capable to pass 3D stereoscopic signal formats
- Internal library with 15 default EDID handshakes for inputs, in addition to native EDID data for Output/Display
- Support for long HDMI connectivity using Key Digital HDMI cables
- Compressed digital audio Dolby TrueHD, Dolby Digital Plus, DTS-HD Master Audio, and Dolby Atmos
- Front panel buttons/LEDs, Trigger In, Serial IR, Optical IR, RS-232 Control, and TCP/IP Control
- Control system supports Key Digital App and Compass Control
- Fully controllable by all IR, RS-232, and TCP/IP supported control systems via open API: AMX, Crestron, KNX, RTI, Savant, URC, Leviton, and more
UPC: 819505002866 In the Box Key-Digital 2x1 HDMI Switcher with Audio De-Embedding (Black) Power Supply for KD-X600, X200, X411 & X611 Extenders Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Key-Digital 2x1 HDMI Switcher with Audio De-Embedding in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersKey-Digital KD-PRO2X1 Specs | Input | HDMI connector, Type-A, 19-pin female | | Output | HDMI connector, Type-A, 19-pin female | | Bandwidth | TMDS bandwidth 18 Gb/s | | DDC Signal Voltage | 5 V p-p (TTL) | | HDMI Signal Boost | Video/Audio: 1.2 V p-p | | Power Supply | KD-PS5V2ASC, 5 V / 2 A, 100 to 240 VAC, 50 to 60 Hz, interchangeable head, screw-in connector | | Regulation | CE, RoHS, WEEE | | Enclosure | Metal | | Dimensions | 8.25 x 4 x 1.7" (20.9 x 10 x 4.3 cm) | | Weight | 0.9 lb (0.4 kg) | | | | Box Dimensions (LxWxH) | 11.0 x 9.0 x 2.2" |
