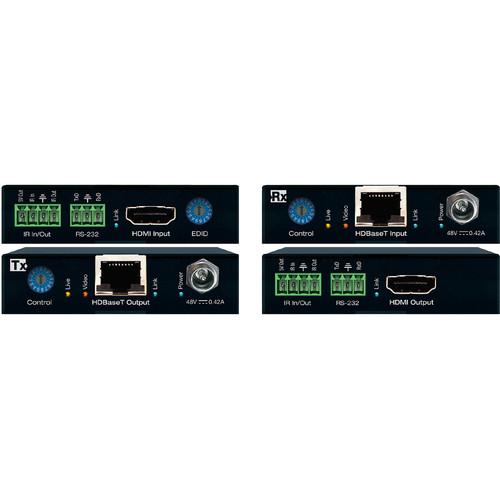

User Manual for Key-Digital 4K 18G HDBT POH Extender Click to enlarge the picture
Contents of the user manual for the Key-Digital 4K 18G HDBT POH Extender
- Product category: Video Extenders & Repeaters Key-Digital
- Brand: Key-Digital
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Key-Digital Video Extenders & Repeaters
|
User manual for the Key-Digital 4K 18G HDBT POH Extender contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Key-Digital product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Key-Digital user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Key-Digital product will considerably shorten its lifespan!
|
Product description - Key Features
-
- HDBaseT via single CAT5e/6 UTP/STP extension with fully automatic adjustment of feedback, equalization, and amplification
- 4K support
- Super slim chassis design
- Long range mode extends 1080p signals up to 500 ft. (152 m) using CAT5e/6
- HDR10 (High Dynamic Range): more life-like images through a greater range of luminance levels
- Hot Plug Detection control: enables integrator to choose if active signal voltage is forced to connected input and output devices
- Full Buffer System manages TMDS re-clocking/signal re-generation, HDCP authentication with source and display, EDID Control handshake, and Hot Plug Detection control
- IR sensor collects line-of-sight IR from remote(s) without external IR connecting block
- Lossless compressed digital audio: support for Dolby TrueHD, Dolby Digital Plus, Dolby Atmos, and DTS-HD Master Audio
Table of Contents
|
Upload User Manual
Have you got an user manual for the Key-Digital 4K 18G HDBT POH Extender in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersKey-Digital KD-X444L Specs | | | Device Type | Video/audio/infrared/serial extender | | Form Factor | External | | Color | Black | | | | Connectivity Technology | Wired | | Data Link Protocol | HDMI, HDBaseT | | Max Resolution | 4096 x 2160 @ 30 Hz | | Max Transfer Distance | 499 ft | | Features | 4K resolution support, 12-bit Deep Color support, Dolby TrueHD support, Dolby Digital Plus support, DTS-HD Master Audio support, EDID Management, 8-bit Deep Color support, Full Buffer System | | Compliant Standards | HDCP 2.2 | | | | Included Accessories | IR transmitter, IR sensor, 3-pin Phoenix connector, 4-pin Phoenix connector, 4 mounting brackets | | Compliant Standards | RoHS, WEEE, EAC | | | | Power Over Ethernet (PoE) | PoH | | Power Device | External power adapter | | Power Provided | 20 Watt | | | | Width | 4.1 in | | Depth | 2.8 in | | Height | 0.9 in | | Weight | 11.99 oz | | | | Service & Support | Limited warranty - 3 years |
Rating70% users recommend this product to others. And what about you?
This product has already been rated by 88 owners. Add your rating and experience with the product.
