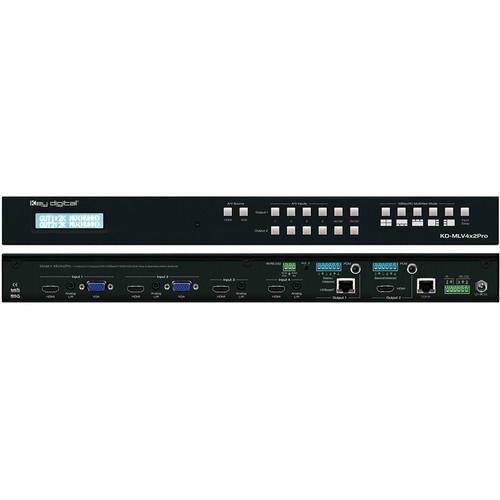

User Manual for Key-Digital 4x2 4K Multi-View Presentation Matrix Switcher Click to enlarge the picture
Contents of the user manual for the Key-Digital 4x2 4K Multi-View Presentation Matrix
- Product category: Routers & Switchers Key-Digital
- Brand: Key-Digital
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Key-Digital Routers & Switchers
|
User manual for the Key-Digital 4x2 4K Multi-View Presentation Matrix contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Key-Digital product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Key-Digital user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Key-Digital product will considerably shorten its lifespan!
|
Product description The 4x2 4K Multi-View Presentation Matrix Switcher from Key‑Digital is a seamless multi-format video matrix with UHD/4K resolution, up-scaling, multi-view window processing, audio de-embedding, independent audio from video matrix selection, and HDCP 2.2 compliance. It creates and stores custom multi-view layouts and recall custom presets in 1080p (2K) multi-view mode. The HDMI and HDBaseT outputs are independent in full-screen and quad-screen modes. It is designed to fit a variety of professional video installation and live event needs. The switcher is suitable for digital signage, video wall, conference & board room, huddle spaces, home theater, and bar/restaurant applications. - Create & store custom multi-view layouts and recall custom presets in 1080p (2K) multi-view mode
- Quadrant Mode (4K or 2K): Independent outputs in four equally-sized windows
- Multi-view Mode (2K): Linked/mirrored outputs in customized screen layout
- Seamless switching: Un-interrupted screen transitions during source selections
- Independent matrix switching in full-screen and quadrant modes, linked/mirrored in multi-view mode
- Image layering: Stack images with customizable priority settings
- View content through each other and choose window bezel width and coloring
- Ultra HD/4K up-scaling independently upscales to 4096 x 2160 30 Hz [4:4:4] 8-bit in 4K Quadrant mode
- Fully licensed and compatible with HDCP 2.2
- Supports SD, HD, and VESA input resolutions up to 1080p / 1920 x 1200 on HDMI and analog video Inputs. Outputs fixed to 1080p or 4K
- Web control interface: Reduces installation time and provides basic and advanced video and audio setup
- Audio from the selected input is de-embedded through the Coax digital (PCM) output in addition to the HDMI output
- Supports 2-channel and multi-channel audio formats up to 5.1 Dolby / DTS lossless, compressed digital surround sound
- Listen to any audio source while in quadrant or multi-view modes
- Analog video input ports support VGA or component signal types
- Manages TMDS re-clocking / signal re-generation, HDCP authentication to source and display, and EDID control handshake
- Internal library with 5 default EDID configurations for input, in addition to native EDID data for any Output / Display
- TMDS re-clocking supports for long HDMI connectivity using Key-Digital HDMI cables
- Deep color support up to 12-bit/color
- Control: Front-panel buttons, IR, RS-232, TCP-IP, and web control
- Compatible with Compass Control, AMX, Control4, Crestron, KNX, RTI, Savant, URC, Honeywell, HAI, Leviton, and more
- Can be controlled over TCP/IP via Key-Digital app
UPC: 815996020631 In the Box Key-Digital 4x2 4K Multi-View Presentation Matrix Switcher 12V/5A Power Supply IR Remote Control Rack Ears Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Key-Digital 4x2 4K Multi-View Presentation Matrix Switcher in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersKey-Digital KD-MLV4X2PRO Specs | Inputs | 4 x HDMI Type A, 19-pin female
2 x HD analog video DB-15 female
2 x analog audio, 3.5 mm stereo female | | Outputs | 1 x HDMI connector Type A, 19-pin female
1 x HDBaseT RJ45 female
1 x RCA digital coaxial audio
1 x L/R balanced/unbalanced on 6-pin phoenix connector | | Bandwidth | TMDS: 9 Gb/s total | | Deep Color Support | Supports digital video formats in deep color mode up to 8-bit/color with all HDMI and HDCP technologies | | Link | Single Link | | DDC Signal Voltage | 5 V p-p (TTL) | | Signal | HDMI Video/Audio: 1.2 V p-p | | Communication | DDC: EDID and HDCP buffering between source and display | | IR | Modulated IR signal input, 0 to 5 V TTL or -10 to +10V | | Power | External power supply; 12 V / 5 A | | Regulation | CE, RoHS, WEEE | | Enclosure | Metal | | Rack Mount | 1 RU, full rack-width | | Dimensions | 17.2 x 8.87 x 1.75" (43.6 x 22.5 x 4.44 cm) | | Weight | 6.5 lb (2.9 kg) |
