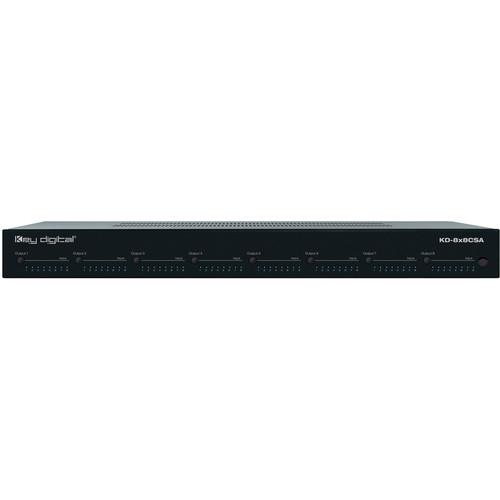

User Manual for Key-Digital 8x8 4K HDCP2.2 HDMI Matrix Switcher with Audio De-Embedding Click to enlarge the picture
Contents of the user manual for the Key-Digital 8x8 4K HDCP2.2 HDMI Matrix
- Product category: Routers & Switchers Key-Digital
- Brand: Key-Digital
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Key-Digital Routers & Switchers
|
User manual for the Key-Digital 8x8 4K HDCP2.2 HDMI Matrix contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Key-Digital product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Key-Digital user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Key-Digital product will considerably shorten its lifespan!
|
Product description The black 8x8 4K/HDCP2.2 HDMI Matrix Switcher with Audio De-Embedding from Key-Digital allows switching of eight HDMI sources to eight outputs. It supports SD, HD, and VESA (VGA, SVGA, XGA, WXGA, SXGA, and UXGA) resolutions and can pass 3D stereoscopic signal formats. In addition, the switcher also supports Dolby TrueHD, Dolby Digital Plus, DTS-HD Master Audio, and Dolby Atmos. -
- HDMI Matrix Switching: 8 HDMI sources to 8 HDMI outputs
- Audio De-Embedding: Audio from the selected HDMI input is de-embedded through the coax digital (PCM) or analog L/R balanced/unbalanced
- Ultra HD/4K support: 4096 x 2160 or 3840 x 2160 30 Hz at 4:4:4 and 60 Hz at 4:2:0
- Fully licensed and compatible with HDCP 2.2
- HDR (High Dynamic Range) support
- Supports all SD, HD, and VESA (VGA, SVGA, XGA, WXGA, SXGA, UXGA)
- Up to UHD/4K 30 Hz 4:2:2/12-bit or 60 Hz 4:2:0/8-bit
- Capability to pass 3D stereoscopic signal formats
- Manages TMDS re-clocking / signal re-generation
- HDCP authentication to source and display, and EDID control handshake
- Internal library with 15 default EDID configurations for input, in addition to native EDID data for any output/display
- Support for long HDMI connectivity using Key Digital HDMI cables
- Lossless Compressed Digital Audio: Dolby TrueHD, Dolby Digital Plus, DTS-HD Master Audio, and Dolby Atmos
- Front panel buttons/LEDs, Serial IR, Optical IR, RS-232 Control
- Control System Support: Key Digital App and Compass Control ready
- Fully controllable by all IR, RS-232, and TCP/IP supported control systems via open API (AMX, Crestron, KNX, RTI, Savant, URC, Leviton, and more)
UPC: 819505002903 In the Box Key-Digital 8x8 4K/HDCP2.2 HDMI Matrix Switcher with Audio De-Embedding (Black) Power Supply for KD-4x8/6x6/8x4/4x4/8x8 Matrix Switchers uefxaeafdaxrzfsffwxfdqyczfsteere Rack Ears Limited 10-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Key-Digital 8x8 4K HDCP2.2 HDMI Matrix Switcher with Audio De-Embedding in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersKey-Digital KD-8X8CSA Specs | | | Input | 8 x HDMI connector, type-A, 19-pin female | | Output | 8 x HDMI connector, type-A, 19-pin female
6-pin terminal block for analog L/R output
RCA jack for digital audio output follows SPDIF format (IEC 60958) | | Bandwidth | TMDS bandwidth 10.2 Gb/s | | DDC Signal Voltage | Input DDC Signal: 5 V p-p (TTL) | | Signal | Input Video/Audio Signal: 1.2 V p-p | | IR | Wired IR: Modulated IR signal input, 0 to 5 V TTL or -10 to 10 V, 3.5mm mono female connector with signal on tip | | Regulation | CE, RoHS, WEEE | | Enclosure | etal | | Rack Mount | 1U, full rack width (rack ears included) | | Power Supply | KD-PS12V2A: 12 V/2 A DC power supply, screw-in type connector | | Product Dimensions | 17.25 x 7.5 x 1.75" (43.81 x 19.05 x 4.4) | | Weight | 6.5 lb (2.9 kg) | | | | Box Dimensions (LxWxH) | 23.5 x 8.75 x 2.5" |
Rating50% users recommend this product to others. And what about you?
This product has already been rated by 20 owners. Add your rating and experience with the product.
