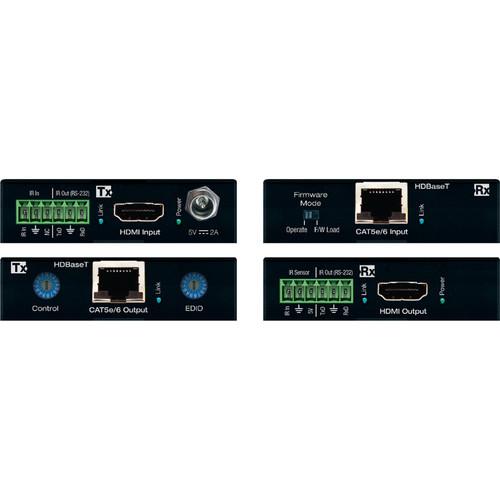

Product description The HDBaseT 4K HDMI Extender Set from Key-Digital is an HDCP 2.2 compliant product that extend 4K/UHD 24/25/30 (4:4:4) and 4K/UHD 60 (4:2:0) signals up to 150' using a KD-CAT6STP1X Super Cat 6a shielded cable, or up to 125' using a single third-party Cat 5e/6 cable. 1080p/60, 1920 x 1200, 3D signals are extended up to 250' via a single KD-CAT6STP1X Super Cat 6a shielded cable, or up to 230' using a single third-party Cat 5e/6 cable. In addition to HDMI video and audio signals, this extender set carries IR or RS-232 for controlling remotely located equipment. This unit features power extension from the transmitter to the receiver with Power over HDBaseT, so the receiver unit does not require a power supply. - HDR
- More life-like images through a greater range of luminance levels
- 4K/UHD Resolution
- Supports signals up to 4096 x 2160 60 Hz [4:2:0] 8-bit, 4096 x 2160 30 Hz [4:2:2] 12-bit, and 4096 x 2160 30 Hz [4:4:4] 8-bit
- Deep Color Support
- Up to UHD/4K 30 Hz [4:2:2] 12-bit or 60 Hz [4:2:0] 8-bit
- 3D
- Support for standard 3D stereoscopic signal formats
- Low-Profile
- Super-slim chassis design
- HDMI and HDCP Licensing
- Fully licensed and compatible with HDCP 2.2 and HDMI latest technology such as 4K/UHD [4:2:0] 8-bit at 60 fps
- EDID Control
- Internal library features 15 default EDID configurations and native EDID data from Output/Display devices connected via Rx
- Hot Plug Detection Control
- Enables integrator to choose if active signal voltage is forced to connected input devices
- Full Buffer System
- Manages TMDS re-clocking / signal re-generation, HDCP authentication with source & display, EDID control handshake, and Hot Plug control
- IR Sensor
- Sensor powering via +5V on Rx unit's IR In port collects line-of-sight IR from remote without external IR connecting block
- Up/Down IR
- Two channels of IR enable control to/from devices connected to Tx and Rx units
- RS-232
- Bidirectional control to/from Tx and Rx unit on Phoenix connector
- Rotary Switch RS-232 Control Mode
- Provides control of Tx unit as well as connectivity status
- Lossless Compressed Digital Audio
- Support for Dolby TrueHD, Dolby Digital Plus, Dolby Atmos, and DTS-HD Master Audio
- CEC Support
- For inter-device control between input and output HDMI channel
- I2C Communication
- EDID and HDCP authentication to Display and Source
- Control System Support
- Fully controllable by all RS-232 supported control systems via open API: Compass Control, AMX, Crestron, KNX, RTI, Savant, URC, Leviton, etc.
UPC: 815996020204 In the Box Key-Digital HDBaseT 4K HDMI Extender Set with PoE, HDR & HDCP 2.2 12 VDC, 2 A Power Supply 2 x Mounting Brackets IR Emitter IR Sensor Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Key-Digital HDBaseT 4K HDMI Extender Set with PoE, HDR & HDCP 2.2 in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersKey-Digital KD-X222PO Specs | Inputs | Transmitter: 1 x HDMI, 1 x IR
Receiver: 1 x Cat 5e/6 UTP/STP, 1 x IR | | Outputs | Transmitter: 1 x Cat 5e/6 UTP/STP, 1 x IR/RS-232 Bidirectional
Receiver: 1 x HDMI, 1 x IR/RS-232 Bidirectional | | Input DDC Signal | 5 V p-p (TTL) | | Input Video Signal | 1.2 V p-p | | Regulation | CE, RoHS, WEEE | | Enclosure | Black metal | | Power | 12 VDC / 2 A, 100-240 VAC, 50-60 Hz, interchangeable head with screw-in connector | | Dimensions | 4.1 x 2.8 x 0.9" (10.4 x 7.1 x 2.2 cm) | | Weight | 0.75 lb (340 g) | | | | Package Weight | 1.85 lb | | Box Dimensions (LxWxH) | 7.1 x 4.1 x 3.2" |
