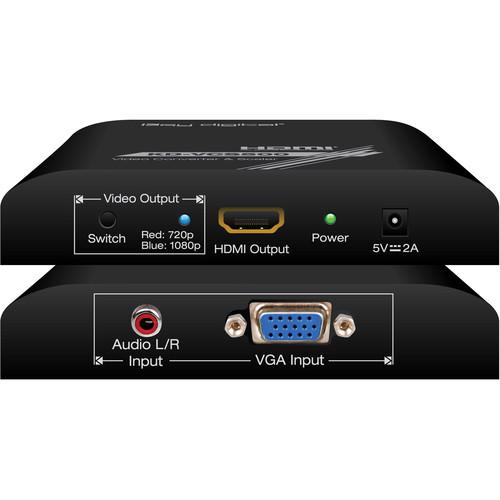

User Manual for Key-Digital KD-VCS500 Video Converter & Scaler Click to enlarge the picture
Contents of the user manual for the Key-Digital KD-VCS500 Video Converter & Scaler
- Product category: Signal Converters Key-Digital
- Brand: Key-Digital
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Key-Digital Signal Converters
|
User manual for the Key-Digital KD-VCS500 Video Converter & Scaler contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Key-Digital product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Key-Digital user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Key-Digital product will considerably shorten its lifespan!
|
Product description The KD-VCS500 Video Converter & Scaler from Key-Digital converts VGA video and analog audio to digital HDMI video and embedded audio, and upscales VGA resolutions to 720p or 1080p. The dual-color LED allows for easy identification of resolution mode. This compact unit is fully licensed and compatible with all HDMI and HDCP technologies. - Converts VGA video and analog audio to digital HDMI video and audio
- Embeds incoming analog audio onto the HDMI output
- Upscales VGA resolutions to 720p or 1080p
- Resolution Selection allows simple switching between 720p and 1080p up-scaling
- Dual-color LED allows for easy identification of resolution mode
- HDMI and HDCP Licensing: Fully licensed and compatible with all HDMI and HDCP technologies
UPC: 819505001753 In the Box Key-Digital KD-VCS500 Video Converter & Scaler Power Supply Limited 10-Year Warranty Brochure PDF 373.3kb Table of Contents
|
Upload User Manual
Have you got an user manual for the Key-Digital KD-VCS500 Video Converter & Scaler in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersKey-Digital KD-VCS500 Specs | Inputs | 1 x VGA
1 x 3.5 mm stereo audio | | Outputs | 1 x HDMI | | Upscaling | VGA resolutions to 720p or 1080p | | Resolution Supported | 640x480@60, 800x600@60, 1024x768@60, 1152x864@60Hz, 1280x720@60, 1280x768@60, 1280x800@60, 1280x960@60, 1360x768@60, 1366x768@60, 1280x960@60, 1280x1024@60, 1440x900@60/75, 1600x1050@60, 1680x1050@60, 1600x1200@60, 1920x1080@60, 1920x1200@60 | | Control | Resolution Selection: switches between 720p and 1080p upscaling
| | LED Indicator | Red/Blue: 720p/1080p output | | Input DDC signal | 5 Vpp (TTL) | | Communication | DDC: EDID and HDCP Bi-directional transparency from display to source | | Power Supply | KD-PS5V1A, 5V/1A, 100-240VAC, 50-60Hz, Interchangeable head | | Certifications and Compliances | CE, RoHS, WEEE | | Enclosure | Black Plastic | | Dimensions | 4.68 x 2.91 x 0.9" (118.9 x 73.9 x 22.9 mm) | | Weight | 0.8 lb (0.36 kg) | | | | Package Weight | 0.65 lb | | Box Dimensions (LxWxH) | 7.2 x 5.4 x 2.6" |
