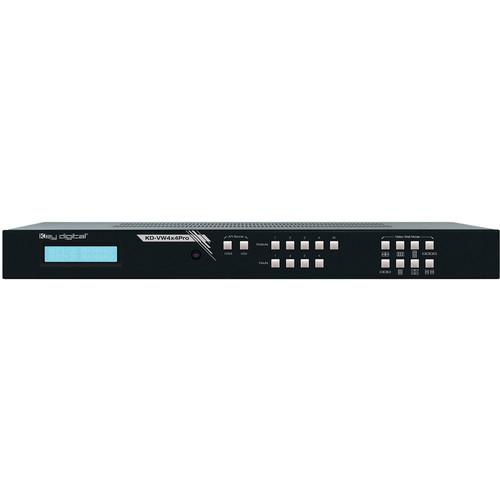

User Manual for Key-Digital KD-VW4x4Pro HDMI Video Wall Processor Click to enlarge the picture
Contents of the user manual for the Key-Digital KD-VW4x4Pro HDMI Video Wall Processor
- Product category: Routers & Switchers Key-Digital
- Brand: Key-Digital
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Key-Digital Routers & Switchers
|
User manual for the Key-Digital KD-VW4x4Pro HDMI Video Wall Processor contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Key-Digital product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Key-Digital user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Key-Digital product will considerably shorten its lifespan!
|
Product description Make standard consumer TVs and monitors into a huge video wall with the Key Digital KD-VW4x4Pro HDMI Video Wall Processor. Four HDMI/VGA inputs accept digital/analog video and audio from computers, media players, and other sources. With the eight onboard video wall processing modes, the four outputs can be configured to display video from a single input over a four-output video wall. Adjustments such as bezel compensation let you fine-tune your video wall to fit different screen types. The KD-VW4x4Pro also doubles as a matrix switcher with the ability to route any of its four inputs to any available output.As part of an A/V integration setup, control can be achieved using the front panel, the included wireless IR remote control, or software via RS-232 or Ethernet. Rack ears are included for mounting the unit into a standard 19" equipment rack. The compact form factor of the unit only takes up 1 RU of space. - Video Wall Processing
- Transform consumer and professional displays into a video wall with eight video wall modes:
- Horizontal: 1x4 Rotated, 1x4, 1x3, and two sets of 1x2
- Vertical: Two sets of 2x1
- Vertical: 4x1 and 3x1
- Square: 2x2
- General Features
-
- Bezel Control: Create a fluid screen transition by removing pixels from top, bottom, left, and right border independently
- EDID: Internal library with five default EDID configurations for each input, in addition to native EDID data for any output/display
- Full Buffer Technology: Full buffering of HDCP and EDID, for the fastest possible switching and viewing of any source/input to any display/output, regardless of multiple output viewing relation
- TMDS Reclocking: Support for long HDBaseT/Cat5e/6 or HDMI connections and many layers of connectivity
- Deep Color Support: Up to 12-bit/channel
- Control: Front panel buttons, Serial IR, Optical IR, RS-232, and TCP-IP, including video wall mode select, matrix switching, EDID Control, and discrete on and off via IR
- Control System Support: Compatible with Compass Control, AMX, Control4, Crestron, KNX, RTI, Savant, URC, Leviton, and more
UPC: 819505002941 In the Box Key-Digital KD-VW4x4Pro HDMI Video Wall Processor Power Supply IR Remote Control Rack Ears Limited 10-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Key-Digital KD-VW4x4Pro HDMI Video Wall Processor in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersKey-Digital KD-VW4x4Pro Specs | Inputs | 4 x HDMI, type A
4 x VGA with analog audio on stereo 3.5 mm mini | | Outputs | 4 x HDMI, type A
4 x Digital coaxial audio on RCA | | TMDS Bandwidth | 4.95 Gbps | | Link | Single link | | Signal Voltage | DDC: 5 Vpp (TTL)
HDMI: 1.2 Vpp
IR: 0 to 5 V TTL, or -10 to +10 V over 3.5 mm | | Power Supply | 12 VDC, 3 A | | Compliance | CE, RoHS, WEEE | | Dimensions | 17.3 x 7.1 x 1.8" / 438 x 180 x 44 mm
Rack Units: 1 RU | | Weight | 6.5 lb / 2.9 kg | | | | Box Dimensions (LxWxH) | 23.3 x 8.7 x 2.3" |
