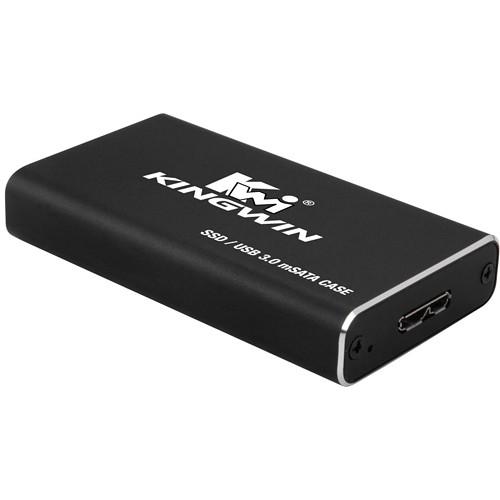

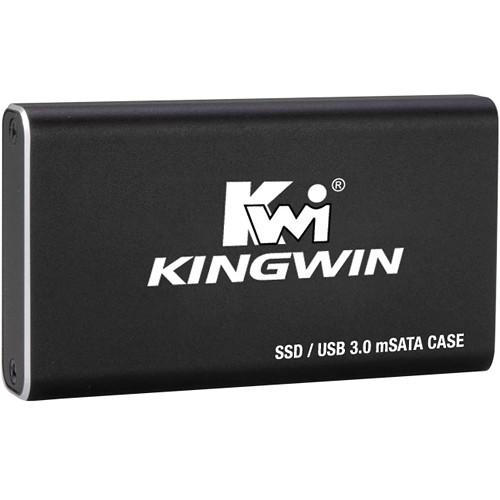

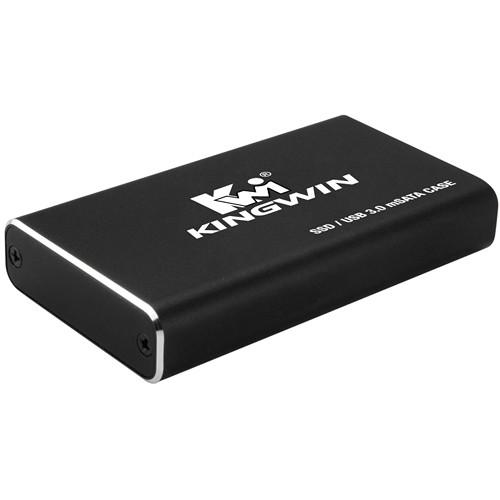

User Manual for Kingwin KM-U3MSATA USB 3.1 Gen 1 Mini SATA SSD Enclosure Adapter Click to enlarge the picture
Contents of the user manual for the Kingwin KM-U3MSATA USB 3.1 Gen 1
- Product category: Hard Drive Enclosures & Docks Kingwin
- Brand: Kingwin
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Kingwin Hard Drive Enclosures & Docks
 |
User manual for the Kingwin KM-U3MSATA USB 3.1 Gen 1 contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Kingwin product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Kingwin user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Kingwin product will considerably shorten its lifespan!
|
Product description The Kingwin KM-U3MSATA USB 3.0 Mini SATA SSD Enclosure Adapter allows you to attach a 50mm Mini-SATA (mSATA) SSD and convert it into a USB 3.0 external portable slim drive. Mini-SATA or mSATA is a case-less form factor of SSD, measuring roughly 50mm long, 30mm wide and 4.75mm high. Mini-SATA SSD offers faster performance, lower power consumption, higher reliability, and ruggedness in a small and lightweight form-factor when compared to a hard drive. The KM-U3MSATA adapter board allows you to easily insert the mSATA module thru the 52-pin SSD connector and push it downwards to fasten. It is compatible with SATA I/II/III (1.5/3.0/6.0 Gbps) SSDs.
SuperSpeed USB 3.0 PC interface offers 10X faster performance (5Gbps) over Hi-Speed USB 2.0 (480Mbps) while still retaining backward compatibility and interoperability with all PC USB ports and devices. SuperSpeed USB 3.0 also works with Windows 8 and Mac OS X with no driver installation needed.
USB Attached SCSI Protocol (UASP) is a USB 3.0 protocol that replaces USB 2.0 BOT protocol. Unlike BOT protocol that transfers data and commands on the same pipe and commands are processed one at a time, UASP sends data and command in separate pipes and multiple commands are processed in parallel, therefore further increasing performance and lowering CPU utilization. UASP is fully supported in Windows 8 and Mac OSX (10.8 or above) that also requires a compatible host system.
The KM-U3MSATA supports USB plug-and-play and is powered directly from the USB port (no external power needed). Simply insert the mSATA into the KM-U3MSATA enclosure and then plug the enclosure into the USB port of your computer to access the mSATA drive. No extra driver installation required. - External USB 3.0 to Mini-SATA (mSATA) SSD Enclosure
- ASMedia ASM1053E USB 3.0 to SATA 6G controller chip
- Supports UASP (USB Attached SCSI Protocol) for even faster performance (requires UASP capable PC host system).
- Compatible with SATA I/II/III (1.5/3.0/6.0 Gbps) mSATA SSD
- Up to 5 Gb/s Data Transfer Rate in USB 3.0 port
- Compatible also with USB 2.0 480 Mb/s port
- Powers directly from USB port
- Plug-and-Play and Hot-Swap Capability
- Windows & Mac OS Compatible (no driver installation needed)
UPC: 812348012252 In the Box Kingwin KM-U3MSATA USB 3.1 Gen 1 Mini SATA SSD Enclosure Adapter USB 3.0 Type A to Micro B Cable Mini-Screwdriver Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Kingwin KM-U3MSATA USB 3.1 Gen 1 Mini SATA SSD Enclosure Adapter in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersKingwin KM-U3MSATA Specs | Number of Bays | 1 x mSATA | | Connections | 1 x USB Type-B (USB 3.1 Gen 1 (5 Gb/s)) | | Operating System Support | Windows, macOS/OS X | | | | Bridge Chipset | ASMedia ASM1053E | | Dimensions (W x H x D) | 2.9 x 1.7 x 0.5" / 74.0 x 43.0 x 13.0 mm | | Weight | 0.1 lb / 50.0 g | | | | Package Weight | 0.2 lb | | Box Dimensions (LxWxH) | 6.1 x 4.4 x 0.8" |
