User Manual for Kino Flo 2' 4Bank System Click to enlarge the picture
Contents of the user manual for the Kino Flo 2' 4Bank System
- Product category: Fluorescent Lights Kino Flo
- Brand: Kino Flo
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Kino Flo Fluorescent Lights
|
User manual for the Kino Flo 2' 4Bank System contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Kino Flo product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Kino Flo user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Kino Flo product will considerably shorten its lifespan!
|

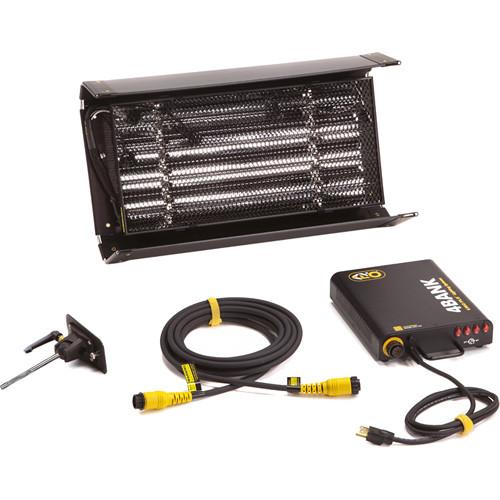

Product description The 2' 4Bank System from Kino Flo is comprised of a single 2', four-tube fluorescent fixture, a 4Bank ballast to power it, grid (louver) to help control the light, a 25' head extension cable, and a mounting plate with a long 3/8" pin that mates up with a variety of grip heads and gear.
This versatile kit is portable enough to be used for news gathering or any other location video shots but is equally at home in the studio. The 4Bank system was designed as a soft light source that could be plugged into the wall on location. With its narrow profile and size, the 4Bank could approximate the quality of light from bounced sources without losing set space. It was designed in this manner to allow the greatest flexibility when working on film production where the gaffer and DP are constantly being challenged to light unique locations and problem solve at a moment's notice. The 4Bank is a high output, high frequency electronic ballast with universal input voltage from 100-240 VAC, that can operate four lamps up to 75 feet between ballast and fixture. Dedicated switches allow for individual control of each lamp. The ballast sends a high output current to the lamps to drive the light as brightly as possible. Its high-frequency electronics prevent any type of flicker. Kino Flo's engineering ensures stable operation without magnetic hum or cooling fans to interfere with the sound recording on set.
All Kino Flo lights employ optional True Match lamps which are formulated to correspond to the spectral distribution curves of film and video cameras as well as look correct to the eye. They are designed to match the colors from quartz units or daylight sources such as HMIs. This gives the camera operator the option of mixing quartz hard light sources with fluorescent soft sources. - 4Bank Fixture (2') The 2' 4Bank Fixture from Kino Flo is a 4-lamp fluorescent light that outputs the equivalent of a 500W softlight while consuming a fraction of the traditional fixture's electrical draw. When used with a standard or DMX ballast (purchased separately) the light has 2 or 4 lamp switching to vary the power output as well as standard and High Output settings to avoid color shifting associated with dimming. Unlike other ballasts, Kino Flo's optional ballasts can be located up to 75' from the head with no power loss, solving the problem of adjustments when the light is hung overhead. Optional True Match lamps that feature a high CRI of 95 are available in 3200K or 5600K color balance.
- Benefits
-
- 4-Lamp remote fixture with built-in barndoors
- Fixture includes removable lamp harness, reflector and louver
- Same fixture takes daylight and tungsten lamps, plus visual effects color lamps
- Mounts to stand, light enough to be hand-held or taped to a wall
- Removable optional center mount
- Optional High Output (HO), flicker-free ballasts
- High color rendering (CRI 95) with optional True Match lamps in 3200K and 5500K
- Visual effects lamps available in 420nm blue, 550nm green for blue and green screen application
- UL listed, CE approved
- 4Bank Ballast The 4Bank Ballast from Kino Flo is designed to power the 4' or 2' versions of the 4-lamp 4Bank fluorescent fixture. The silent, flicker-free ballast, specifically developed for film and video production, has 4-lamp on/off switching, runs on 100-240 VAC current and can power the fixture up to 75' away using optional head-to-ballast extension cables. It has a special Select switch to raise or drop wattage for output and color control.
- Benefits
-
- High output, flicker-free ballast
- Universal input voltage from 100-240 VAC can be used anywhere in the world
- Instant-on, dead quiet
- Individual lamp switching - no color shift
- HO/Std switching
- Low amperage draw
- Same ballast runs 4' and 2' lamps
- UL listed, CE approved
- 41K Mount with 3/8" Pin The Kino Flo 41K Mount with 3/8" Pin is compatible with 4Bank, Double, Single, and Barfly fixtures. The 3/8" pin is made to fit in 2.5" grip heads.
- Extension Cable for 4-Bank Fixture - 25' Extends the range of one of the Kino Flo's 4-Bank fixture components.
25 feet long. In the Box Bundle Items 4Bank Fixture (2') cbesbeeaczwqevcsywzrubazswtxtwfsbwzb - Louver for 2ft 4Bank (90°)
4Bank Ballast 41K Mount with 3/8" Pin Extension Cable for 4-Bank Fixture - 25' Table of Contents
|
Upload User Manual
Have you got an user manual for the Kino Flo 2' 4Bank System in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - 4Bank Fixture (2')
| Lamps | 4 x F40/T12 Lamp Sockets | | Mounting | Twist-off mount with 3/8" pin | | Photometrics | 65 fc @ 4.0' (1.2 m)
17 fc @ 8.0' (2.4 m)
5.5 fc @ 14' (4.2 m)
456 lux @ 4.9' (1.5 m)
170 lux @ 8.2' (2.5 m)
69 lux @ 13.1' (4.0 m) | | Approvals and Certifications | UL listed, CE approved | | Dimensions | 27 x 13 x 3.5" (69 x 33 x 9 cm) with 6.5" barndoors | | Weight | 7.5 lb (3.4 kg) | | | | Box Dimensions (LxWxH) | 27.0 x 13.5 x 3.5" | - 4Bank Ballast
| Voltage | 100 - 240 VAC 50/60 Hz | | Plug | US/North American plug | | Output Frequency | 25 kHz | | Amperage | F75 / 2.6 A, F40 / 2.5 A
F30 / 1.6 A, F20 / 0.9 A | | Lamp Switching | 1 - 4 | | Output Switching | 2 / 4' lamps | | Operating Temperature | 14 to 122°F (-10 to +50°C) | | Dimensions | 13 x 9.5 x 3.0" (33 x 24 x 7.6 cm) | | Weight | 4.9 lb (2.2 kg) | | | | Box Dimensions (LxWxH) | 15.25 x 9.75 x 2.9" | - 41K Mount with 3/8" Pin
| | | Box Dimensions (LxWxH) | 8.25 x 3.9 x 3.45" | - Extension Cable for 4-Bank Fixture - 25'
| | | Box Dimensions (LxWxH) | 12.1 x 12.05 x 3.05" |
