Product description

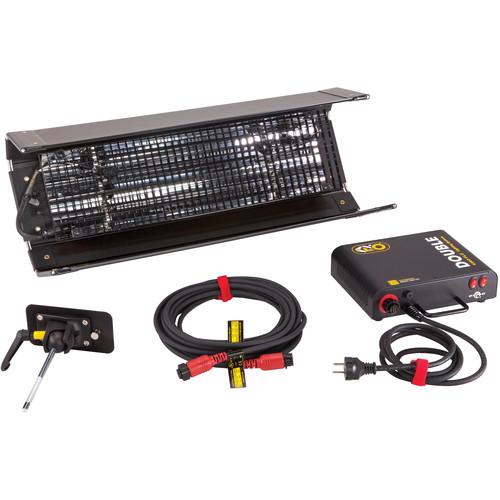

• 2' Double Fixture The 2' Double Fixture from Kino Flo is a 2-lamp fluorescent light that outputs the equivalent of a 500W softlight while consuming a fraction of a traditional fixture's electrical draw. The 2' Double comes with a removable harness and reflector that allow you to operate the lamps independently of the fixture's shell. A 90-degree louver (grid) is also included to minimize spill light and give the user directional control of the light output. When used with a standard or DMX ballast (purchased separately), the light has lamp switching to vary the power output. Unlike other ballasts, Kino Flo's optional ballasts can be located up to 75' from the head with no power loss, solving the problem of making adjustments when the light is hung overhead. Optional True Match lamps that feature a high CRI of 95 are available in 3200K or 5600K color balance as well as specialty colors for blue and green screen work.
  Benefits
  • 2-Lamp remote fixture with built-in barndoors
  • Fixture includes removable lamp harness, reflector, and louver
  • Same fixture takes daylight and tungsten lamps, plus visual effects color lamps
  • Optional High Output (HO), flicker-free ballast
  • High color rendering (CRI 95) with optional True Match lamps in 3200K and 5500K
  • Visual effects lamps available in 420nm blue, 550nm green for blue and green screen application
  • UL listed, CE approved
• 41K Mount with 3/8" Pin The Kino Flo 41K Mount with 3/8" Pin is compatible with 4Bank, Double, Single, and Barfly fixtures. The 3/8" pin is made to fit in 2.5" grip heads.
• 25' Double Extension Cable Kino Flo 25' Double Extension cable, for Double System. Allows operation of the fluorescent tubes away from the ballast or fixture.
• Ballast for Double Fluorescent Light The 3.3 lb Ballast for Double Fluorescent Light from Kino Flo powers the 2' or 4' Double lamp heads via a front panel switch and has a 2-Prong Euro plug. It is flicker-free, dead silent, has 1-2 on/off lamp switching and accepts 100-240 VAC line voltage. An optional baby mount allows you to mount the ballast on a light stand on any grip gear with a 5/8" stud.

• 2' Fixture Shell for 4Bank

• 2' 4Bank Locking Harness

• Reflector for 2' Single Fixture

• 2' 4Bank Louver (Black)

• Limited 1-Year Warranty

• Limited 1-Year Warranty

• Limited 2-Year Warranty

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• 2' Double Fixture

  Lamps	2 x F40/T12 Lamp sockets
  Mounting	Center twist mount accepts various receivers
  Photometrics	35 fc @ 4.0' (1.2 m) 9 fc @ 8.0' (2.4 m) 3 fc @ 14' (4.2 m) 251 lux @ 4.9' (1.5 m) 92 lux @ 8.2' (2.5 m) 37 lux @ 13.1' (4.0 m)
  Approvals and Certifications	UL listed, CE approved
  Dimensions	27 x 7.5 x 3.5" (68 x 19 x 9 cm) with 6.0" (15 cm) barndoors
  Weight	4.7 lb (2.1 kg)

  Box Dimensions (LxWxH)	27.3 x 7.8 x 4.2"

• 41K Mount with 3/8" Pin

  Box Dimensions (LxWxH)	8.25 x 3.9 x 3.45"

• 25' Double Extension Cable

  Box Dimensions (LxWxH)	10.5 x 10.5 x 2.0"

• Ballast for Double Fluorescent Light

  Voltage	100-240 VAC 50/60 Hz
  Plug	2-Prong Euro plug
  Output Frequency	25 kHz
  Amperage	F75/1.3 A, F40/1.2 A F30/0.7 A, F20/0.5 A
  Lamp Switching	1-2
  Output Switching	2'/ 4'
  Operating Temperature	14 to 122°F (-10 to +50°C).
  Dimensions	9.0 x 9.5 x 3" (23 x 24 x 7.6 cm)
  Weight	3.3 lb (1.5 kg)
