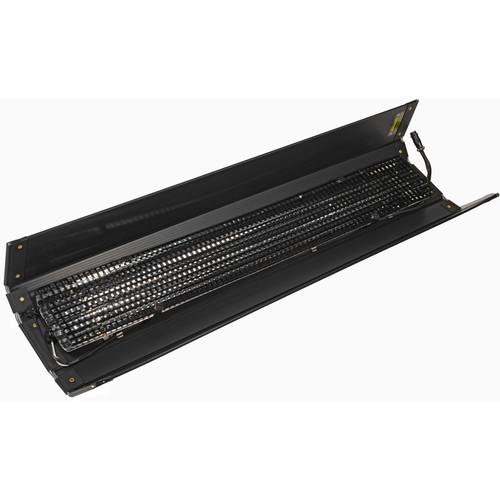

Product description The 4' 4Bank Fixture from Kino Flo is a 2-lamp fluorescent light that outputs the equivalent of a 500W softlight while consuming a fraction of the traditional fixture's electrical draw. The 4Bank has a locking center mount and comes with a removable harness and reflector that allow you operate the lamps independently of the fixture's shell. A 90 degree louver (grid) is also included to minimize spill light and give the user directional control of the light output. When used with a standard or DMX ballast (purchased separately) the light has lamp switching to vary the power output. Unlike other ballasts, Kino Flo's optional ballasts can be located up to 75' from the head with no power loss, solving the problem of making adjustments when the light is hung overhead. Optional True Match lamps that feature a high CRI of 95 are available in 3200K or 5600K color balance as well as specialty colors for blue and green screen work.
Please Note: This is the fixture only, a receiver mount (not included) is required to mount to a stand. - Benefits
-
- 4-Lamp remote fixture with built-in barndoors
- Fixture includes removable lamp harness, reflector and louver
- Same fixture takes daylight and tungsten lamps, plus visual effects color lamps
- Optional High Output (HO), flicker-free ballasts
- High color rendering (CRI 95) with optional True Match lamps in 3200K and 5500K
- Visual effects lamps available in 420nm blue, 550nm green for blue and green screen application
- UL listed, CE approved
In the Box Kino Flo 4' Double Fixture Fixture Shell Lamp Harness Reflector Louver (Grid) Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Kino Flo 4' Double Fixture in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersKino Flo Double Specs | Lamps | 2x F75/T12 Lamp sockets | | Mounting | Center twist mount accepts various receivers | | Photometrics | 94 fc @ 4.0' (1.2 m)
26 fc @ 8.0' (2.4 m)
9.0 fc @ 14' (4.2 m)
624 lux @ 4.9' (1.5 m)
266 lux @ 8.2' (2.5 m)
110 lux @ 13.1' (4.0 m) | | Approvals and Certifications | UL listed, CE approved | | Dimensions | 52 x 7.5 x 3.5" (132 x 19 x 9 cm) with 6.0" (15 cm) barndoors | | Weight | 7.7 lb (3.5 kg) | | | | Package Weight | 5.6 lb | | Box Dimensions (LxWxH) | 52.0 x 8.0 x 3.0" |
