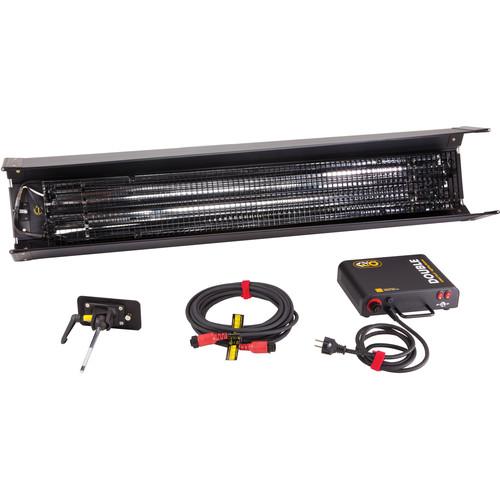

User Manual for Kino Flo 4' Double Fluorescent System Click to enlarge the picture
Contents of the user manual for the Kino Flo 4' Double Fluorescent System
- Product category: Fluorescent Lights Kino Flo
- Brand: Kino Flo
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Kino Flo Fluorescent Lights
|
User manual for the Kino Flo 4' Double Fluorescent System contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Kino Flo product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Kino Flo user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Kino Flo product will considerably shorten its lifespan!
|
Product description The 4' Double Fluorescent System from Kino Flo is a highly portable lighting setup that's ideal for a soft key light or for fill light. The System includes a 4' lamp head that takes optional True Match bulbs and a 3/8" mounting pin. The System also includes a 25' head-to-ballast cable as well as a universal ballast with a 2-prong euro plug that can be used anywhere in the world with the appropriate plug adapter. - 4' Double Fixture The 4' 4Bank Fixture from Kino Flo is a 2-lamp fluorescent light that outputs the equivalent of a 500W softlight while consuming a fraction of the traditional fixture's electrical draw. The 4Bank has a locking center mount and comes with a removable harness and reflector that allow you operate the lamps independently of the fixture's shell. A 90 degree louver (grid) is also included to minimize spill light and give the user directional control of the light output. When used with a standard or DMX ballast (purchased separately) the light has lamp switching to vary the power output. Unlike other ballasts, Kino Flo's optional ballasts can be located up to 75' from the head with no power loss, solving the problem of making adjustments when the light is hung overhead. Optional True Match lamps that feature a high CRI of 95 are available in 3200K or 5600K color balance as well as specialty colors for blue and green screen work.
Please Note: This is the fixture only, a receiver mount (not included) is required to mount to a stand. - Benefits
-
- 4-Lamp remote fixture with built-in barndoors
- Fixture includes removable lamp harness, reflector and louver
- Same fixture takes daylight and tungsten lamps, plus visual effects color lamps
- Optional High Output (HO), flicker-free ballasts
- High color rendering (CRI 95) with optional True Match lamps in 3200K and 5500K
- Visual effects lamps available in 420nm blue, 550nm green for blue and green screen application
- UL listed, CE approved
- 41K Mount with 3/8" Pin The Kino Flo 41K Mount with 3/8" Pin is compatible with 4Bank, Double, Single, and Barfly fixtures. The 3/8" pin is made to fit in 2.5" grip heads.
- 25' Double Extension Cable Kino Flo 25' Double Extension cable, for Double System. Allows operation of the fluorescent tubes away from the ballast or fixture.
- Ballast for Double Fluorescent Light The 3.3 lb Ballast for Double Fluorescent Light from Kino Flo powers the 2' or 4' Double lamp heads via a front panel switch and has a 2-Prong Euro plug. It is flicker-free, dead silent, has 1-2 on/off lamp switching and accepts 100-240 VAC line voltage. An optional baby mount allows you to mount the ballast on a light stand on any grip gear with a 5/8" stud.
In the Box Bundle Items 4' Double Fixture ffuqcuwfrzeyeewadqcdtzezfrbx 41K Mount with 3/8" Pin 25' Double Extension Cable Ballast for Double Fluorescent Light Table of Contents
|
Upload User Manual
Have you got an user manual for the Kino Flo 4' Double Fluorescent System in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - 4' Double Fixture
| Lamps | 2x F75/T12 Lamp sockets | | Mounting | Center twist mount accepts various receivers | | Photometrics | 94 fc @ 4.0' (1.2 m)
26 fc @ 8.0' (2.4 m)
9.0 fc @ 14' (4.2 m)
624 lux @ 4.9' (1.5 m)
266 lux @ 8.2' (2.5 m)
110 lux @ 13.1' (4.0 m) | | Approvals and Certifications | UL listed, CE approved | | Dimensions | 52 x 7.5 x 3.5" (132 x 19 x 9 cm) with 6.0" (15 cm) barndoors | | Weight | 7.7 lb (3.5 kg) | | | | Box Dimensions (LxWxH) | 52.0 x 8.0 x 3.0" | - 41K Mount with 3/8" Pin
| | | Box Dimensions (LxWxH) | 8.25 x 3.9 x 3.45" | - 25' Double Extension Cable
| | | Box Dimensions (LxWxH) | 10.5 x 10.5 x 2.0" | - Ballast for Double Fluorescent Light
| Voltage | 100-240 VAC 50/60 Hz | | Plug | 2-Prong Euro plug | | Output Frequency | 25 kHz | | Amperage | F75/1.3 A, F40/1.2 A
F30/0.7 A, F20/0.5 A | | Lamp Switching | 1-2 | | Output Switching | 2'/ 4' | | Operating Temperature | 14 to 122°F (-10 to +50°C). | | Dimensions | 9.0 x 9.5 x 3" (23 x 24 x 7.6 cm) | | Weight | 3.3 lb (1.5 kg) |
