Product description

• 4Bank Fixture (2') The 2' 4Bank Fixture from Kino Flo is a 4-lamp fluorescent light that outputs the equivalent of a 500W softlight while consuming a fraction of the traditional fixture's electrical draw. When used with a standard or DMX ballast (purchased separately) the light has 2 or 4 lamp switching to vary the power output as well as standard and High Output settings to avoid color shifting associated with dimming. Unlike other ballasts, Kino Flo's optional ballasts can be located up to 75' from the head with no power loss, solving the problem of adjustments when the light is hung overhead. Optional True Match lamps that feature a high CRI of 95 are available in 3200K or 5600K color balance.
  Benefits
  • 4-Lamp remote fixture with built-in barndoors
  • Fixture includes removable lamp harness, reflector and louver
  • Same fixture takes daylight and tungsten lamps, plus visual effects color lamps
  • Mounts to stand, light enough to be hand-held or taped to a wall
  • Removable optional center mount
  • Optional High Output (HO), flicker-free ballasts
  • High color rendering (CRI 95) with optional True Match lamps in 3200K and 5500K
  • Visual effects lamps available in 420nm blue, 550nm green for blue and green screen application
  • UL listed, CE approved
• 4Bank Ballast The 4Bank Ballast from Kino Flo is designed to power the 4' or 2' versions of the 4-lamp 4Bank fluorescent fixture. The silent, flicker-free ballast, specifically developed for film and video production, has 4-lamp on/off switching, runs on 100-240 VAC current and can power the fixture up to 75' away using optional head-to-ballast extension cables. It has a special Select switch to raise or drop wattage for output and color control.
  Benefits
  • • High output, flicker-free ballast
    • Universal input voltage from 100-240 VAC can be used anywhere in the world
    • Instant-on, dead quiet
    • Individual lamp switching - no color shift
    • HO/Std switching
    • Low amperage draw
    • Same ballast runs 4' and 2' lamps
    • UL listed, CE approved
• 2' Double Fixture The 2' Double Fixture from Kino Flo is a 2-lamp fluorescent light that outputs the equivalent of a 500W softlight while consuming a fraction of a traditional fixture's electrical draw. The 2' Double comes with a removable harness and reflector that allow you to operate the lamps independently of the fixture's shell. A 90-degree louver (grid) is also included to minimize spill light and give the user directional control of the light output. When used with a standard or DMX ballast (purchased separately), the light has lamp switching to vary the power output. Unlike other ballasts, Kino Flo's optional ballasts can be located up to 75' from the head with no power loss, solving the problem of making adjustments when the light is hung overhead. Optional True Match lamps that feature a high CRI of 95 are available in 3200K or 5600K color balance as well as specialty colors for blue and green screen work.
  Benefits
  • 2-Lamp remote fixture with built-in barndoors
  • Fixture includes removable lamp harness, reflector, and louver
  • Same fixture takes daylight and tungsten lamps, plus visual effects color lamps
  • Optional High Output (HO), flicker-free ballast
  • High color rendering (CRI 95) with optional True Match lamps in 3200K and 5500K
  • Visual effects lamps available in 420nm blue, 550nm green for blue and green screen application
  • UL listed, CE approved
• Ballast for Double Fluorescent Light The 3.3 lb Ballast for Double Fluorescent Light from Kino Flo powers the 2' or 4' Double lamp heads via a front panel switch and has a 2-Prong Euro plug. It is flicker-free, dead silent, has 1-2 on/off lamp switching and accepts 100-240 VAC line voltage. An optional baby mount allows you to mount the ballast on a light stand on any grip gear with a 5/8" stud.
• MTP-BC41 Mount with 5/8" Curve Receiver The MTP-BC41 Mount with 5/8" Receiver from Kino Flo is a redesigned version with improved bearings for more gripping power and enhanced jaws for greater flexibility. The mount has a curved design with a baby (5/8") receiver for light stands. It fits Select, Celeb 201 and 401, Double, Diva-Lite, and Tegra fixtures.
• Extension Cable for 4-Bank Fixture - 25' Extends the range of one of the Kino Flo's 4-Bank fixture components.
  25 feet long.
• 25' Double Extension Cable Kino Flo 25' Double Extension cable, for Double System. Allows operation of the fluorescent tubes away from the ballast or fixture.
• T12 6-Lamp 2' Carry Case Kino Flo T12 6 Lamp Carry case hold up to 6- 2 ft long flourescent tubes.

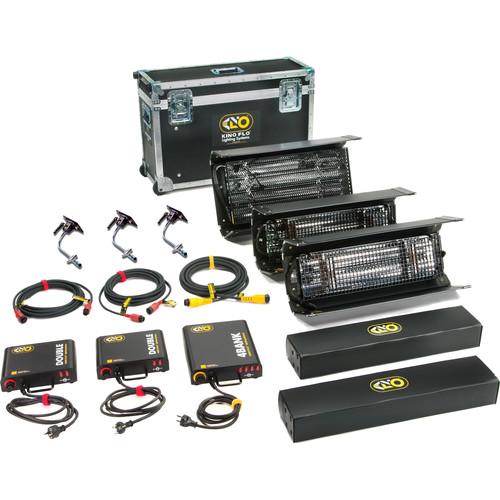

• KAS-INT3 Interview Kit Ship Case with Wheels (Black) Store, protect, and transport a Kino Flo 2' 4Bank lighting system, or two 2' double systems, with the black Kino Flo KAS-INT3 Interview Kit Ship Case with Wheels. This sturdy case features vinyl-clad plywood construction with reinforced edges and corners. Users will appreciate the custom-cut interior, recessed butterfly latches, and spring-action handles. The handles facilitate two-person carrying. Wheels on one end make travel over flat ground easier.

• Louver for 2ft 4Bank (90°)

• Limited 1-Year Warranty

• Limited 2-Year Warranty

• 2' Fixture Shell for 4Bank

• 2' 4Bank Locking Harness

• Reflector for 2' Single Fixture

• 2' 4Bank Louver (Black)

• Limited 1-Year Warranty

• Limited 2-Year Warranty

• Limited 1-Year Warranty

• 1- Foam tube holder (INSL6)

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• 4Bank Fixture (2')

  Lamps	4 x F40/T12 Lamp Sockets
  Mounting	Twist-off mount with 3/8" pin
  Photometrics	65 fc @ 4.0' (1.2 m) 17 fc @ 8.0' (2.4 m) 5.5 fc @ 14' (4.2 m) 456 lux @ 4.9' (1.5 m) 170 lux @ 8.2' (2.5 m) 69 lux @ 13.1' (4.0 m)
  Approvals and Certifications	UL listed, CE approved
  Dimensions	27 x 13 x 3.5" (69 x 33 x 9 cm) with 6.5" barndoors
  Weight	7.5 lb (3.4 kg)

  Box Dimensions (LxWxH)	27.0 x 13.5 x 3.5"

• 4Bank Ballast

  Voltage	100 - 240 VAC 50/60 Hz
  Plug	2-Pin Euro plug
  Output Frequency	25 kHz
  Amperage	F75 / 1.4 A, F40 / 1.3 A F30 / 0.8 A, F20 / 0.7 A
  Lamp Switching	1 - 4
  Output Switching	2 / 4' lamps
  Operating Temperature	14 to 122°F (-10 to +50°C)
  Dimensions	13 x 9.5 x 3.0" (33 x 24 x 7.6 cm)
  Weight	4.9 lb (2.2 kg)

  Box Dimensions (LxWxH)	15.2 x 9.7 x 2.9"

• 2' Double Fixture

  Lamps	2 x F40/T12 Lamp sockets
  Mounting	Center twist mount accepts various receivers
  Photometrics	35 fc @ 4.0' (1.2 m) 9 fc @ 8.0' (2.4 m) 3 fc @ 14' (4.2 m) 251 lux @ 4.9' (1.5 m) 92 lux @ 8.2' (2.5 m) 37 lux @ 13.1' (4.0 m)
  Approvals and Certifications	UL listed, CE approved
  Dimensions	27 x 7.5 x 3.5" (68 x 19 x 9 cm) with 6.0" (15 cm) barndoors
  Weight	4.7 lb (2.1 kg)

  Box Dimensions (LxWxH)	27.3 x 7.8 x 4.2"

• Ballast for Double Fluorescent Light

  Voltage	100-240 VAC 50/60 Hz
  Plug	2-Prong Euro plug
  Output Frequency	25 kHz
  Amperage	F75/1.3 A, F40/1.2 A F30/0.7 A, F20/0.5 A
  Lamp Switching	1-2
  Output Switching	2'/ 4'
  Operating Temperature	14 to 122°F (-10 to +50°C).
  Dimensions	9.0 x 9.5 x 3" (23 x 24 x 7.6 cm)
  Weight	3.3 lb (1.5 kg)

• MTP-BC41 Mount with 5/8" Curve Receiver

  Receiver

  5/8" (16 mm)

  Box Dimensions (LxWxH)	12.7 x 3.4 x 3.4"

• Extension Cable for 4-Bank Fixture - 25'

  Box Dimensions (LxWxH)	12.1 x 12.05 x 3.05"

• 25' Double Extension Cable

  Box Dimensions (LxWxH)	10.5 x 10.5 x 2.0"

• T12 6-Lamp 2' Carry Case

  Construction	Plastic lidded shell, clasp, foam interior
  Dimensions	26 x 6 x 3.5 in (48 x 18 x 36 cm)
  Weight	.9 lb (.41 kg)

  Box Dimensions (LxWxH)	26.05 x 5.7 x 3.5"

• KAS-INT3 Interview Kit Ship Case with Wheels (Black)

  Closure Type	Latch
  Carry and Transport Options	Recessed Handle
  Material of Construction	Wood
  Exterior Dimensions (W x H x D)	35.5 x 13 x 23" / 90 x 33 x 58.4 cm
  Weight	25.5 lb / 11.5 kg

  Box Dimensions (LxWxH)	36.0 x 24.0 x 13.0"
