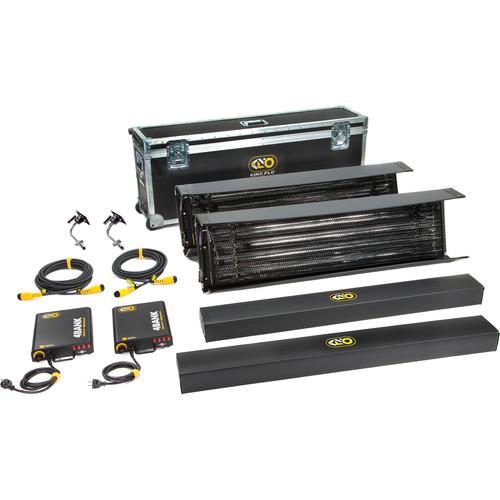

User Manual for Kino Flo 4Bank 4' Gaffer 2-Light Kit

• Product category: Fluorescent Lights Kino Flo
• Brand: Kino Flo
• Description and content of package
• Technical information and basic settings
• Frequently asked questions – FAQ
• Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
• Authorized service for Kino Flo Fluorescent Lights

Product description

• 4Bank Fixture (4') The 4' 4Bank Fixture from Kino Flo is a 4-lamp fluorescent light that outputs the equivalent of a 1,000W softlight while consuming a fraction of the traditional fixture's electrical draw. When used with a standard or DMX ballast (purchased separately) the light has 2 or 4 lamp switching to vary the power output as well as standard and High Output settings to avoid color shifting associated with dimming. Unlike other ballasts, Kino Flo's optional ballasts can be located up to 75' from the head with no power loss, solving the problem of adjustments when the light is hung overhead. Optional True Match lamps that feature a high CRI of 95 are available in 3200K or 5600K color balance.
  Benefits
  • 4-Lamp remote fixture with built-in barndoors
  • Fixture includes removable lamp harness, reflector and louver
  • Same fixture takes daylight and tungsten lamps, plus visual effects color lamps
  • Mounts to stand, light enough to be hand-held or taped to a wall
  • Removable optional center mount
  • Optional High Output (HO), flicker-free ballasts
  • High color rendering (CRI 95) with optional True Match lamps in 3200K and 5500K
  • Visual effects lamps available in 420nm blue, 550nm green for blue and green screen application
  • UL listed, CE approved
• 4Bank Ballast The 4Bank Ballast from Kino Flo is designed to power the 4' or 2' versions of the 4-lamp 4Bank fluorescent fixture. The silent, flicker-free ballast, specifically developed for film and video production, has 4-lamp on/off switching, runs on 100-240 VAC current and can power the fixture up to 75' away using optional head-to-ballast extension cables. It has a special Select switch to raise or drop wattage for output and color control.
  Benefits
  • • High output, flicker-free ballast
    • Universal input voltage from 100-240 VAC can be used anywhere in the world
    • Instant-on, dead quiet
    • Individual lamp switching - no color shift
    • HO/Std switching
    • Low amperage draw
    • Same ballast runs 4' and 2' lamps
    • UL listed, CE approved
• MTP-BC41 Mount with 5/8" Curve Receiver The MTP-BC41 Mount with 5/8" Receiver from Kino Flo is a redesigned version with improved bearings for more gripping power and enhanced jaws for greater flexibility. The mount has a curved design with a baby (5/8") receiver for light stands. It fits Select, Celeb 201 and 401, Double, Diva-Lite, and Tegra fixtures.
• Extension Cable for 4-Bank Fixture - 25' Extends the range of one of the Kino Flo's 4-Bank fixture components.
  25 feet long.
• T12 6-Lamp 4' Carry Case A 4 ft plastic case used to hold up to 6- 4' flourescent tubes in foam.
• KAS-GAF2 Gaffer Kit Ship Case The Kino Flo KAS-GAF2 Gaffer Kit Ship Case (Black with Chrome) is a vinyl clad plywood case with reinforced edges and corners. It has a custom-cut padded interior that is designed to carry two 4.0' four bank lighting systems. The case has recessed butterfly latches and recessed spring-action handles.
  Construction
  • • Vinyl clad plywood exterior
    • Interior custom-cut padding
    • Reinforced edges and corners
    • Recessed butterfly latches
  • Recessed spring-action handles
  • Compatible with 2 Kino Flo 4.0' four bank lighting systems

• Louver for 4ft 4Bank (90°)

• Limited 1-Year Warranty

• Limited 2-Year Warranty

• Limited 1-Year Warranty

• 2- foam holders (INSL6)

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• 4Bank Fixture (4')

  Lamps	4 x F75/T12 Lamp Sockets
  Mounting	Twist-off mount with 3/8" pin
  Photometrics	173 fc @ 4.0' (1.2 m) 49 fc @ 8.0' (2.4 m) 17 fc @ 14' (4.2 m) 1,303 lux @ 4.9' (1.5) 503 lux @ 8.2' (2.5 m) 208 lux @ 13.1' (4.0 m)
  Approvals and Certifications	UL listed, CE approved
  Dimensions	52 x 13 x 3.5" (132 x 33 x 9 cm) with 6.5" barndoors
  Weight	11.5 lb (5.2 kg)

  Box Dimensions (LxWxH)	51.0 x 13.0 x 4.0"

• 4Bank Ballast

  Voltage	100 - 240 VAC 50/60 Hz
  Plug	2-Pin Euro plug
  Output Frequency	25 kHz
  Amperage	F75 / 1.4 A, F40 / 1.3 A F30 / 0.8 A, F20 / 0.7 A
  Lamp Switching	1 - 4
  Output Switching	2 / 4' lamps
  Operating Temperature	14 to 122°F (-10 to +50°C)
  Dimensions	13 x 9.5 x 3.0" (33 x 24 x 7.6 cm)
  Weight	4.9 lb (2.2 kg)

  Box Dimensions (LxWxH)	15.2 x 9.7 x 2.9"

• MTP-BC41 Mount with 5/8" Curve Receiver

  Receiver

  5/8" (16 mm)

  Box Dimensions (LxWxH)	12.7 x 3.4 x 3.4"

• Extension Cable for 4-Bank Fixture - 25'

  Box Dimensions (LxWxH)	12.1 x 12.05 x 3.05"

• T12 6-Lamp 4' Carry Case

  Construction	Plastic lidded shell, clasp, foam interior
  Dimensions	50.5 x 5.5 x 3.5 in (13 x 14 x 89 cm)
  Weight	2lbs (.9 kg)

  Box Dimensions (LxWxH)	50.2 x 5.5 x 3.5"

• KAS-GAF2 Gaffer Kit Ship Case

  Closure Type	Latch
  Carry and Transport Options	Recessed Handle
  Material of Construction	Wood
  Exterior Dimensions (W x H x D)	13 x 21.5 x 56.5" / 13 x 54.6 x 143.5 cm
  Weight	31 lb / 14 kg

  Box Dimensions (LxWxH)	56.5 x 22.0 x 13.0"
