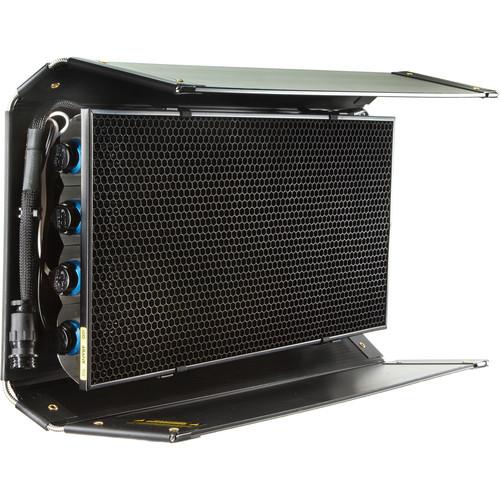

User Manual for Kino Flo 4Bank Fixture Click to enlarge the picture
Contents of the user manual for the Kino Flo 4Bank Fixture
- Product category: Fluorescent Lights Kino Flo
- Brand: Kino Flo
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Kino Flo Fluorescent Lights
|
User manual for the Kino Flo 4Bank Fixture contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Kino Flo product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Kino Flo user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Kino Flo product will considerably shorten its lifespan!
|
Product description The 2' 4Bank Fixture from Kino Flo is a 4-lamp fluorescent light that outputs the equivalent of a 500W softlight while consuming a fraction of the traditional fixture's electrical draw. When used with a standard or DMX ballast (purchased separately) the light has 2 or 4 lamp switching to vary the power output as well as standard and High Output settings to avoid color shifting associated with dimming. Unlike other ballasts, Kino Flo's optional ballasts can be located up to 75' from the head with no power loss, solving the problem of adjustments when the light is hung overhead. Optional True Match lamps that feature a high CRI of 95 are available in 3200K or 5600K color balance. - Benefits
-
- 4-Lamp remote fixture with built-in barndoors
- Fixture includes removable lamp harness, reflector and louver
- Same fixture takes daylight and tungsten lamps, plus visual effects color lamps
- Mounts to stand, light enough to be hand-held or taped to a wall
- Removable optional center mount
- Optional High Output (HO), flicker-free ballasts
- High color rendering (CRI 95) with optional True Match lamps in 3200K and 5500K
- Visual effects lamps available in 420nm blue, 550nm green for blue and green screen application
- UL listed, CE approved
In the Box Kino Flo 4Bank Fixture (2') Louver for 2ft 4Bank (90°) tdedyzrftcabt Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Kino Flo 4Bank Fixture in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersKino Flo 4Bank Specs | Lamps | 4 x F40/T12 Lamp Sockets | | Mounting | Twist-off mount with 3/8" pin | | Photometrics | 65 fc @ 4.0' (1.2 m)
17 fc @ 8.0' (2.4 m)
5.5 fc @ 14' (4.2 m)
456 lux @ 4.9' (1.5 m)
170 lux @ 8.2' (2.5 m)
69 lux @ 13.1' (4.0 m) | | Approvals and Certifications | UL listed, CE approved | | Dimensions | 27 x 13 x 3.5" (69 x 33 x 9 cm) with 6.5" barndoors | | Weight | 7.5 lb (3.4 kg) | | | | Package Weight | 5.85 lb | | Box Dimensions (LxWxH) | 27.0 x 13.5 x 3.5" |
