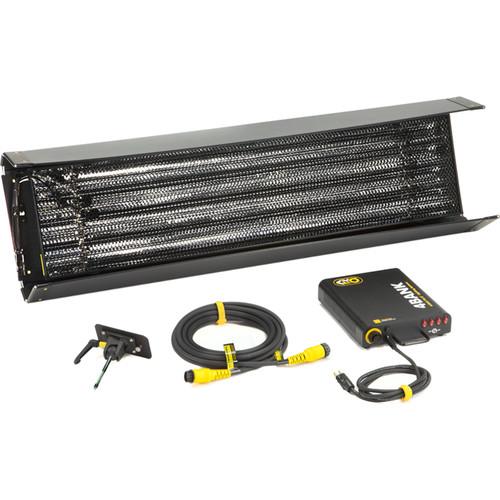

User Manual for Kino Flo 4Bank Select 4' 1-Light System Click to enlarge the picture
Contents of the user manual for the Kino Flo 4Bank Select 4' 1-Light
- Product category: Fluorescent Lights Kino Flo
- Brand: Kino Flo
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Kino Flo Fluorescent Lights
|
User manual for the Kino Flo 4Bank Select 4' 1-Light contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Kino Flo product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Kino Flo user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Kino Flo product will considerably shorten its lifespan!
|
Product description The 4Bank Select 4' 1-Light System from Kino Flo is a broad, diffuse light source that's equally at home in the studio or on the road. The system includes the 4', 4-lamp 4Bank fixture, multi-voltage high output ballast, mount with 3/8" pin, 90 degree grid, and a 25' head to ballast cable.The reintroduced 4Bank is a 4-lamp fixture that draws only 2.6A @ 120 VAC yet outputs the equivalent of a 1,000W traditional softlight. Barndoors are built into the 4Bank to control the light output and a 90 degree grid is included for further control. The 11.5 lb fixture is light enough to be taped or nailed to a wall or use the included long-neck mount with 3/8" pin for traditional light stand support. Convenience features include color coded connectors. Separately purchased True Match lamps ensure a CRI rating of 95.The BAL-427 ballast can run the 4' or 2' 4Bank fixtures and the front panel has individual on/off control for each lamp. It's lighter weight than its predecessor, yet retains all the performance features of the previous model. The unit is flicker-free and dead quiet when running, while HO (High Output) switching sends the optimal current to the lamp head so that it's as bright as possible. The BAL-427 is rated 100-240 VAC for worldwide use. - Benefits
-
- 4-Lamp remote ballast fixture with built-in barndoors
- Fixture includes removable Lamp Harness, Reflector and Louver
- Same fixture takes daylight and tungsten lamps, plus visual effects color lamps
- Mounts to stand, light enough to be hand-held or taped to a wall
- Removable center mount
- High output, flicker-free ballasts
- Universal input voltage from 100-240 VAC can be used anywhere in the world
- Instant-on, dead quiet
- Individual lamp switching - no color shift
- HO/Standard switching
- Low amperage draw of 2.6A @ 120 VAC, 1.4A @ 230 VAC
- Operates at 1/3 the power of conventional tungsten softlights
- Same ballast runs 4' and 2' lamps
- High color rendering (CRI 95) with optional True Match lamps in 3200K and 5500K
- Visual effects lamps available in 420nm blue, 550nm green for blue and green screen application
- UL listed, CE approved
In the Box Kino Flo 4Bank Select 4' 1-Light System CFX-484 4' 4Bank Fixture Eggcrate Louver for 4' 4-Bank Fixture - Black baqabbsfewerutd 4Bank Ballast 41K Mount with 3/8" Pin Extension Cable for 4-Bank Fixture - 25' Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Kino Flo 4Bank Select 4' 1-Light System in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersKino Flo 4Bank Specs | | | Input Voltage | 100-240 VAC, 50/60 Hz | | Lamps | T-12 True Match fluorescent lamps | | Mounting | 5/8" (16 mm) | | Dimensions | 52 x 13 x 3.5" (132 x 33 x 9.0 cm)
52 x 13 x 6.5" (132 x 33 x 16.5 cm) With barndoors | | Weight | 11.5 lb (5.2 kg) | | | | Input Voltage | 100-240 VAC, 50/60 Hz | | Output Frequency | 25 kHz | | Amperage | 2.6A @ 120 VAC, 1.4A @ 230 VAC | | Lamp Switching | Individual lamp switching | | Dimensions | 13 x 9.5 x 3" (33 x 24 x 7.6 cm) | | Weight | 4.9 lb (2.2 kg) | | | | Package Weight | 21.8 lb | | Box Dimensions (LxWxH) | 52.5 x 13.0 x 7.5" |
