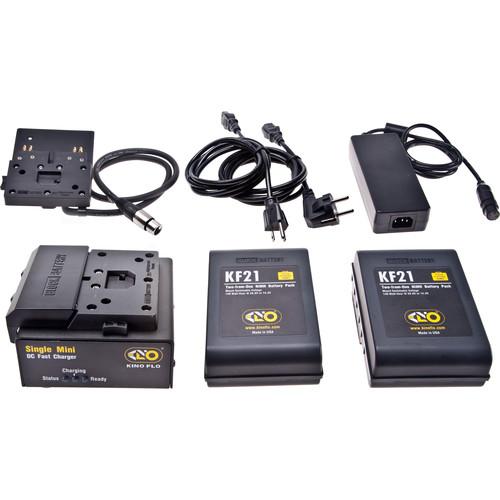

User Manual for Kino Flo Block KF21 Single Battery System with 2 NiMH Batteries Click to enlarge the picture
Contents of the user manual for the Kino Flo Block KF21 Single Battery
- Product category: Lighting Batteries Kino Flo
- Brand: Kino Flo
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Kino Flo Lighting Batteries
|
User manual for the Kino Flo Block KF21 Single Battery contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Kino Flo product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Kino Flo user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Kino Flo product will considerably shorten its lifespan!
|
Product description Made to charge the KF21 nickel metal-hydride battery, the Block/KF21 Single Battery System with 2 NiMH Batteries from Kino Flo and BlockBattery will recharge the included KF21 batteries in 1.5 hours. The system includes a Universal Power Supply with 100-240 VAC input and 48 V, 2.5 A output. Thanks to the included Mafer Mount, the batteries can be mounted to a stand using a Mafer Clamp. The system is compatible with Celeb 250 LED DMX, Diva-Lite 20 and 30 LED DMX, FreeStyle 31 and 21 LED DMX, and Select 20 and 30 LED DMX fixtures. - Single Fast Charger with Universal Power Supply Made to charge the KF21 nickel metal-hydride battery, the Single Fast Charger System with Universal Power Supply from Kino Flo and BlockBattery has a 3-LED charge status indicator and will recharge the KF21 in 1.5 hours, far shorter than most lithium-ion batteries. The system includes a Universal Power Supply with 100-240 VAC input and 48 V, 2.5 A output. The system is compatible with Celeb 250 LED DMX, Diva-Lite 20 and 30 LED DMX, FreeStyle 31 and 21 LED DMX, and Select 20 and 30 LED DMX fixtures.
- KF21 Nickel Metal-Hydride Battery Partnering with BlockBattery, Kino Flo has created the KF21 Nickel Metal-Hydride Battery to power their LED fixtures. The 140Wh, 28.8V battery provides 1 hour 10 minutes run time for compatible light fixtures and recharges in 1.5 hours in the charger that's made for it. Battery adapters may be used to access 14.4V for products that have 14.4V inputs. The KF21 is compatible with Celeb 250 LED DMX, Diva-Lite 20/30 LED DMX, FreeStyle 31/21 LED DMX, and Select 20/30 LED DMX light fixtures.
- Mafer Mount The KF21 Mafer Mount from Kino Flo is a handy way to provide power to the Celeb 250 LED, Diva-Lite 20/30 LEDs, FreeStyle 31/21 LEDs, Select 20/30 LEDs and Celeb 850 LED lights. The mount attaches to a stand via the mount's 5/8" receiver and a Mafer or similar clamp. The LED light itself, can then attach to the stand's 5/8" pin. The 28.8V K21 battery attaches to a housing built into the mount and the included 3-pin, 3' XLR output cable is then attached to the light. The arrangement keeps the battery off the floor and places it and the stand in line with the light and its controls.
In the Box Bundle Items Single Fast Charger with Universal Power Supply wcxwxwvqzey - Universal Power Supply for Single Fast Charger
KF21 Nickel Metal-Hydride Battery Mafer Mount
Also Includes Table of Contents
|
Upload User Manual
Have you got an user manual for the Kino Flo Block KF21 Single Battery System with 2 NiMH Batteries in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - Single Fast Charger with Universal Power Supply
| | | Power | Input: 48 VDC, 3 A | | Dimensions | 5.5 x 5.5 x 3.5" (14 x 14 x 9.0 cm) | | Weight | 1.5 lb (0.7 kg) | | | | Power | DC/DC, 3-Pin XLR
Input: 100-240 VAC, 50/60 Hz, 1.4 A
Output: 48 V, 2.5 A, 120 W max | | Dimensions | 6.5 x 2.5 x 1.5" (16.5 x 6.5 x 4.0 cm) | | Weight | 2.0 lb (0.9 kg) | | | | Compatible With | Celeb 250 LED DMX
Diva-Lite 20 and 30 LED DMX
FreeStyle 31 and 21 LED DMX
Select 20 and 30 LED DMX | | | | Box Dimensions (LxWxH) | 12.1 x 10.7 x 10.1" | - KF21 Nickel Metal-Hydride Battery
| Compatibility | Celeb 250 LED DMX
Diva-Lite 20 and 30 LED DMX
FreeStyle 31 and 21 LED DMX
Select 20 and 30 LED DMX | | Type | NiMH (Nickel Metal-Hydride) | | Voltage | 28.8 V | | Watt Hours | 140 Wh or 5.0 amp hours @ 28 VDC | | Charge Time | 1.5 h | | Run Time | Approximately 1 h 10 min with compatible lights at full power | | Restriction on Hazardous Substances | Unrestricted for air and ground transport | | Storage | 41-77° (5-25°C) | | Dimensions | 6 x 4.5 x 3" (15 x 11 x 8 cm) | | Weight | 4.5 lb (2 kg) | | | | Box Dimensions (LxWxH) | 6.7 x 5.4 x 3.3" | - Mafer Mount
| Dimensions | 5/8" (16 mm) Pin
5/8" (16 mm) Receiver Output Cord: 3.0' (0.9 m) | | Connection | 3-Pin XLR | | Material of Construction | Metal | | | | Box Dimensions (LxWxH) | 6.8 x 5.5 x 3.3" |
