Kino Flo Celeb 250 DMX LED

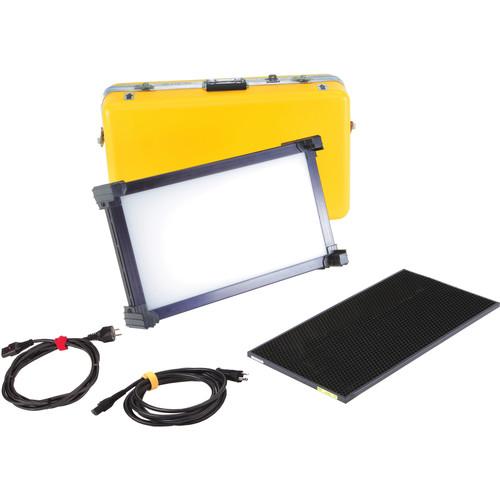

User Manual for Kino Flo Celeb 250 DMX LED Fixture with Center Mount Kit with Flight Case

• Product category: LED Lights Kino Flo
• Brand: Kino Flo
• Description and content of package
• Technical information and basic settings
• Frequently asked questions – FAQ
• Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
• Authorized service for Kino Flo LED Lights

Product description

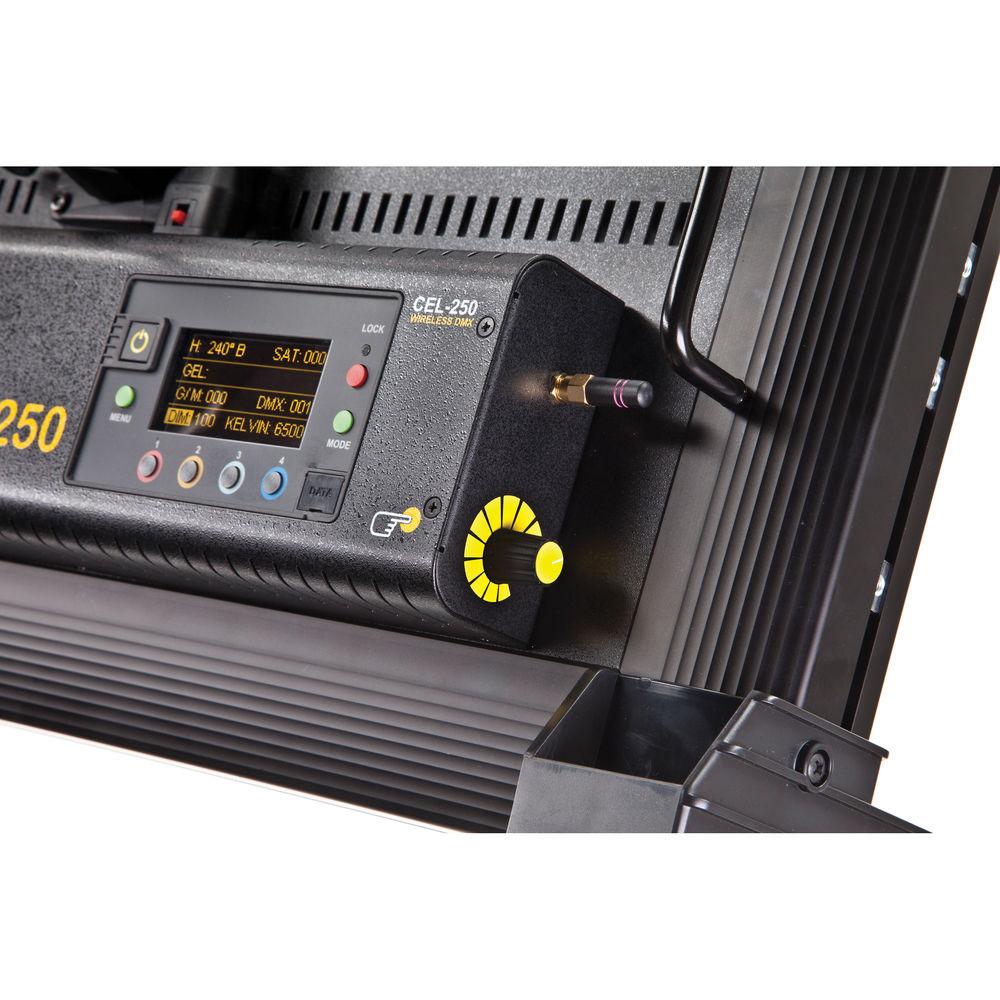

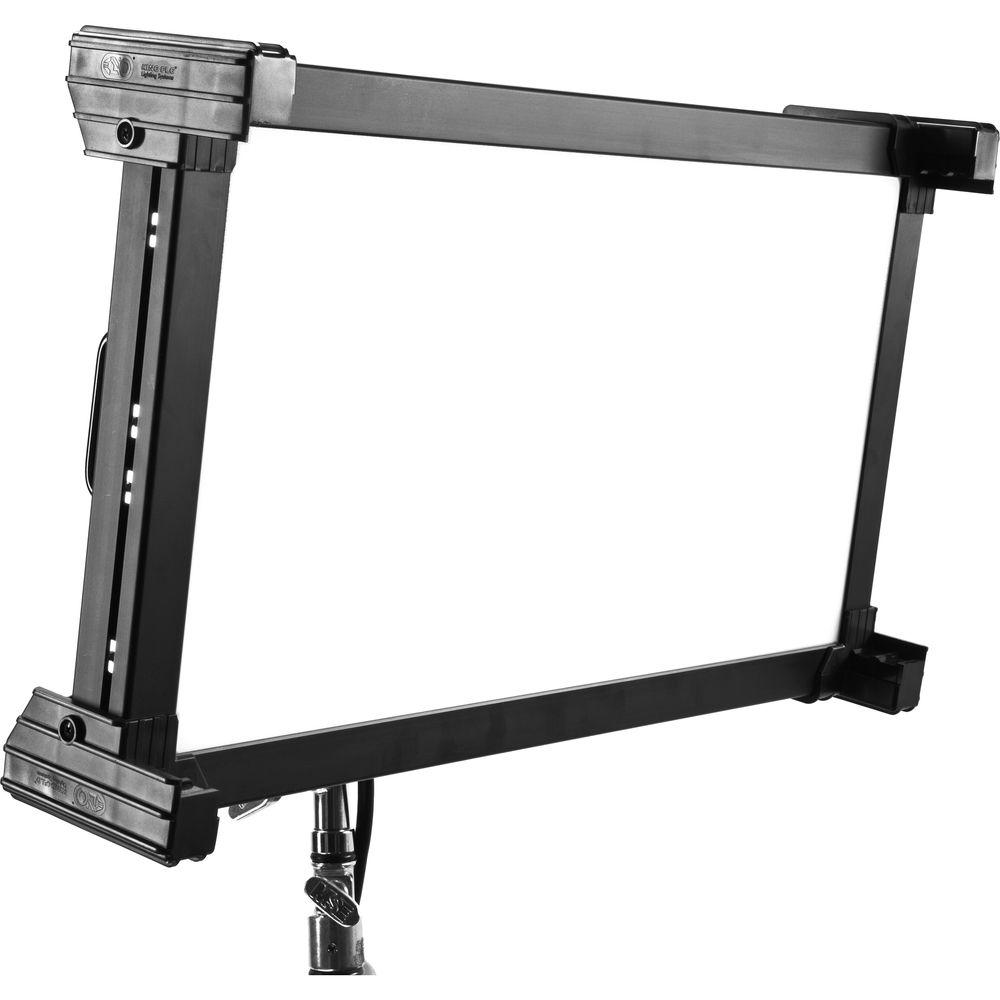

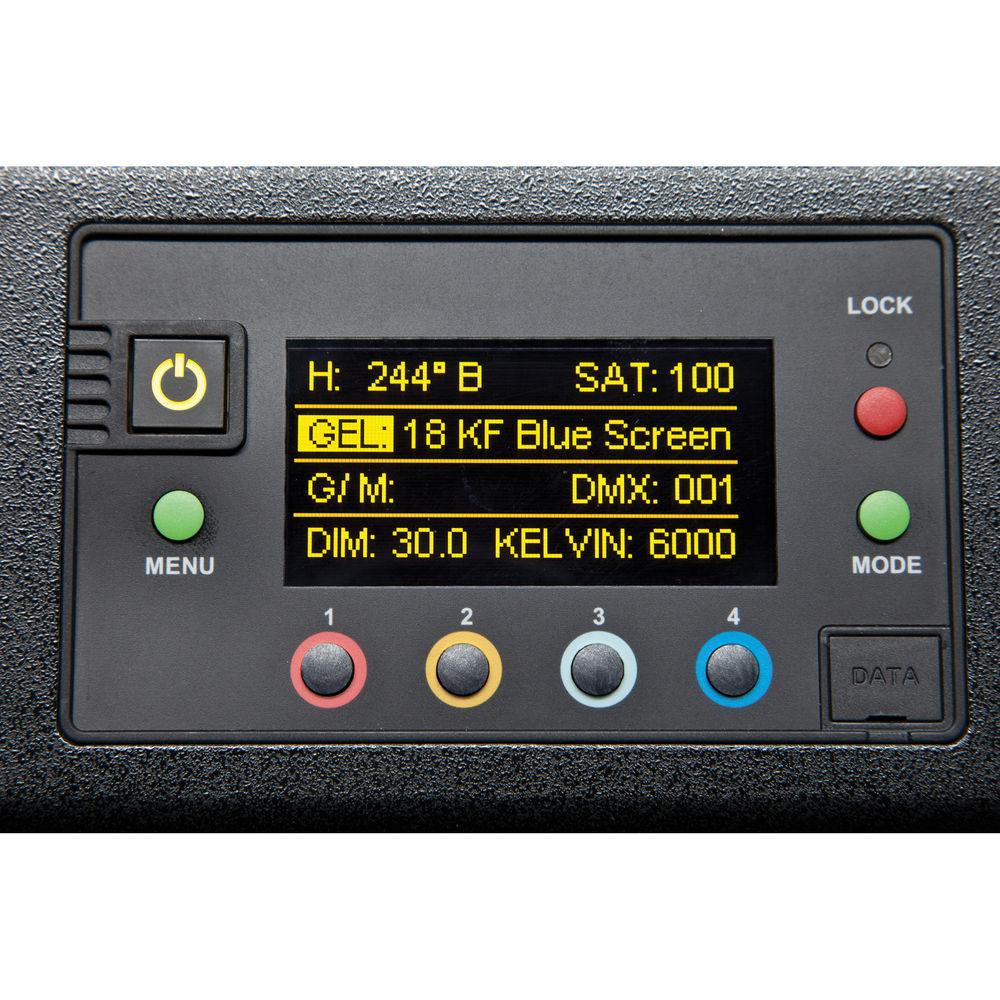

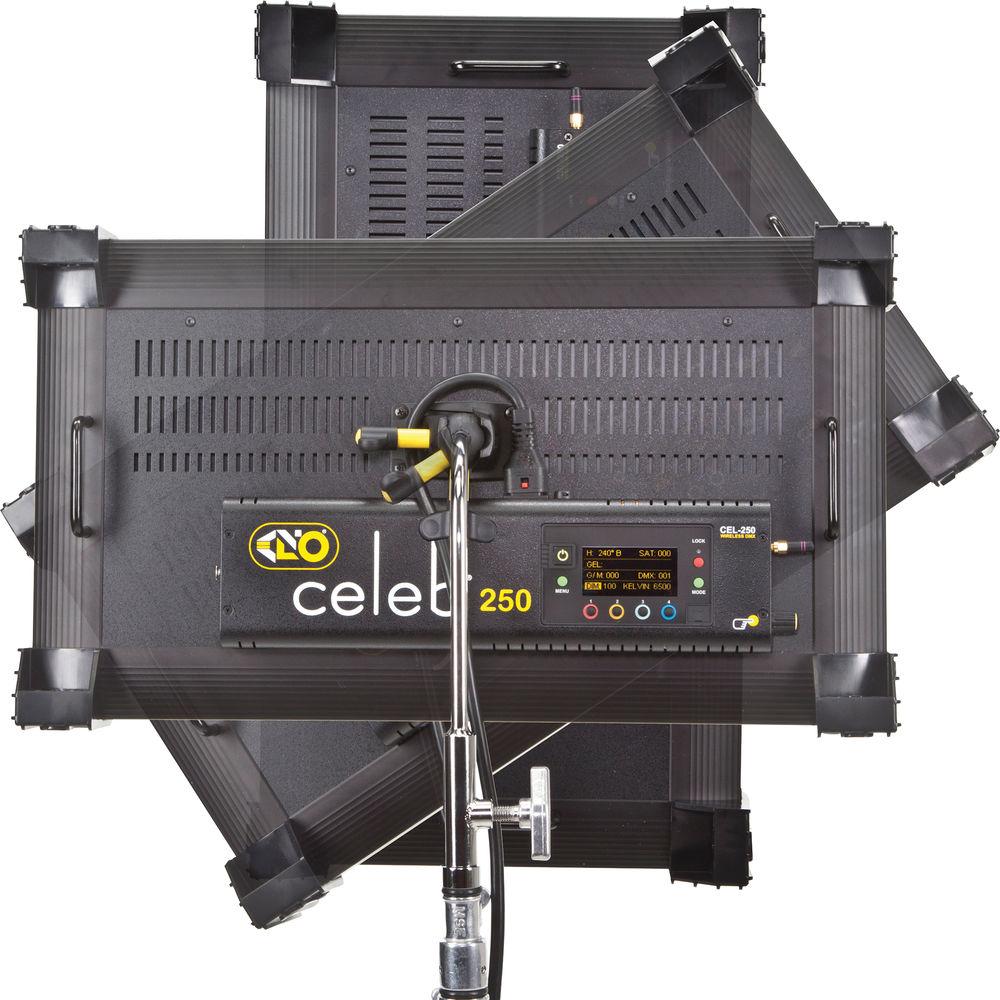

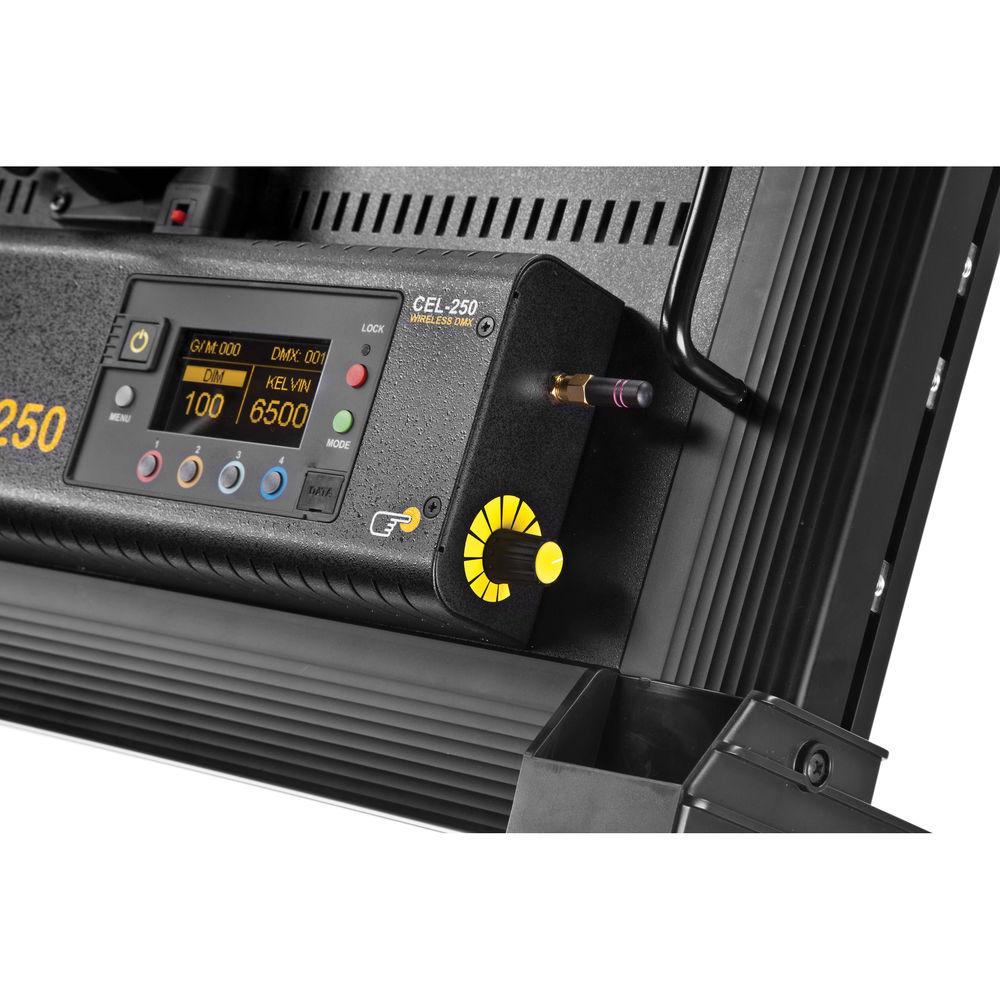

• Celeb 250 DMX LED Fixture with Center Mount Flexibility and extensive control options are key to the production of the Celeb 250 DMX Center Mount LED Fixture from Kino Flo. The 24 x 14 x 5" panel uses three menus with features that can be controlled on the light, via traditional wired DMX or by Lumen Radio wireless DMX. The White menu allows control of 1-100% dimming, color control from 2700-6500K, and Green/Magenta control. There are two Color menus. The first offers an extended color range from 2500-9900K. It's got a channel called "Gel" that offers multiple presets for light conditions such as mercury-vapor and 100 often used gel filters. There are also channels for Hue Angle and Saturation that work together in selecting a specific color and determining the intensity of it. The second color menu provides RGB (Red, Green, Blue) control to permit a user-selected combination to obtain any color in the visible spectrum. The Celeb 250 DMX is ready for worldwide use thanks to its 100-240 VAC power supply. The light comes with a 90-degree honeycomb grid to tighten its light beam and limit spill light. This version of the light has a center mount that includes a ball and socket design and lock-down knob. It allows unrestricted 360° orientation and has a 5/8" receceiver.
  Benefits
  • Kelvin presets
  • Dial-in color temperature control between 2700K-6500K
  • Extended color palette from 2500-9900K
  • Green/magenta control
  • Hue angle and saturation adjustments
  • RGB control
  • Works with apps with predetermined RGB presets or color wheels
  • Can use preset buttons to store custom Kelvin settings
  • Light levels do not change when selecting Kelvin settings
  • No color shift while dimming
  • Color-correct with high color rendering index (CRI 95)
  • Universal input 100-240 VAC or 24 VDC
  • Energy efficient; draws 1.2A, 120 VAC and 6.25A, 24 VDC
  • Flicker-free, quiet operation
  • Full range onboard and DMX dimming
  • DMX wireless link (Lumen Radio)
  • DMX auto terminate

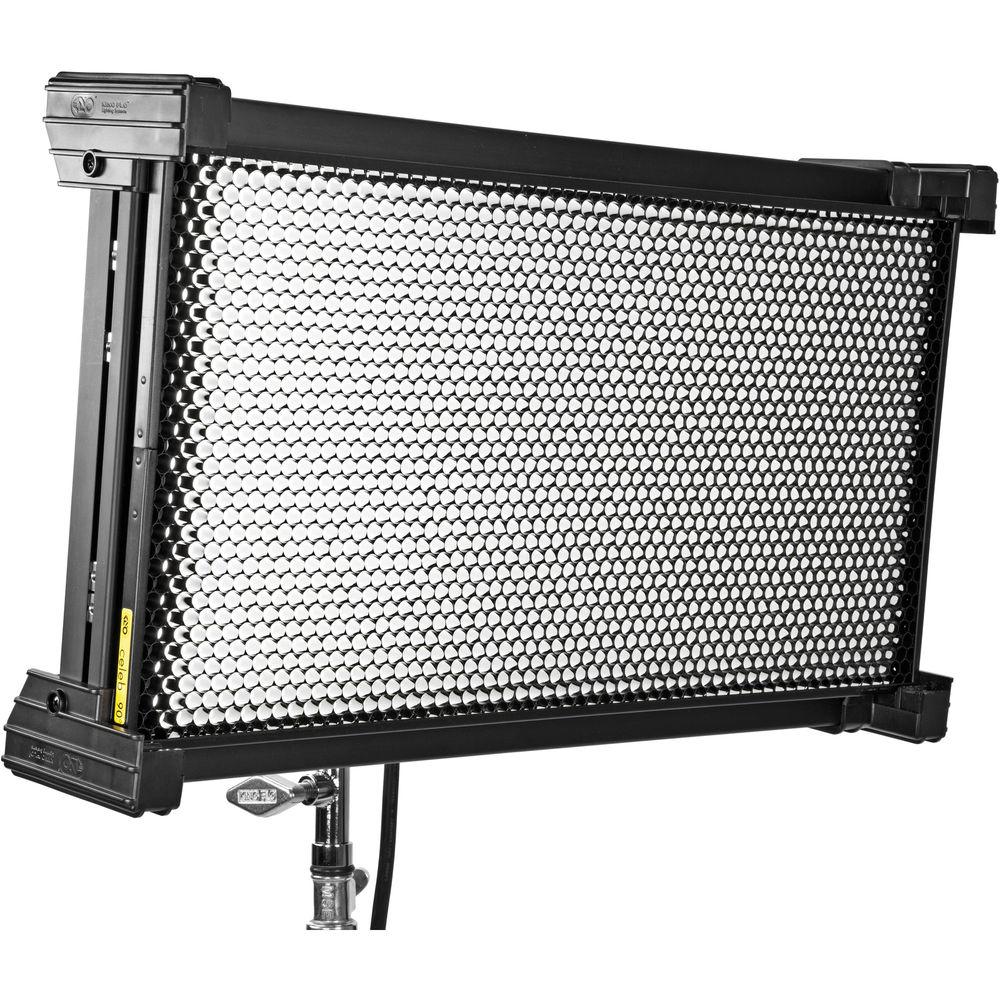

  • Fixture includes removable 90° honeycomb louver
  • 60° honeycomb louver also available separately
  • Lightweight at 15 lb
  • Slim profile with dimensions of 24 x 14 x 5"

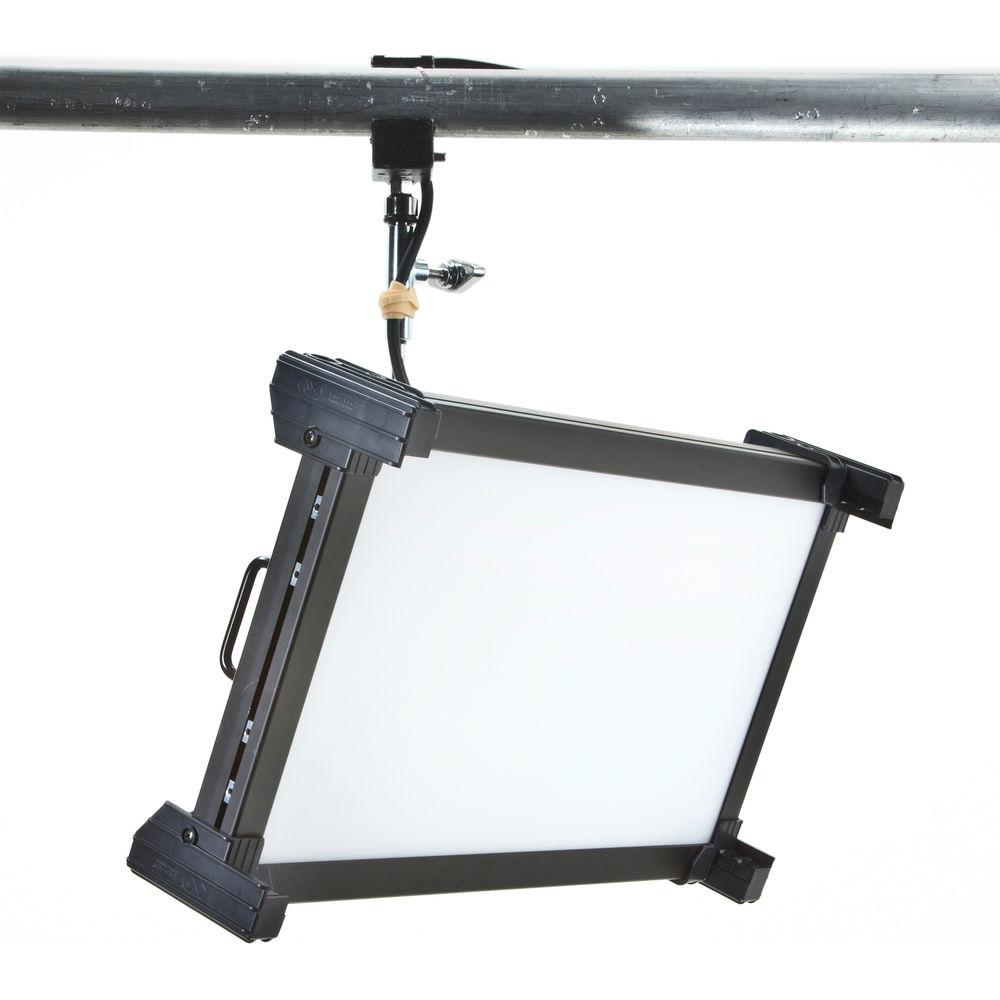

  • Accessory molded corners also used for four-point rope hang
  Photometrics
  • 185 fc at 4.0' (1.2 m)
    48 fc at 8.0' (2.4 m)
    12 fc at 16' (4.9 m)

    2990 lux at 3.3' (1.0 m)
    763 lux at 6.6' (2.0 m)
    198 lux at 13.0' (4.0 m)
• KAS-CE2 Flight Case (Yellow) The yellow Kino Flo KAS-CE2 Flight Case is designed for use with the Celeb 200 LED lighting system. A versatile case it closes with latches and has a top handle. The clamshell case holds one Celeb center mount fixture and an additional louver. This case is a good choice for local travel such as in small vehicle or production truck.

• Center Mount

• MTP-LBC 41 Lollipop with Baby Receiver Curve (16mm)

• 90° Honeycomb Louver for Celeb 201 LED Fixture

• Limited 1-Year Warranty

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• Celeb 250 DMX LED Fixture with Center Mount

  Input Voltage	100-240 VAC, 50/60 Hz, 145 W, 1.2 A 240-100 VAC, 50/60 Hz, 143 W, 0.7 A 18-36 VDC, 150 W
  Color Temperature	White Menu: 2700-6500K Color Menu: 2500-9900K
  DMX	Yes, via cable or onboard wireless Lumen Radio

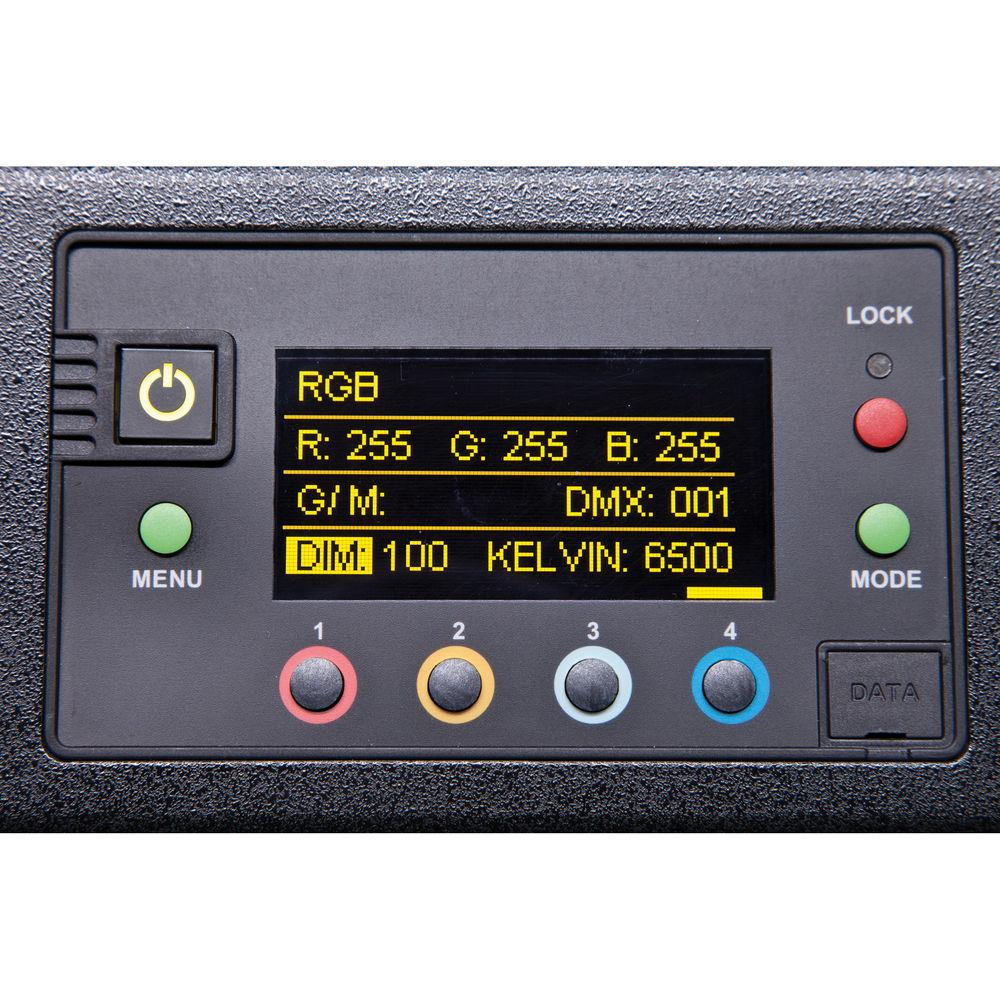

  Color Controls	Kelvin temperature Color presets such as blue or green screen Hue Angle Saturation RGB control
  Dimming Range	100-1%
  Dimensions	24 x 14 x 5.0" / 61 X 35.5 x 12.7 cm
  Weight	15 lb / 6.8 kg

  Box Dimensions (LxWxH)	31.2 x 18.1 x 10.0"

• KAS-CE2 Flight Case (Yellow)

  Closure Type	Latch
  Carry and Transport Options	Top Handle
  Exterior Dimensions (W x H x D)	29 x 10.5 x 17" / 73.6 x 26.6 x 43.1 cm
  Weight	16 lb / 7.3 kg

  Box Dimensions (LxWxH)	29.5 x 17.75 x 10.25"
