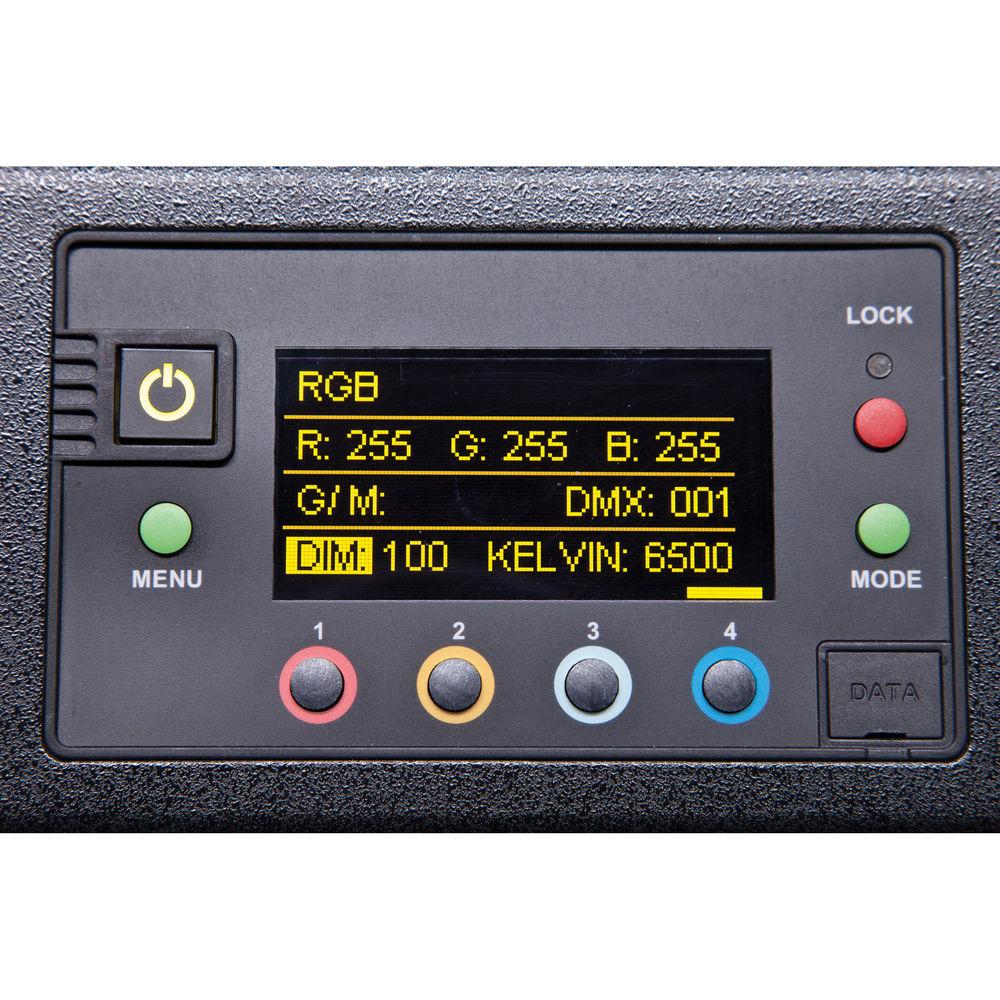

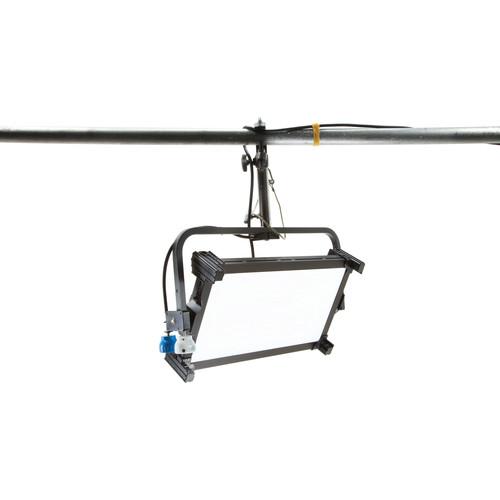

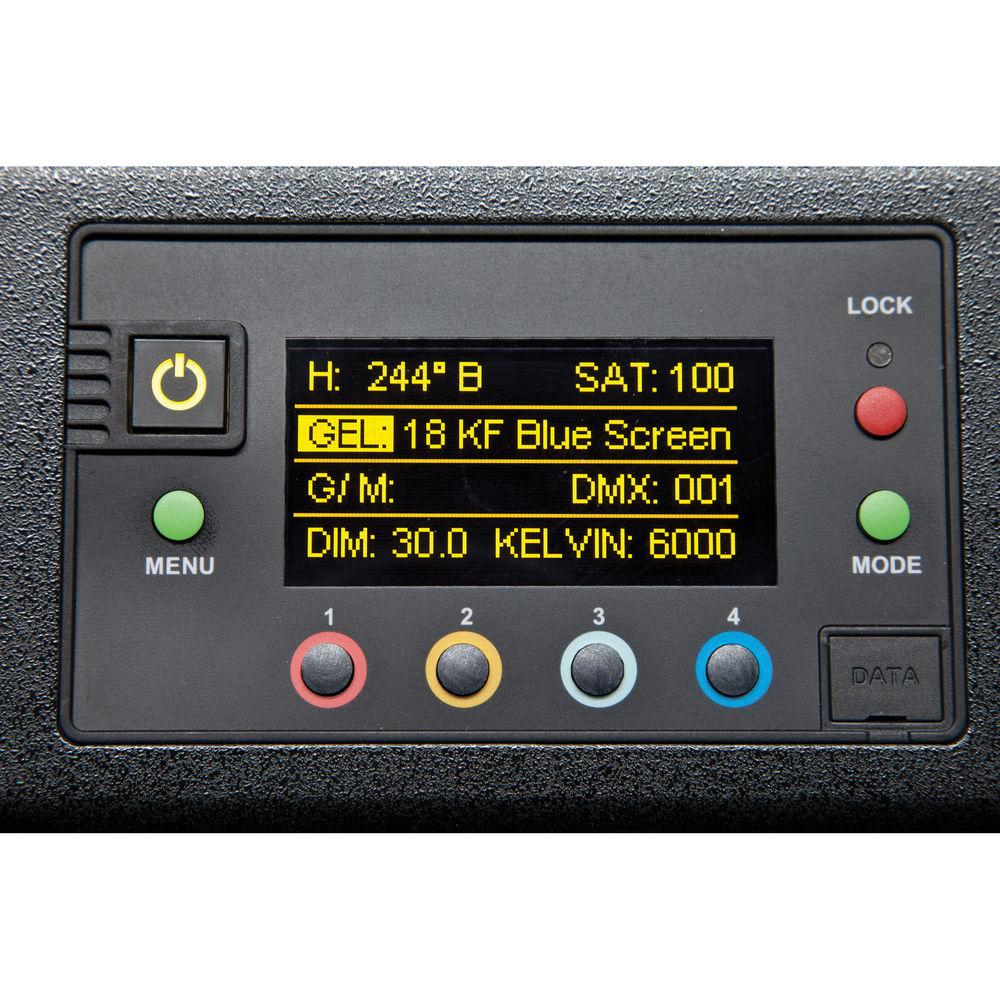

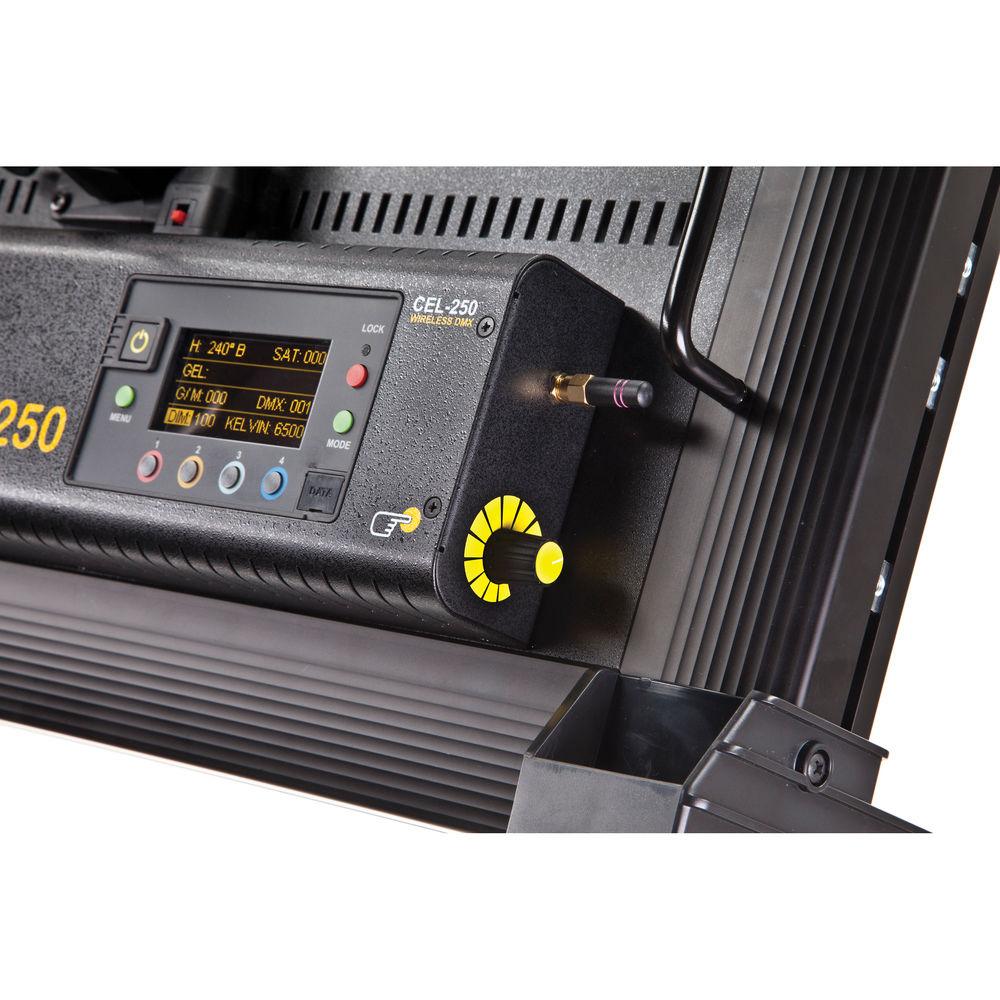

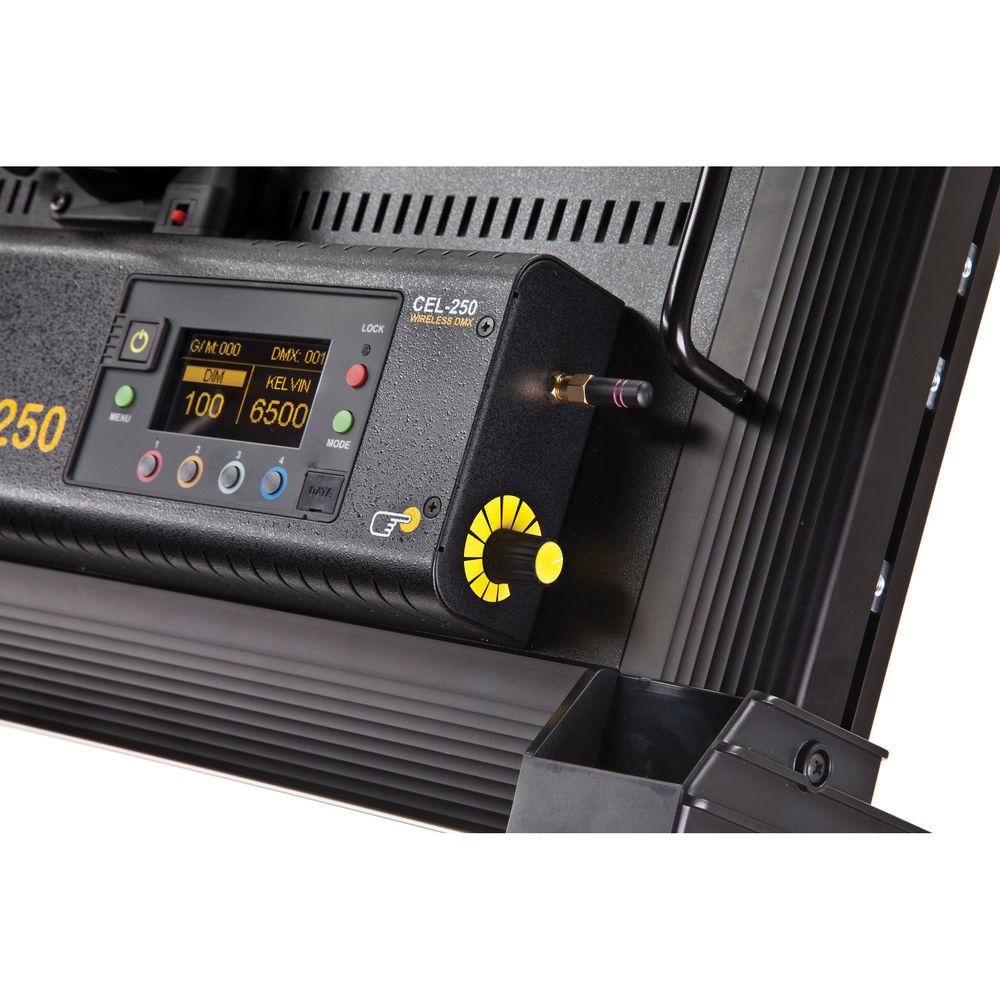

Product description Flexibility and extensive control options are key to the production of the Celeb 250 DMX Pole-Operated Mount LED Fixture from Kino Flo. The 29 x 16.5 x 6" panel uses three menus with features that can be controlled on the light, via traditional wired DMX or by Lumen Radio wireless DMX. The White menu allows control of 1-100% dimming, color control from 2700-6500K, and Green/Magenta control. There are two Color menus. The first offers an extended color range from 2500-9900K. It's got a channel called "Gel" that offers multiple presets for light conditions such as mercury-vapor and 100 often used gel filters. There are also channels for Hue Angle and Saturation that work together in selecting a specific color and determining the intensity of it. The second color menu provides RGB (Red, Green, Blue) control to permit a user-selected combination to obtain any color in the visible spectrum. The Celeb 250 DMX is ready for worldwide use thanks to its 100-240 VAC power supply. The light comes with a 90-degree honeycomb grid to tighten its light beam and limit spill light. This version of the light has a pole-operated mount. Ideal for hanging overhead, the light's pan and tilt adjustments are done from below with a long pole. - Benefits
-
- Kelvin presets
- Dial-in color temperature control between 2700K-6500K
- Extended color palette from 2500-9900K
- Green/magenta control
- Hue angle and saturation adjustments
- RGB control
- Works with apps with predetermined RGB presets or color wheels
- Can use preset buttons to store custom Kelvin settings
- Light levels do not change when selecting Kelvin settings
- No color shift while dimming
- Color-correct with high color rendering index (CRI 95)
- Universal input 100-240 VAC or 24 VDC
- Energy efficient; draws 1.2A, 120 VAC and 6.25A, 24 VDC
- Flicker-free, quiet operation
- Full range onboard and DMX dimming
- DMX wireless link (Lumen Radio)
- DMX auto terminate

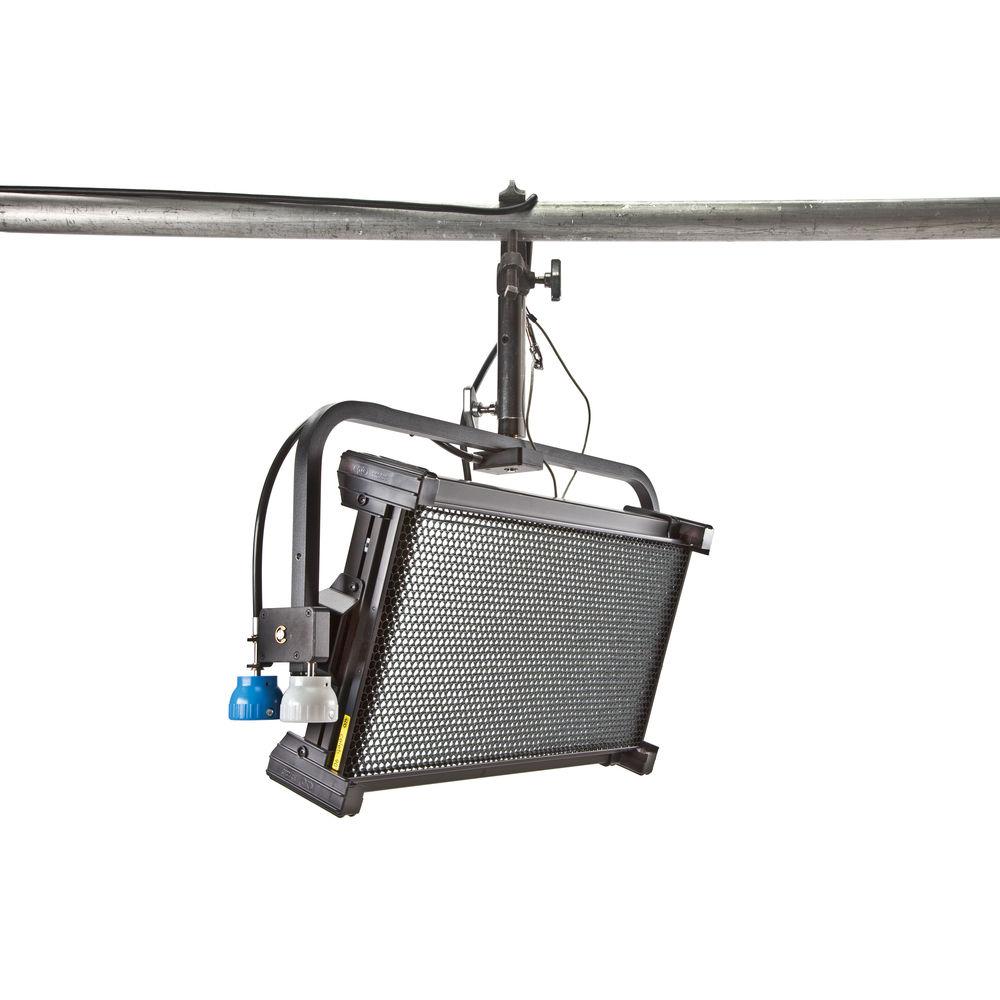

- Fixture includes removable 90° honeycomb louver
- 60° honeycomb louver also available separately
- Lightweight at 17 lb
- Slim profile with dimensions of 29 x 16.5 x 6"
- Accessory molded corners also used for four-point rope hang
- Photometrics
- 185 fc at 4.0' (1.2 m)
48 fc at 8.0' (2.4 m)
12 fc at 16' (4.9 m)
2990 lux at 3.3' (1.0 m)
763 lux at 6.6' (2.0 m)
198 lux at 13.0' (4.0 m) In the Box Kino Flo Celeb 250 DMX LED Fixture with Pole-Operated Mount Pole-Operated Mount 90° Honeycomb Louver for Celeb 201 LED Fixture Limited 1-Year Warranty User Manual PDF 4.1mb Table of Contents
|
Upload User Manual
Have you got an user manual for the Kino Flo Celeb 250 DMX LED Fixture with Pole-Operated Mount in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersKino Flo 250 LED DMX Specs | Input Voltage | 100-240 VAC, 50/60 Hz, 145 W, 1.2 A
240-100 VAC, 50/60 Hz, 143 W, 0.7 A
18-36 VDC, 150 W | | Color Temperature | White Menu: 2700-6500K
Color Menu: 2500-9900K | | DMX | Yes, via cable or onboard wireless Lumen Radio | | Color Controls | Kelvin temperature
Color presets such as blue or green screen
Hue Angle
Saturation
RGB control | | Dimming Range | 100-1% | | Dimensions | 29 x 16.5 x 6.0" / 74 X 42 x 15.2 cm | | Weight | 17 lb / 7.7 kg | | | | Package Weight | 22.5 lb | | Box Dimensions (LxWxH) | 31.25 x 27.25 x 9.75" |
