User Manual for Kino Flo Celeb 250 DMX LED Fixture with Yoke Mount Click to enlarge the picture
Contents of the user manual for the Kino Flo Celeb 250 DMX LED
- Product category: LED Lights Kino Flo
- Brand: Kino Flo
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Kino Flo LED Lights
 |
User manual for the Kino Flo Celeb 250 DMX LED contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Kino Flo product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Kino Flo user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Kino Flo product will considerably shorten its lifespan!
|

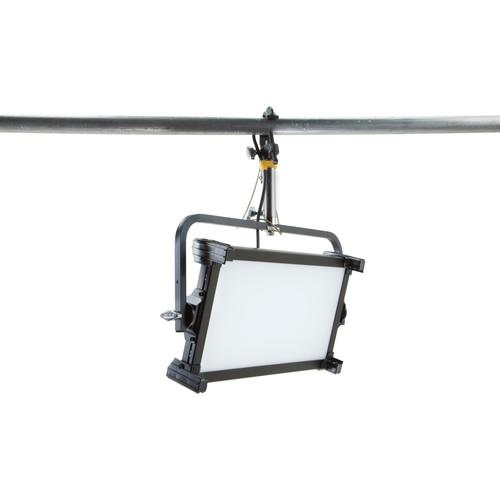

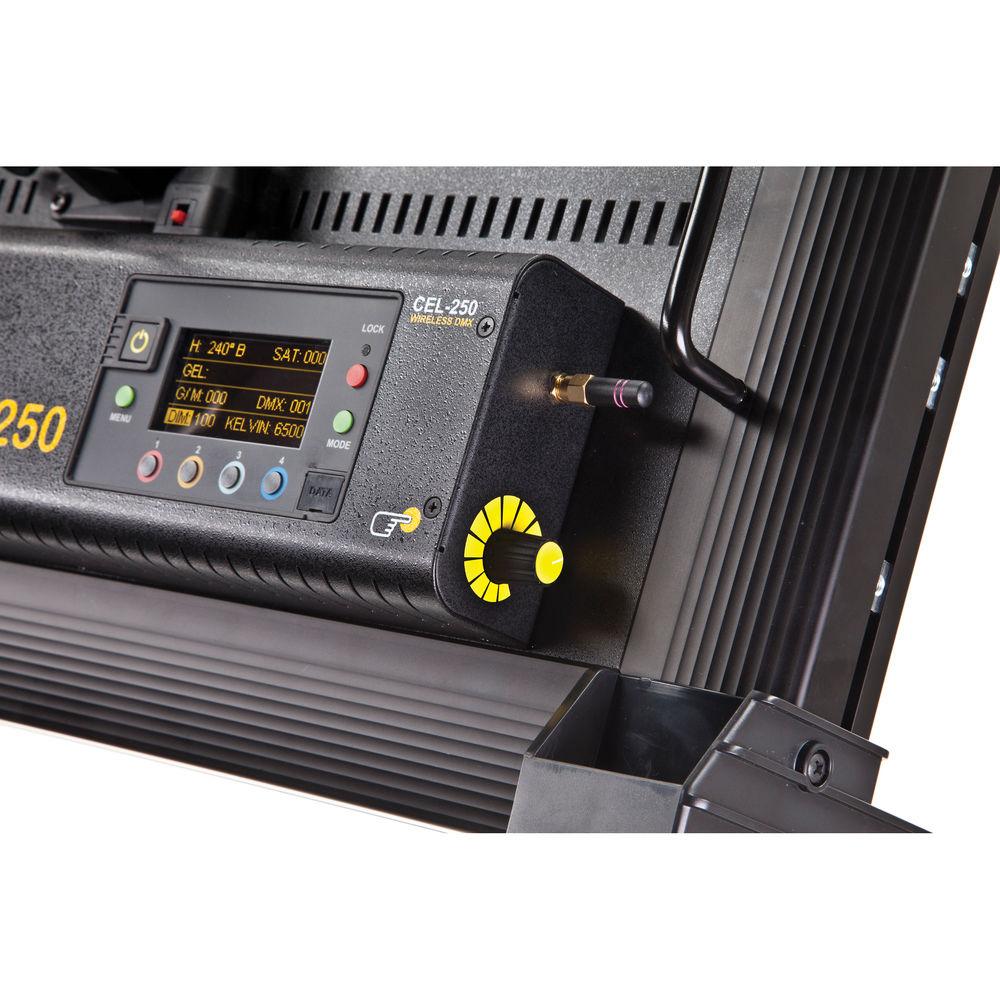

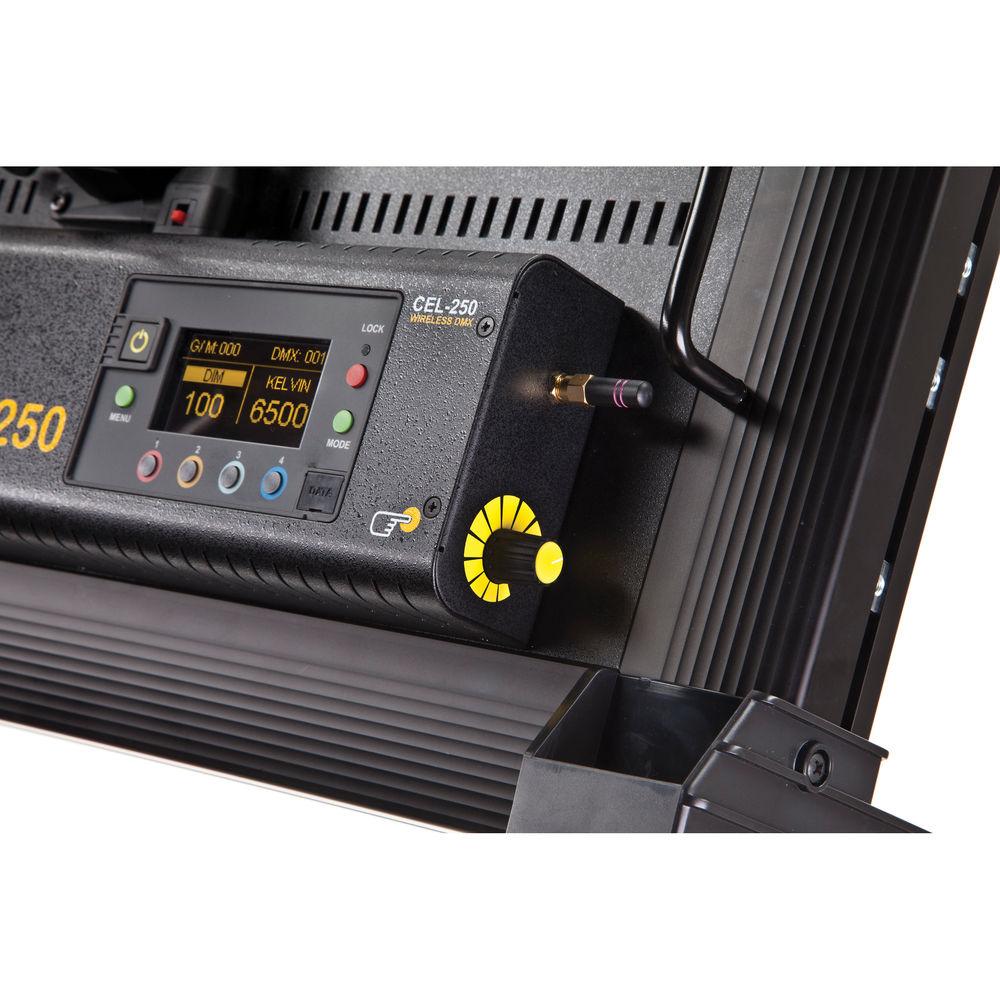

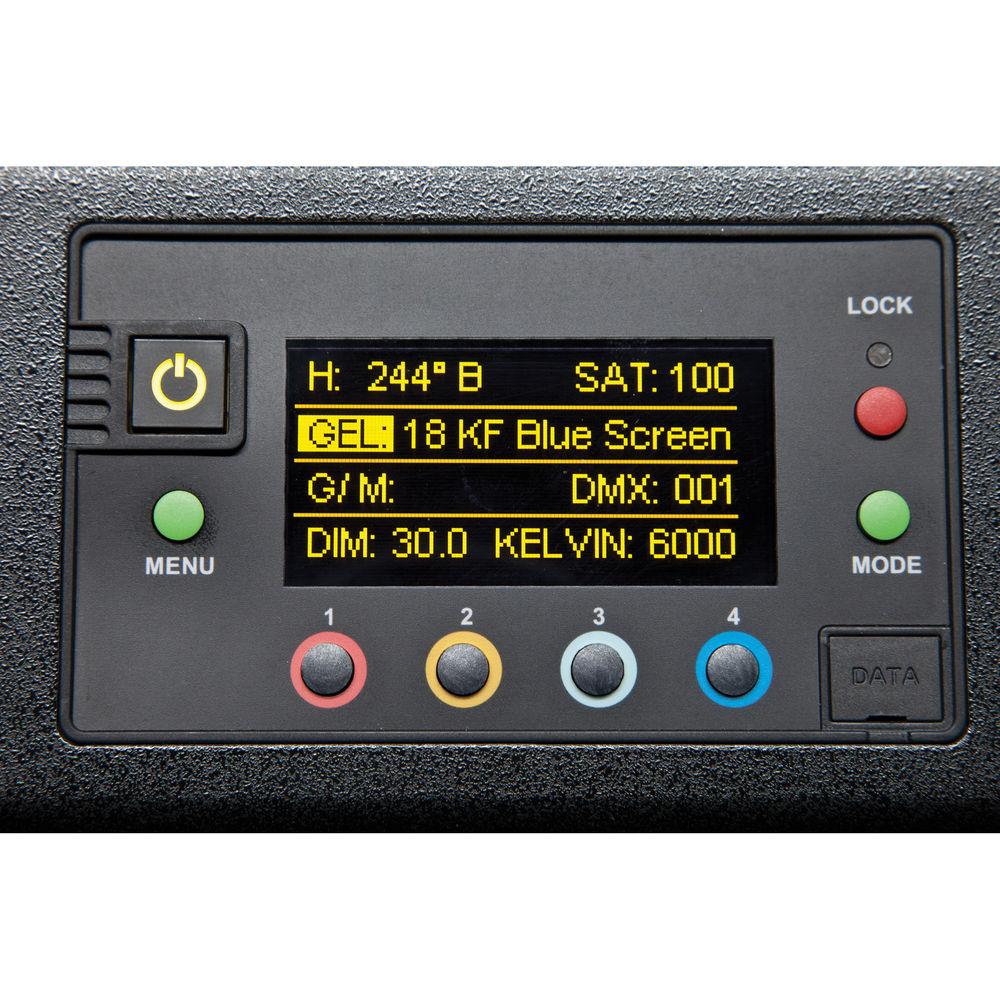

Product description Flexibility and extensive control options are key to the production of the Celeb 250 DMX Yoke Mount LED Fixture from Kino Flo. The 28.5 x 16.5 x 5" panel uses three menus with features that can be controlled on the light, via traditional wired DMX or by Lumen Radio wireless DMX. The White menu allows control of 1-100% dimming, color control from 2700-6500K, and Green/Magenta control. There are two Color menus. The first offers an extended color range from 2500-9900K. It's got a channel called "Gel" that offers multiple presets for light conditions such as mercury-vapor and 100 often used gel filters. There are also channels for Hue Angle and Saturation that work together in selecting a specific color and determining the intensity of it. The second color menu provides RGB (Red, Green, Blue) control to permit a user-selected combination to obtain any color in the visible spectrum. The Celeb 250 DMX is ready for worldwide use thanks to its 100-240 VAC power supply. The light comes with a 90-degree honeycomb grid to tighten its light beam and limit spill light. This version of the light has a yoke mount with a 1/2" hole for industry standard hardware. The fixture can hang overhead with the separate purchase of a hanger. - Benefits
-
- Kelvin presets
- Dial-in color temperature control between 2700K-6500K
- Extended color palette from 2500-9900K
- Green/magenta control
- Hue angle and saturation adjustments

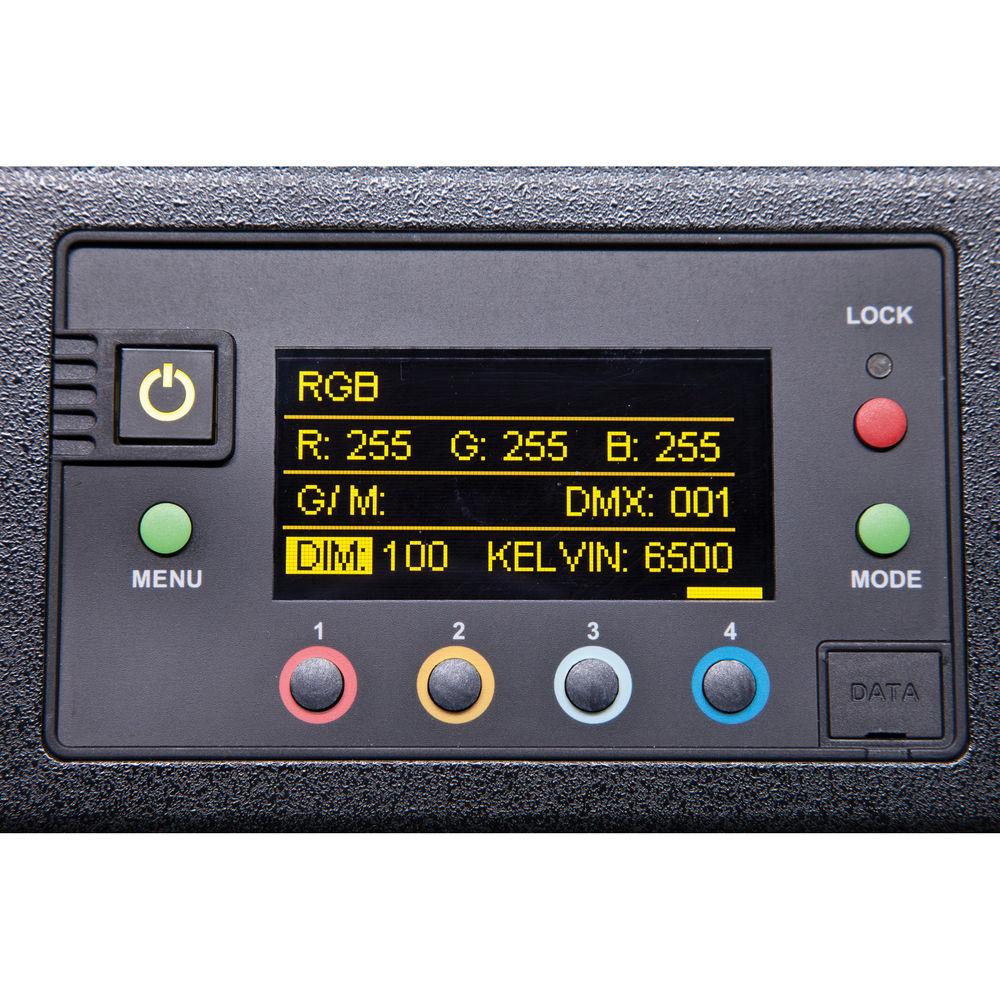

- RGB control
- Works with apps with predetermined RGB presets or color wheels
- Can use preset buttons to store custom Kelvin settings
- Light levels do not change when selecting Kelvin settings
- No color shift while dimming
- Color-correct with high color rendering index (CRI 95)
- Universal input 100-240 VAC or 24 VDC
- Energy efficient; draws 1.2A, 120 VAC and 6.25A, 24 VDC
- Flicker-free, quiet operation
- Full range onboard and DMX dimming
- DMX wireless link (Lumen Radio)
- DMX auto terminate

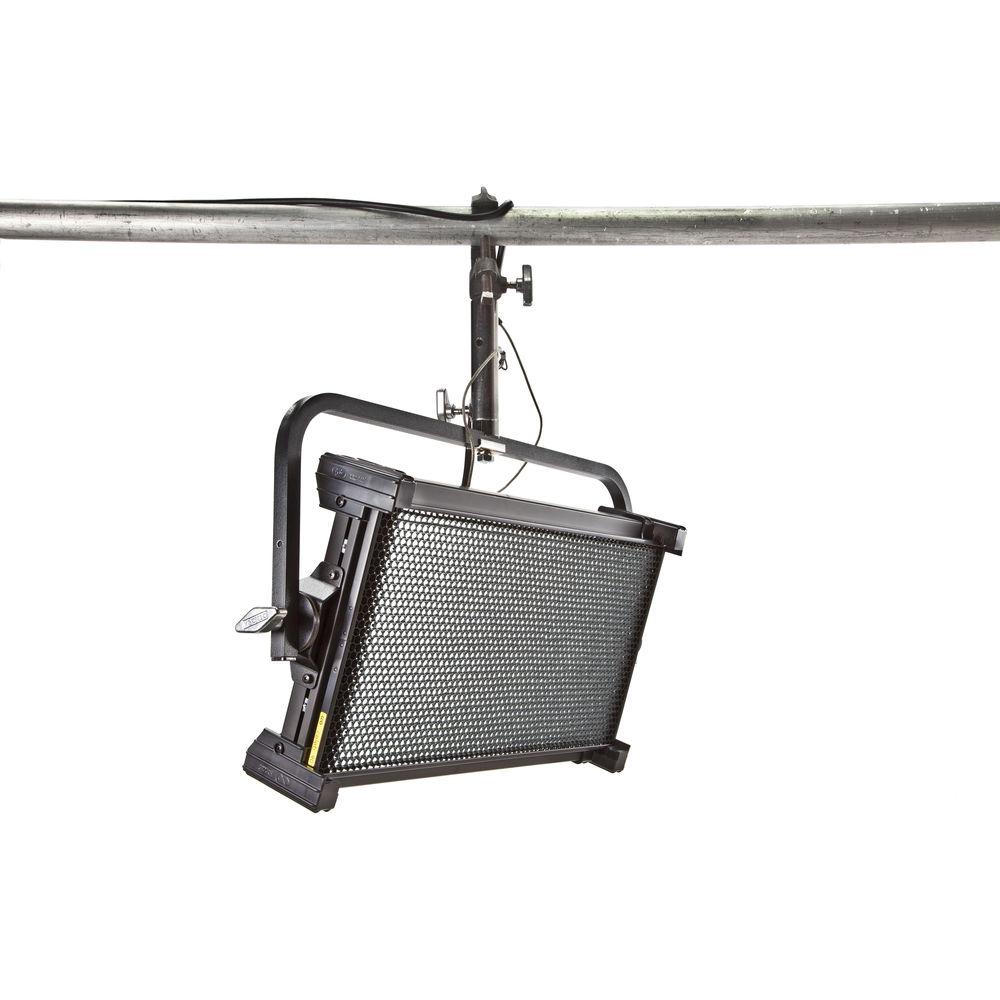

- Fixture includes removable 90° honeycomb louver
- 60° honeycomb louver also available separately
- Lightweight at 16 lb
- Slim profile with dimensions of 28.5 x 16.5 x 5"
- Accessory molded corners also used for four-point rope hang
- Photometrics
- 185 fc at 4.0' (1.2 m)
48 fc at 8.0' (2.4 m)
12 fc at 16' (4.9 m)
2990 lux at 3.3' (1.0 m)
763 lux at 6.6' (2.0 m)
198 lux at 13.0' (4.0 m) In the Box Kino Flo Celeb 250 DMX LED Fixture with Yoke Mount Yoke Mount 90° Honeycomb Louver for Celeb 201 LED Fixture Limited 1-Year Warranty User Manual PDF 4.1mb Table of Contents
|
Upload User Manual
Have you got an user manual for the Kino Flo Celeb 250 DMX LED Fixture with Yoke Mount in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersKino Flo 250 LED DMX Specs | Input Voltage | 100-240 VAC, 50/60 Hz, 145 W, 1.2 A
240-100 VAC, 50/60 Hz, 143 W, 0.7 A
18-36 VDC, 150 W | | Color Temperature | White Menu: 2700-6500K
Color Menu: 2500-9900K | | DMX | Yes, via cable or onboard wireless Lumen Radio | | Color Controls | Kelvin temperature
Color presets such as blue or green screen
Hue Angle
Saturation
RGB control | | Dimming Range | 100-1% | | Dimensions | 28.5 x 16.5 x 5" / 72.4 x 42 x 12.7 cm | | Weight | 16 lb / 7.3 kg | | | | Package Weight | 20.3 lb | | Box Dimensions (LxWxH) | 31.0 x 21.5 x 10.0" |
