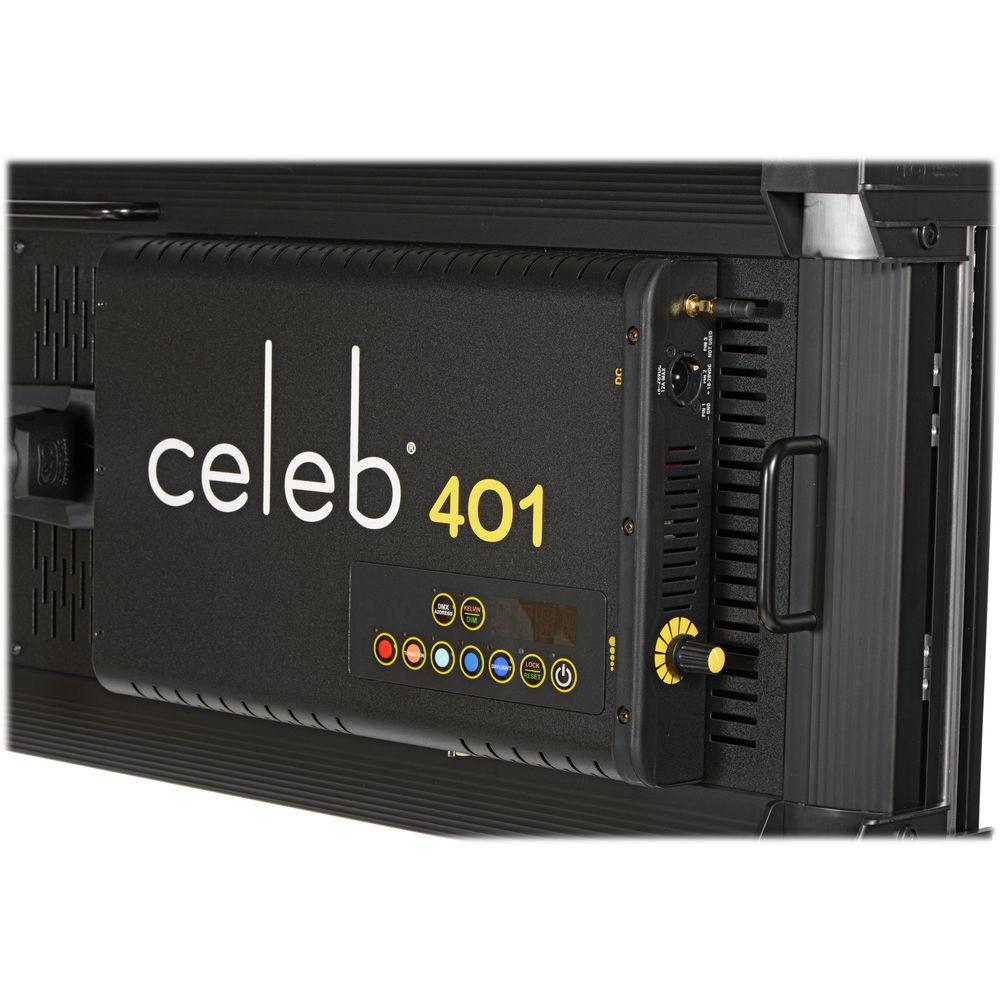

Product description Take the center mount Kino Flo Celeb 401 DMX LED Light on the road or protect it during storage with this Kit which includes a hard carrying case along with the updated LED fixture which adds wireless DMX support to the series thanks to compatibility with the Lumen Radio transmitter as well as an expanded color temperature range of 2700-6500K for greater versatility. The 45 x 14" panel's output is equivalent to that of a 2000W tungsten soft light while only drawing about 200W and it has a high CRI of 95 for accurate color rendition. Also, there are five programmable presets on the back for quickly jumping to specific color temperatures for matching your scene. And, it has a digital display for checking the temperature and output settings.

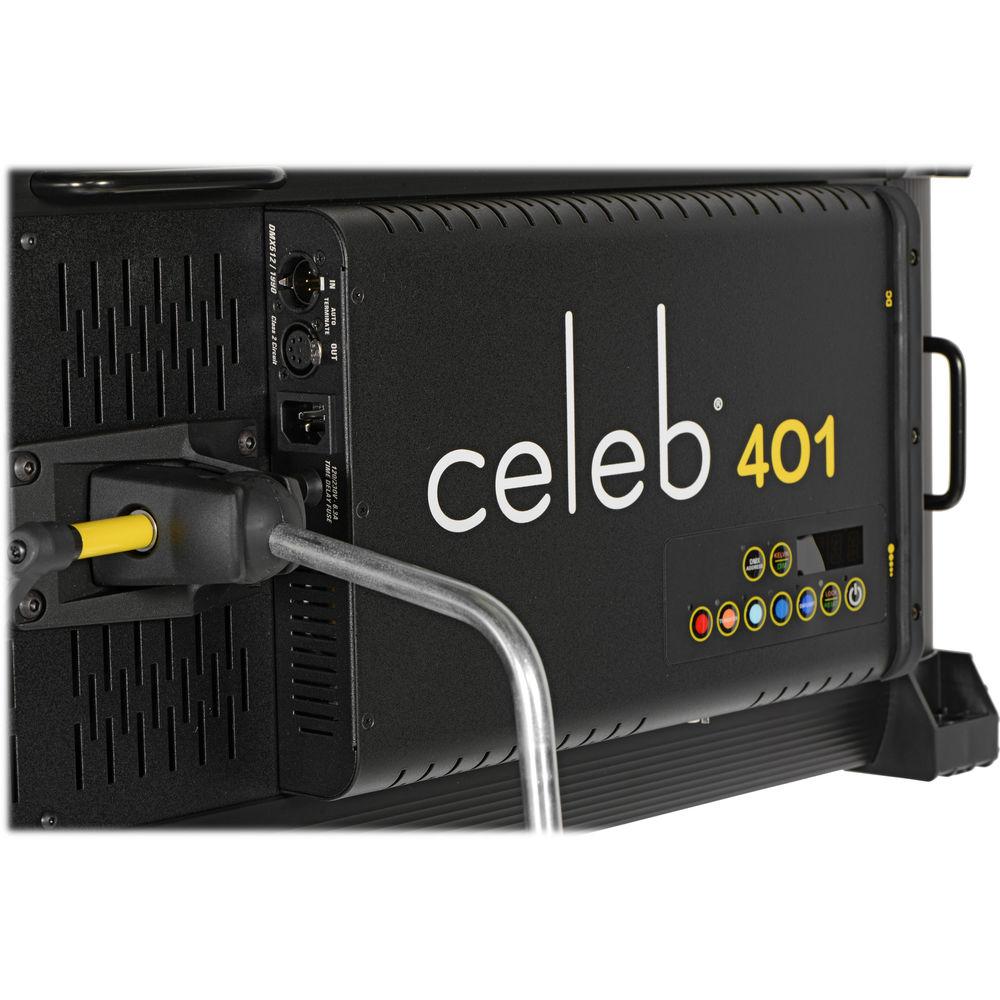

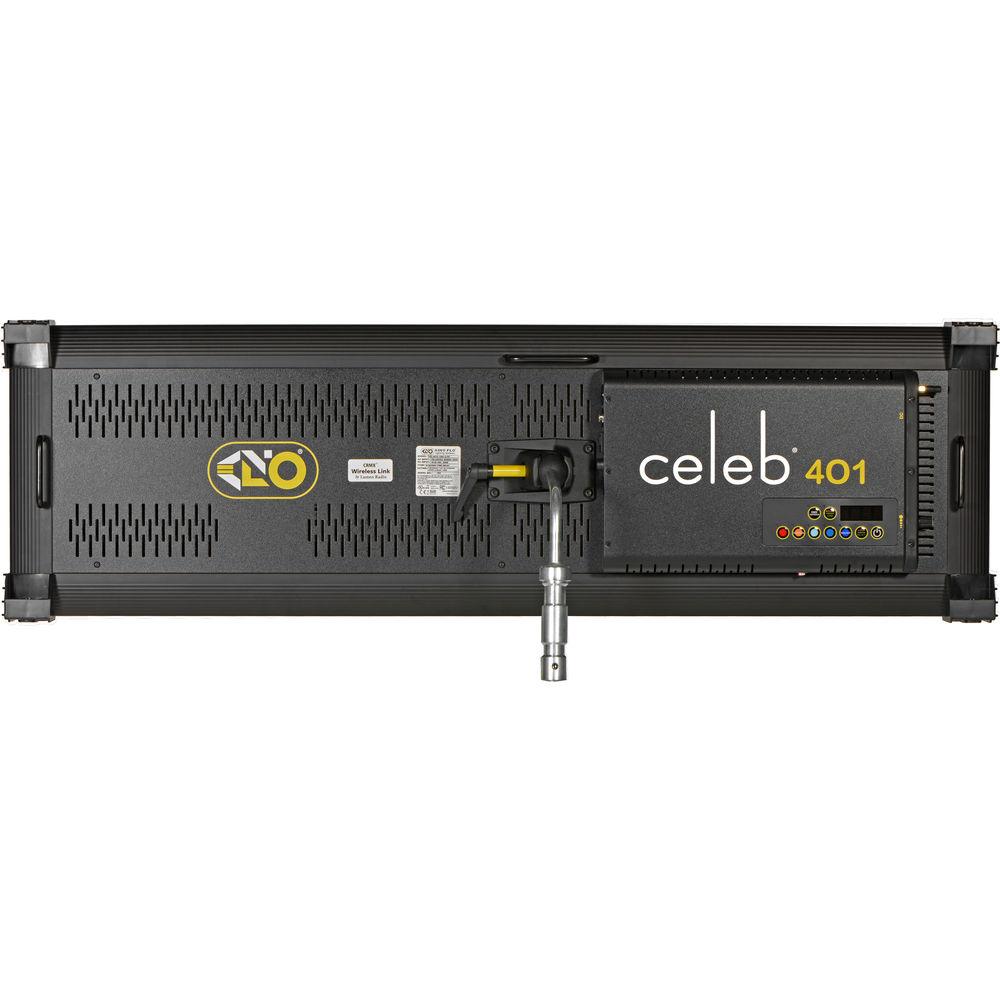

In addition to wireless DMX, the unit features a 5-pin XLR input and output for remote control of dimming from 0-100% along with an on-board dial for quickly adjusting it by hand. Also, the fixtures LED technology ensures it is flicker-free and silent. This fixture benefits from the ability to be powered by a universal 100-240 VAC power source or a portable 18-24 VDC option. Additionally, it comes with a locking power cord, a gel frame, and a 90° louver and it can accept numerous accessories. - Celeb 401 DMX LED Light (Center Mount) Kino Flo is improving upon their broad, soft LED panels with this center mount Celeb 401 DMX LED Light, which adds wireless DMX support through compatibility with the Lumen Radio transmitter along with an expanded color temperature range of 2700-6500K for greater versatility. This 45 x 14" panel offers the equivalent output of a 2000W tungsten soft light while only drawing about 200W and it has a high CRI of 95 for accurate color rendition. Also, there are five programmable presets on the back for quickly jumping to specific color temperatures for matching your scene. And it has a digital display for checking the temperature and output settings.
In addition to wireless DMX, the unit features wired 5-pin XLR inputs and outputs for remote control of dimming from 0-100% along with an on-board dial for quickly adjusting it by hand. The fixture's LED technology ensures that it's also flicker-free and silent. For maximum flexibility, the Celeb benefits from the ability to be powered by a universal 100-240 VAC power source or a portable 18-24 VDC battery option. The light comes with a locking power cord, a gel frame, and a 90° louver and it can accept numerous accessories. - Photometrics
- 858 fc / 1210 lux at 2' (0.6 m)
41 fc / 560 lux at 10' (3.0 m)

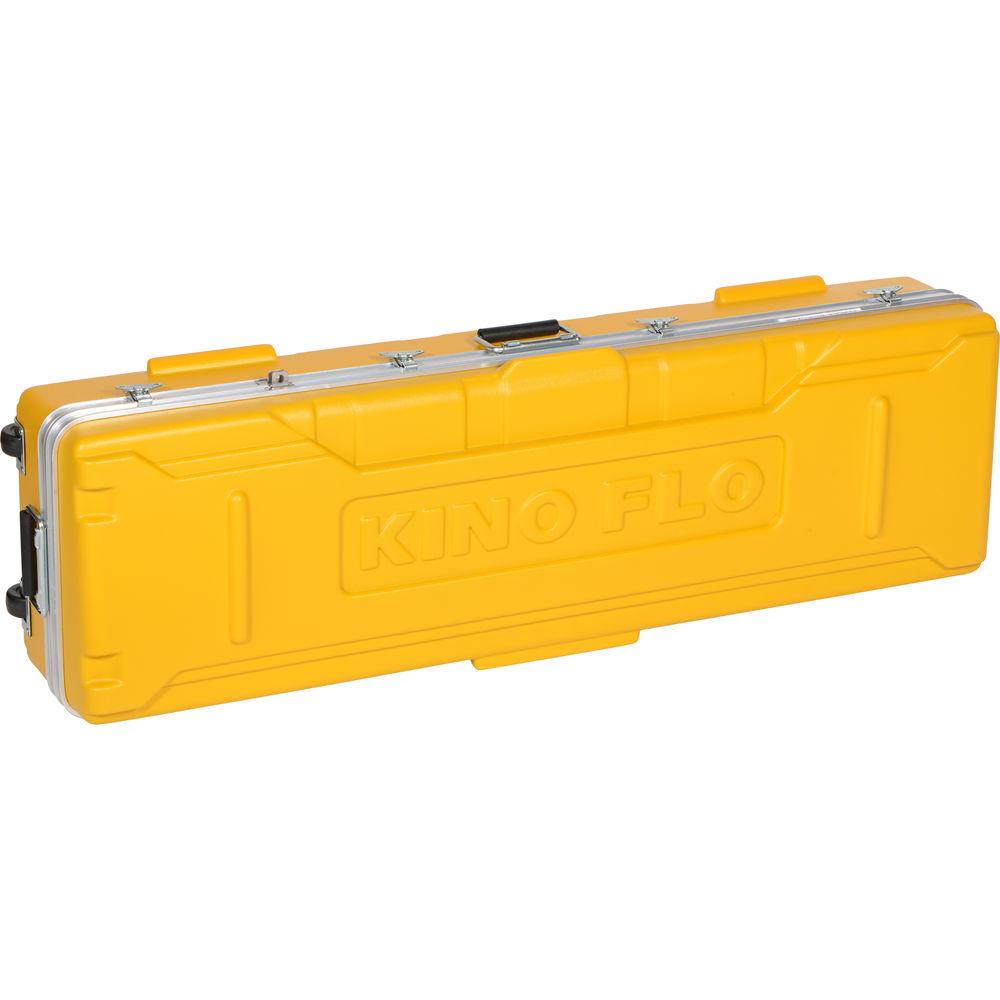

20 fc / 217 lux at 16' (5.0 m) - Shipping Case for Celeb 400 DMX LED Center Light This Kino Flo Shipping Case is designed to hold the Celeb 400 DMX LED Center Light and spare Celeb 400 louvers safely and securely. It is made out of ABS plastic and uses zinc-coated metal alloy latches for closure.

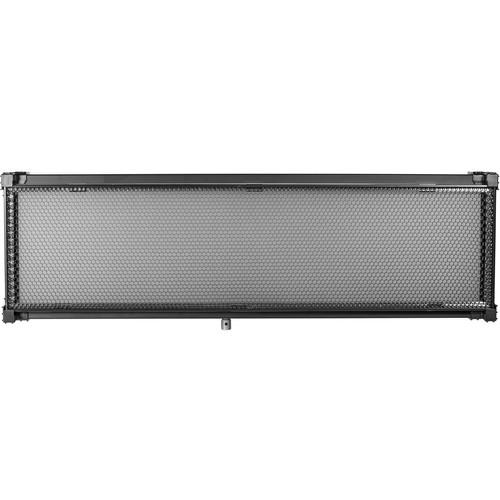

In the Box Bundle Items Celeb 401 DMX LED Light (Center Mount) - Honeycomb Louver for Celeb 400 and 450 DMX LED Lights - 90 Degrees
- IEC Locking Power Cord with U.S./No. American Plug
- Mega Lollipop with Junior Pin
Shipping Case for Celeb 400 DMX LED Center Light xezzrebcratcbt User Manual PDF 7.2mb Table of Contents
|
Upload User Manual
Have you got an user manual for the Kino Flo Celeb 401 DMX LED Light Kit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - Celeb 401 DMX LED Light (Center Mount)
| | | Color Temperature | 2700 to 6500K | | Color Accuracy Standard | CRI 95 | | Cooling System | None | | Dimming | Yes, 1 to 100% | | Display | None | | Fixture Dimensions | 45.0 x 14.0 x 5.0" / 114.5 x 36.0 x 13.0 cm (Including Yoke) | | Fixture Weight | 26 lb / 12 kg (Including Yoke) | | | | Power Input Connector | 3-Pin XLR, IEC | | DMX Connector | 5-Pin XLR | | | | Fixture Mount | Lollipop | | Mount via Included Adapter | 1-1/8" Stud | | Accessory Mount | None | | | | AC Input Power | 100 to 240 VAC, 50 / 60 Hz at 1.8 A | | DC Input Power | 18 to 28 VDC at 8.2 A | | Power Source | AC Adapter, External Battery | | Max Power Consumption | 210 W | | | | Cable Type | IEC to NEMA 5-15 | | | | IP Rating | IP20 | | Operating Temperature | 14 to 104°F / -10 to 40°C | | | | Box Dimensions (LxWxH) | 53.0 x 18.5 x 10.2" | - Shipping Case for Celeb 400 DMX LED Center Light
| | | Closure Type | Latch | | Carry and Transport Options | Handle | | Material of Construction | Plastic | | Exterior Dimensions (W x H x D) | 51 x 9.5 x 19" / 129.5 x 24 x 48.5 cm | | Weight | 22 lb / 10 kg | | | | Box Dimensions (LxWxH) | 53.0 x 17.0 x 12.0" |
