User Manual for Kino Flo Celeb 450 DMX LED Fixture with Yoke Mount Click to enlarge the picture
Contents of the user manual for the Kino Flo Celeb 450 DMX LED
- Product category: LED Lights Kino Flo
- Brand: Kino Flo
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Kino Flo LED Lights
 |
User manual for the Kino Flo Celeb 450 DMX LED contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Kino Flo product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Kino Flo user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Kino Flo product will considerably shorten its lifespan!
|

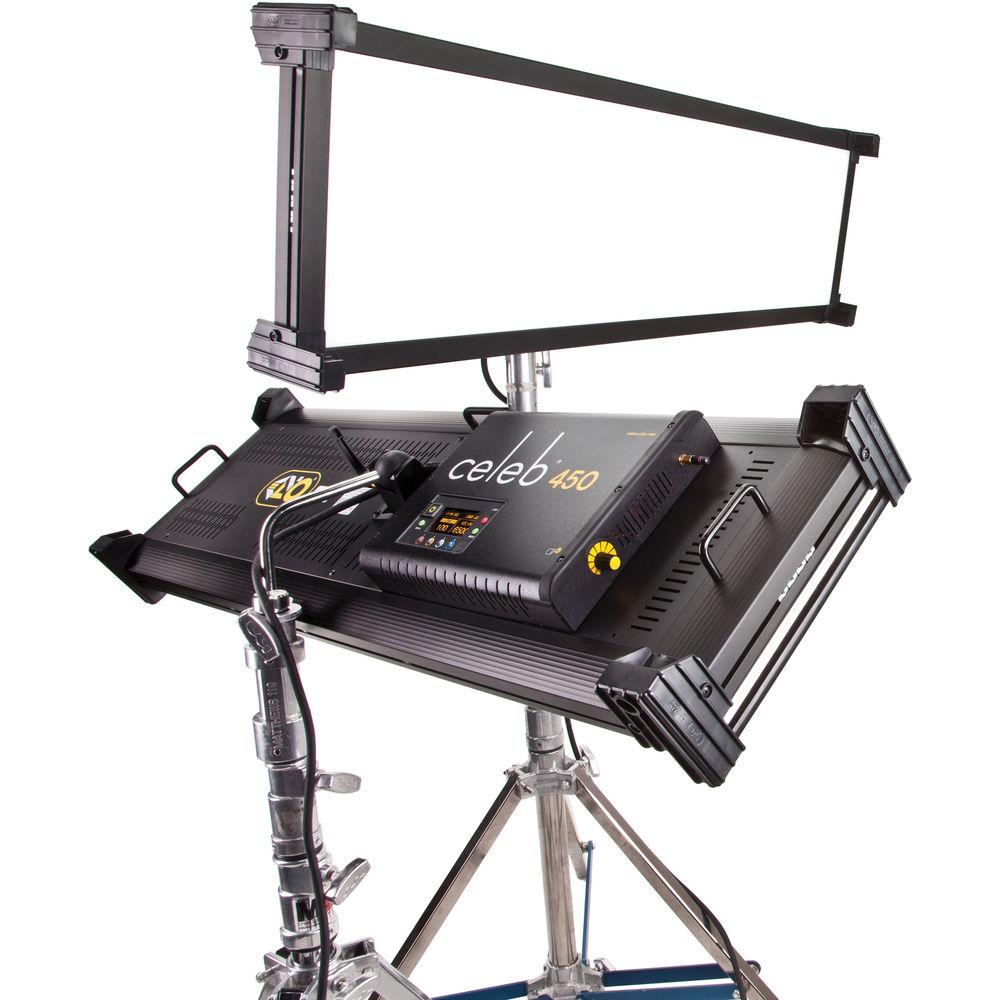

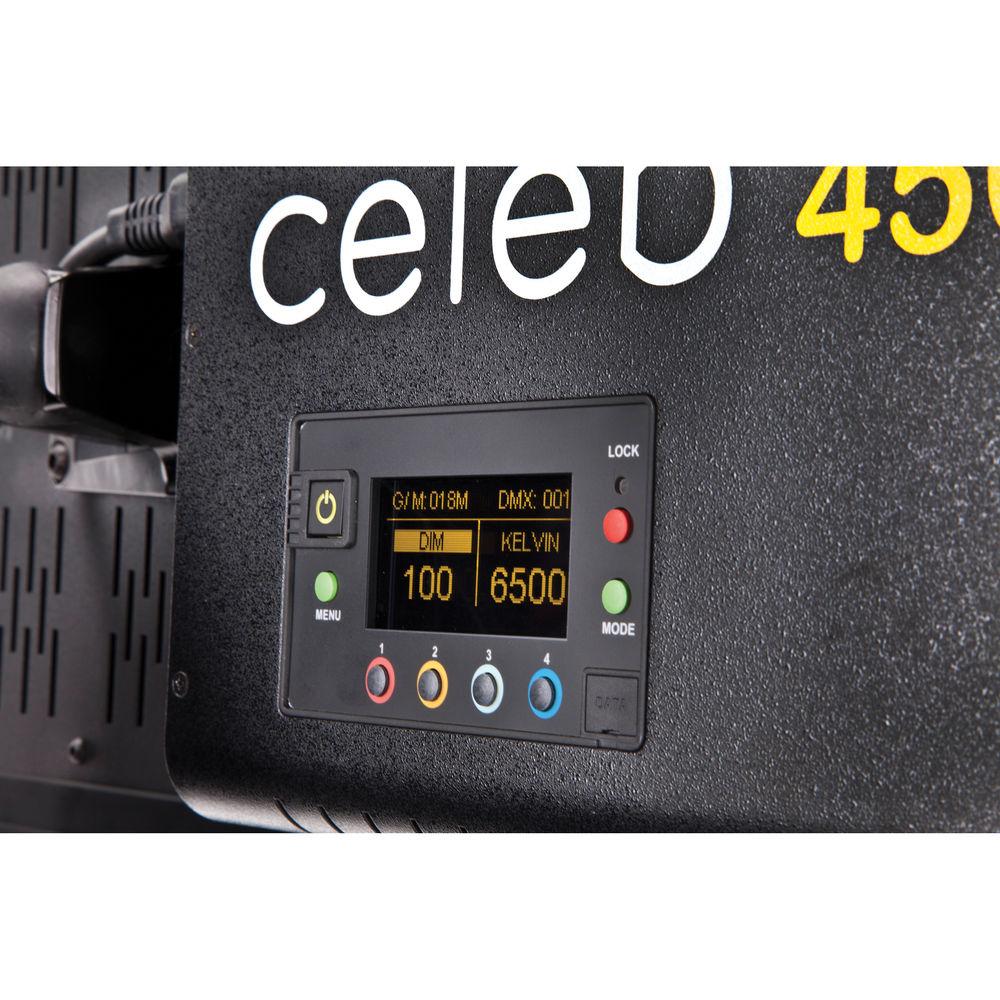

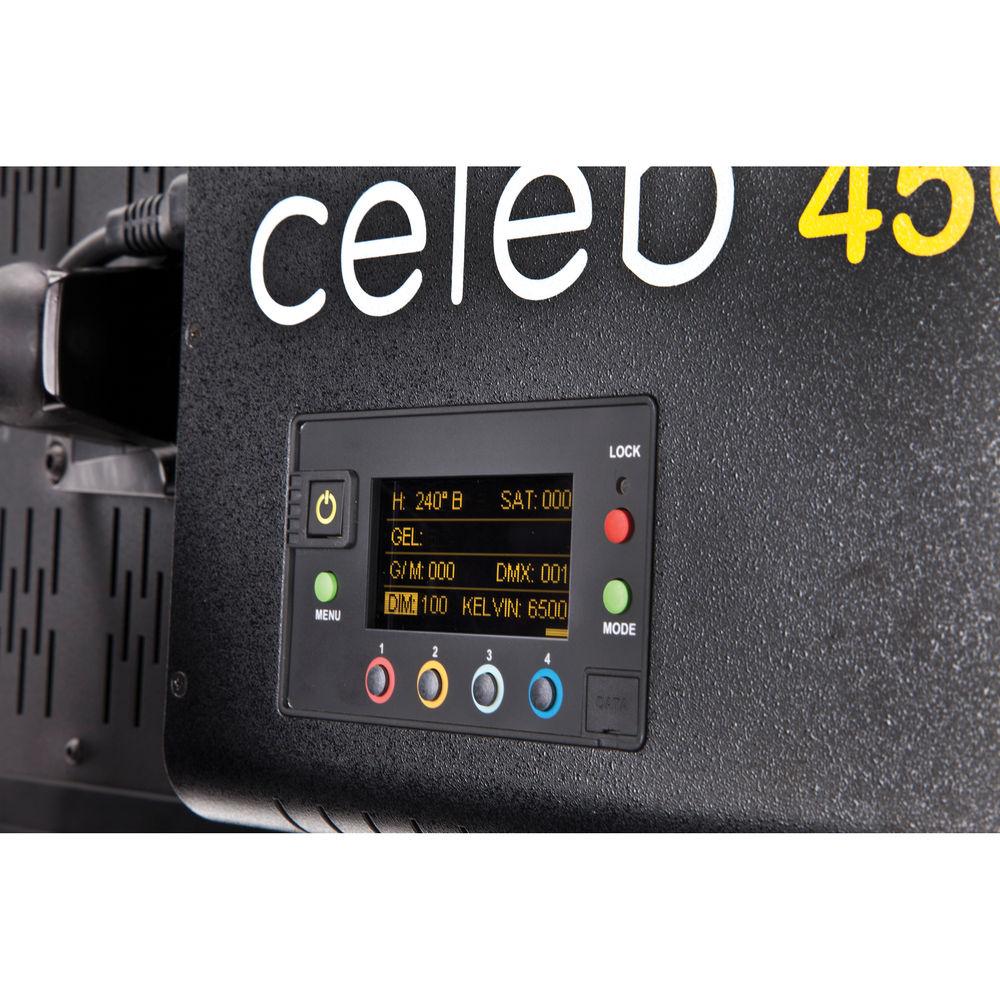

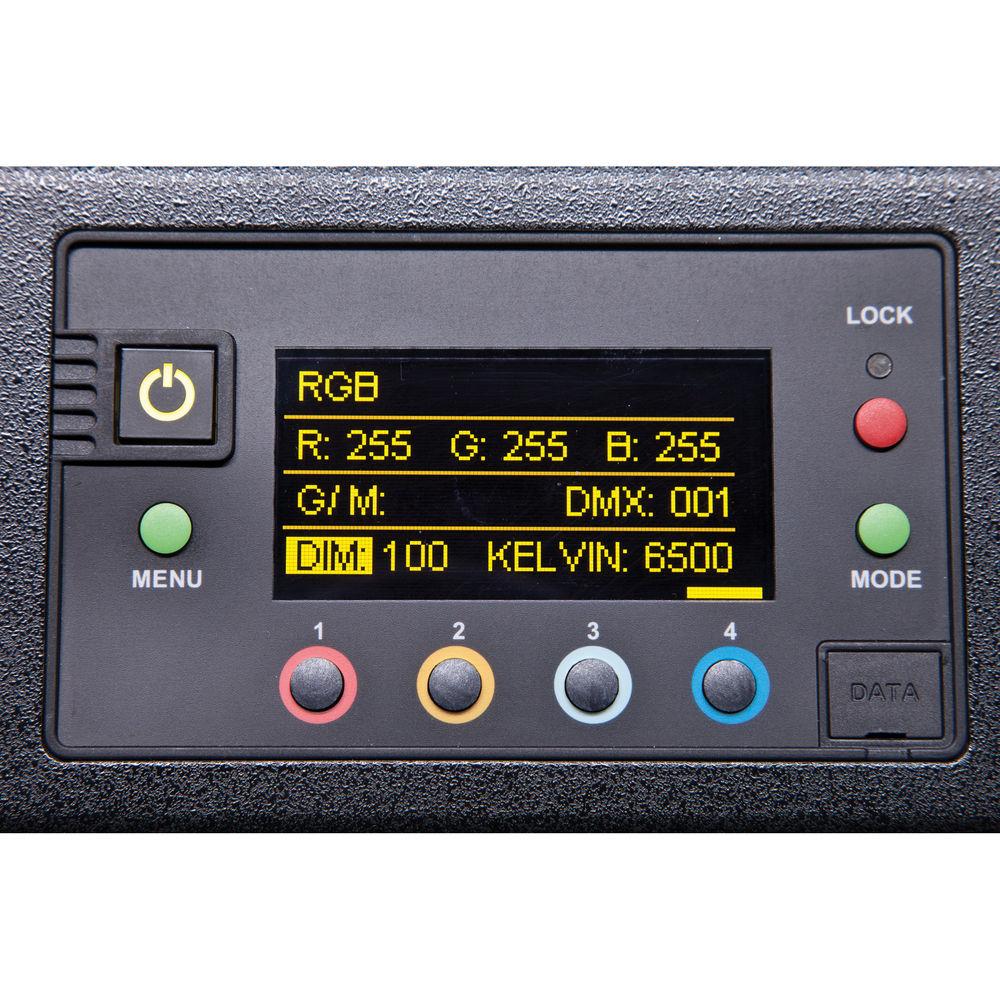

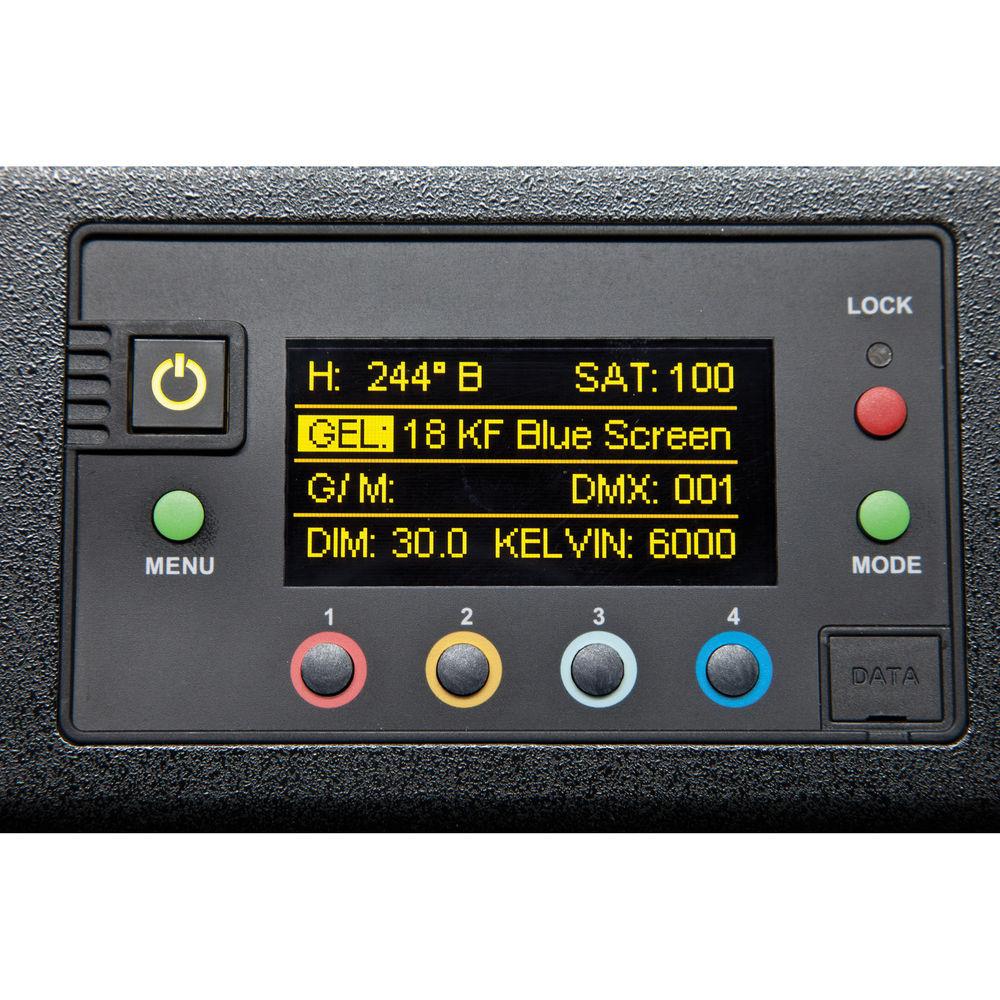

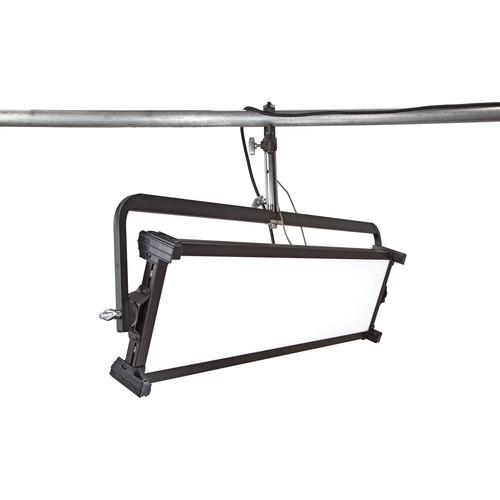

Product description Flexibility and extensive control options are key to the production of the Yoke Mount Celeb 450 DMX LED Fixture with Yoke Mount from Kino Flo. The 50 x 16.5 x 5" panel uses three menus with features that can be controlled on the light via traditional wired DMX or by Lumen Radio wireless DMX. The White menu allows control of 1-100% dimming, color control from 2700-6500K, and Green/Magenta control. There are two Color menus; the first offers an extended color range from 2500-9900K, and has a channel called "Gel" that offers multiple presets for light conditions such as mercury-vapor and 100 often-used gel filters. There are also channels for Hue Angle and Saturation that work together by selecting a specific color and determining the intensity of it. The second color menu provides RGB (Red, Green, Blue) control to permit a user-selected combination to obtain any color in the visible spectrum. The Celeb 450 DMX is ready for worldwide use thanks to its 100-240 VAC power supply. The light comes with a 90-degree honeycomb grid to tighten its light beam and limit spill light. This version of the light has a Yoke Mount. The yoke has a 1/2" hole to accept industry-standard hardware such as a a pipe hanger. - Benefits
-
- Kelvin presets
- Dial-in color temperature control between 2700K-6500K
- Extended color palette from 2500-9900K
- Green/magenta control
- Hue angle and saturation adjustments
- RGB control
- Works with apps with predetermined RGB presets or color wheels
- Can use preset buttons to store custom Kelvin settings
- Light levels do not change when selecting Kelvin settings
- No color shift while dimming
- Color-correct with high color rendering index (CRI 95)
- Universal input 100-240 VAC or 24 VDC
- Energy efficient; draws 2.5A, 120 VAC
- Flicker-free, quiet operation
- Full range onboard and DMX dimming
- DMX wireless link (Lumen Radio)
- DMX auto terminate

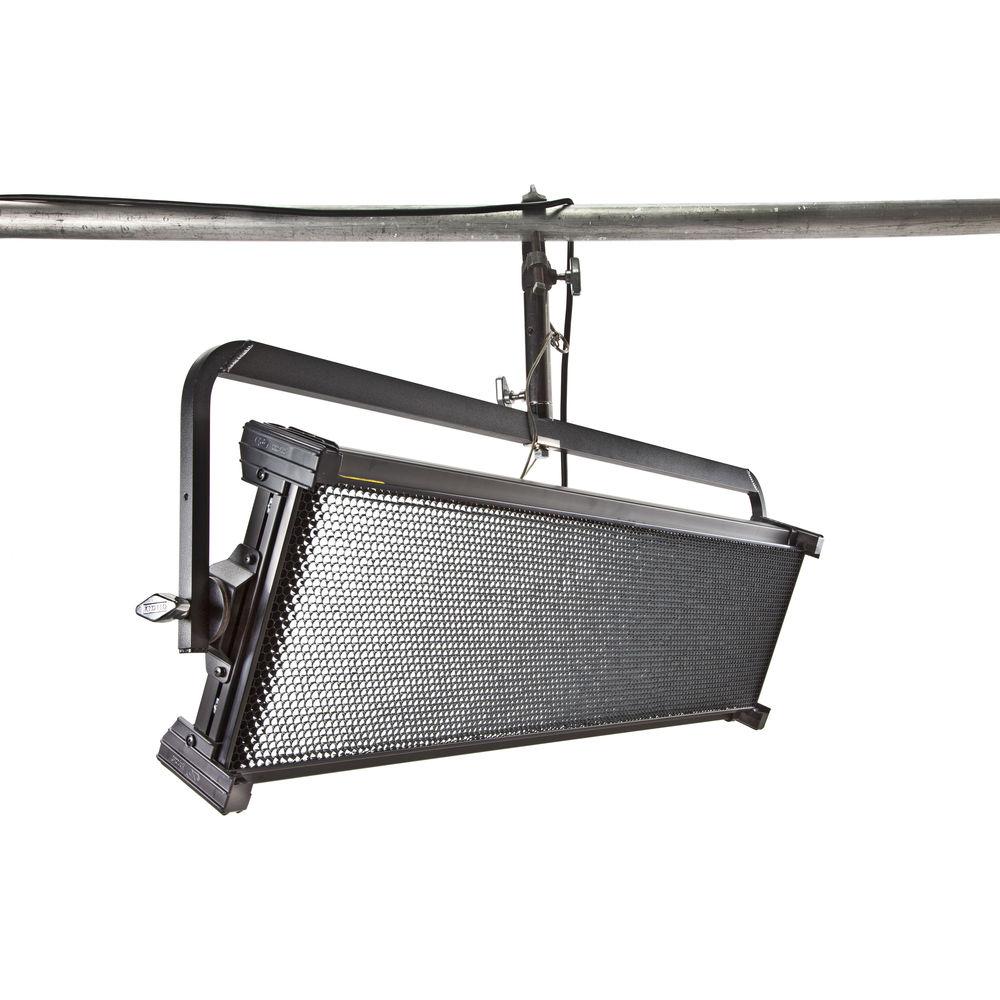

- Fixture includes removable 90° honeycomb louver
- 60° honeycomb louver also available separately
- Lightweight at 26 lb
- Slim profile with dimensions of 50 x 16.5 x 5"
- Accessory molded corners also used for four-point rope hang
- Photometrics
- 316 fc at 4.0' (1.2 m)
91 fc at 8.0' (2.4 m)
42 fc at 16.4' (5.0 m)
4860 lux at 3.3' (1.0 m)
1420 lux at 6.6' (2.0 m)
255 lux at 16.4' (5.0 m) In the Box Kino Flo Celeb 450 DMX LED Fixture with Yoke Mount Yoke Mount Honeycomb Louver for Celeb 400 and 450 DMX LED Lights - 90 Degrees Limited 1-Year Warranty User Manual PDF 4.1mb Table of Contents
|
Upload User Manual
Have you got an user manual for the Kino Flo Celeb 450 DMX LED Fixture with Yoke Mount in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersKino Flo 450 LED DMX Specs | | | Color Temperature | 2500 to 9900K | | Color Accuracy Standard | CRI 95 In color menu 1 | | Dimming | Yes, 1 to 100% (Continuous) | | Display | None | | Photometrics | 42 fc / 490 lux at 12' / 3.65 m | | Fixture Dimensions | Flood: 50.0 x 16.5 x 5.0" / 127.0 x 41.9 x 12.7 cm (Including Yoke) | | Fixture Weight | 26 lb / 11.79 kg (Including Yoke) | | | | AC Input Power | 100 to 240 VAC, 50 / 60 Hz | | Power Source | AC Adapter | | Max Power Consumption | 255 W | | | | Package Weight | 33.1 lb | | Box Dimensions (LxWxH) | 52.8 x 21.0 x 10.1" |
Rating100% users recommend this product to others. And what about you?
This product has already been rated by 34 owners. Add your rating and experience with the product.
