Kino Flo Celeb LED 450Q DMX

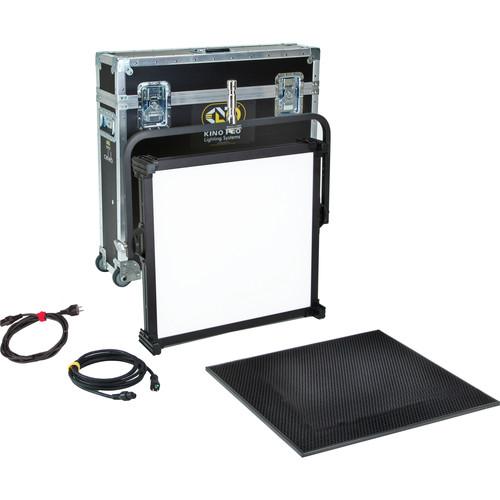

User Manual for Kino Flo Celeb LED 450Q DMX Kit with Yoke Mount

• Product category: LED Lights Kino Flo
• Brand: Kino Flo
• Description and content of package
• Technical information and basic settings
• Frequently asked questions – FAQ
• Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
• Authorized service for Kino Flo LED Lights

Product description

• Celeb 450Q DMX LED Fixture with Yoke Mount Flexibility and extensive control options are key to the production of the Celeb 450 DMX LED Fixture with Yoke Mount from Kino Flo. The 30 x 26 x 5" panel uses three menus with features that can be controlled on the light via traditional wired DMX or by Lumen Radio wireless DMX. The White menu allows control of 1-100% dimming, color control from 2700-6500K, and Green/Magenta control. There are two Color menus; the first offers an extended color range from 2500-9900K, and has a channel called "Gel" that offers multiple presets for light conditions such as mercury-vapor and 100 often-used gel filters. There are also channels for Hue Angle and Saturation that work together by selecting a specific color and determining the intensity of it. The second color menu provides RGB (Red, Green, Blue) control to permit a user-selected combination to obtain any color in the visible spectrum. The Celeb 450 DMX is ready for worldwide use thanks to its 100-240 VAC power supply. The light comes with a 90-degree honeycomb grid to tighten its light beam and limit spill light.
  Benefits
  • Kelvin presets
  • Dial-in color temperature control between 2700K-6500K
  • Extended color palette from 2500-9900K
  • Green/magenta control
  • Hue angle and saturation adjustments
  • RGB control
  • Works with apps with predetermined RGB presets or color wheels
  • Can use preset buttons to store custom Kelvin settings
  • Light levels do not change when selecting Kelvin settings
  • No color shift while dimming
  • Color-correct with high color rendering index (CRI 95)
  • Universal input 100-240 VAC or 24 VDC
  • Energy efficient; draws 2.5A, 120 VAC
  • Flicker-free, quiet operation
  • Full range onboard and DMX dimming
  • DMX wireless link (Lumen Radio)
  • DMX auto terminate
  • Fixture includes removable 90° honeycomb louver
  • 60° honeycomb louver also available separately
  • Lightweight at 24 lb
  • Slim profile with dimensions of 30 x 26 x 5"
  • Accessory molded corners also used for four-point rope hang
  Photometrics
  • 355 fc at 4.0' (1.2 m)
    96 fc at 8.0' (2.4 m)
    26 fc at 16.4' (5.0 m)
    5600 lux at 3.3' (1.0 m)
    1530 lux at 6.6' (2.0 m)
    267 lux at 16.4' (5.0 m)
• Junior Pin Assembly for 80, 40, 20 Kino Flo Image 80/40/20 Junior Pin assembly. Allows straight-ahead mounting of the fixture to a Junior 1-1/8" female receptor. Includes metric threaded screws and a Junior (1-1/8") pin.
• Yoke Ship Case for Celeb 400Q DMX This Kino Flo Yoke Ship Case is for the Celeb 400Q DMX LED light. It holds one Celeb Yoke mount fixture and one additional louver. It has two wheels on one side of the case so it can be pulled by one of the side handles.

• Yoke Mount

• 60° Honeycomb Louver for Celeb 400/401 LED Lights (Square)

• Limited 1-Year Warranty

• Limited 1-Year Warranty

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• Celeb 450Q DMX LED Fixture with Yoke Mount

  Color Temperature	2500 to 9900K
  Color Accuracy Standard	CRI 95 In color menu 1
  Dimming	Yes, 1 to 100% (Continuous)
  Display	None
  Photometrics	42 fc / 490 lux at 12' / 3.65 m
  Fixture Dimensions	Flood: 30.0 x 26.0 x 5.0" / 76.2 x 66.0 x 12.7 cm (Including Yoke)
  Fixture Weight	24 lb / 10.89 kg (Including Yoke)

  Battery Plate	None

  Fixture Mount	None

  Yoke Type	Yoke/Bracket

  Remote Control Type	DMX

  AC Input Power	100 to 240 VAC, 50 / 60 Hz
  Power Source	AC Adapter
  Max Power Consumption	255 W

  Box Dimensions (LxWxH)	32.8 x 31.0 x 10.5"

• Junior Pin Assembly for 80, 40, 20

  Box Dimensions (LxWxH)	4.8 x 4.5 x 3.1"

• Yoke Ship Case for Celeb 400Q DMX

  Carry and Transport Options	5 x Handle
  Material of Construction	Metal
  Exterior Dimensions (W x H x D)	34.5 x 33 x 8.5" / 87.6 x 83.8 x 21.6 cm
  Weight	27 lb / 12.2 kg

  Box Dimensions (LxWxH)	34.0 x 34.0 x 10.0"
