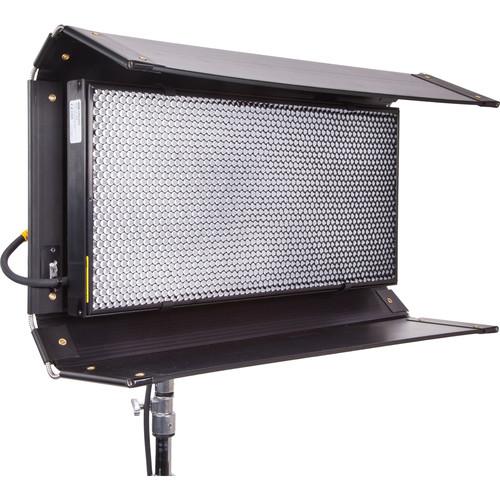

User Manual for Kino Flo CFX-SL20 Select LED 20 DMX Controllable Fixture Click to enlarge the picture
Contents of the user manual for the Kino Flo CFX-SL20 Select LED 20
- Product category: LED Lights Kino Flo
- Brand: Kino Flo
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Kino Flo LED Lights
|
User manual for the Kino Flo CFX-SL20 Select LED 20 contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Kino Flo product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Kino Flo user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Kino Flo product will considerably shorten its lifespan!
|
Product description The CFX-SL20 Select LED 20 DMX Controllable Fixture (Head Only) from Kino Flo features a detachable controller that allows you to control the fixture manually or via hard or wireless DMX. This SKU is for the fixture head and included 90° honeycomb grid only. All the other components must be sourced separately and are not included. The controller (not included) can be mounted on the back of the fixture or used remotely up to 25' away with an optional 25' extension cable. Producing a consistent light level across the variable 2700 to 6500K color temperature range, the fixture is flicker-free at any dimming setting from 100 to 1%. The detachable controller has a display screen for menu navigation and information display as well as physical buttons for navigation and settings.
The hard-wired DMX control is augmented by wireless DMX, which is provided by Lumen Radio. In addition to color temperature presets, you can also adjust the green/magenta hue of the fixture if you need to match existing fixtures. The fixture is flicker-free and virtually silent in operation, making it suitable for use on location as well as in a studio. It features built-in barndoors (top and bottom) and a form factor reminiscent of fluorescent Kino Flow light fixtures. It can accept worldwide AC power and can also be powered by DC. - A detachable controller (not included) mounts to the back of the fixture as with a traditional Kino Flo unit. However, you can easily remove it and, by using an extension cable (not included), control the fixture from up to 25' away. This allows you to place your fixture flush against a wall or hang it from a grid and still control it easily, without having to reach around or climb a ladder to manually access the controls.
- Included with the fixture is a 90° honeycomb grid that helps control light spill and give shape to the light.
- The color temperature of the fixture is continuously variable from 2700 to 6500K without the intensity of the light changing as a result of changing the color temperature of the fixture. In other words, there is no brightness spike around 4300K as you change the color temperature from 2700 to 6500K.
- The fixture can be dimmed from 100 to 1% brightness, remaining flicker-free at each brightness level.
In the Box Kino Flo CFX-SL20 Select LED 20 DMX Controllable Fixture (Head Only) 90° Honeycomb Grid Limited 1-Year Warranty User Manual PDF 4mbebevcqusrtetv Table of Contents
|
Upload User Manual
Have you got an user manual for the Kino Flo CFX-SL20 Select LED 20 DMX Controllable Fixture in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersKino Flo 20 LED DMX Specs | CRI | 95 | | Color Temperature | 2700-6500K | | Photometrics | Foot Candles
2.0' / 0.6 m: 508
4.0' / 1.2 m: 154
6.0' / 1.8 m: 70
Lux
3.3' / 1.0 m: 2409
6.6' / 2.0 m: 634
9.8' / 3.0 m: 288 | | Dimming | 100 to 1% | | Operating Conditions | 14 to 104°F / -10 to 40°C | | Dimensions | Fixture: 26.5 x 13.0 x 3.5" / 67.3 x 33.0 x 8.9 cm
Built-In Barndoors: 6.0" / 15.2 cm | | Weight | 10.0 lb / 4.5 kg | | | | Package Weight | 10.0 lb | | Box Dimensions (LxWxH) | 26.4 x 13.4 x 3.4" |
