User Manual for Kino Flo Diva-Lite 401 Kit Click to enlarge the picture
Contents of the user manual for the Kino Flo Diva-Lite 401 Kit
- Product category: Fluorescent Lights Kino Flo
- Brand: Kino Flo
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Kino Flo Fluorescent Lights
 |
User manual for the Kino Flo Diva-Lite 401 Kit contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Kino Flo product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Kino Flo user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Kino Flo product will considerably shorten its lifespan!
|

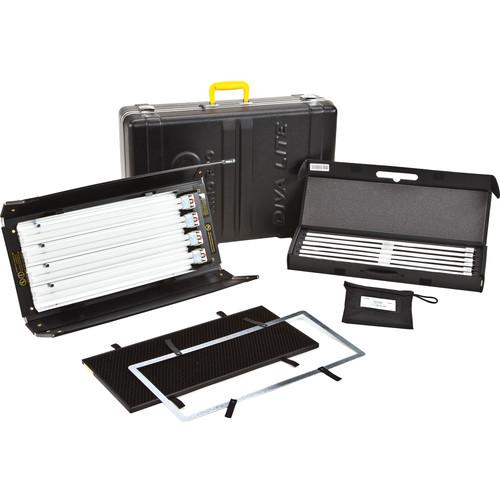

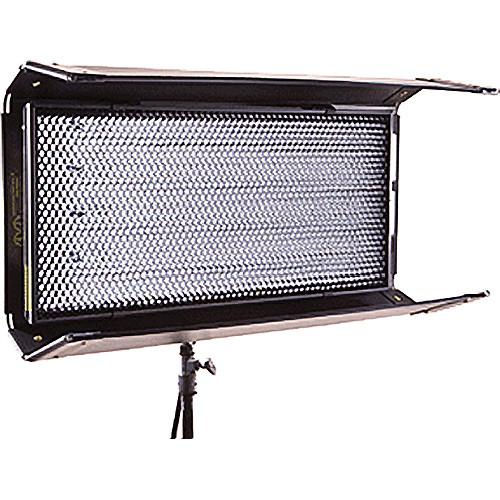

Product description Ideal for travel, location shooting, interviews, and small productions, the Diva-Lite 401 Kit from Kino Flo is built around the 4-lamp Diva-Lite fixture which features 5 to 100% dimming, 2- or 4-lamp switching, and choice of separately purchased CRI 95-rated True Match lamps. The kit comes with the Diva-Lite lamp head, a Flozier diffuser, 90° Louver (grid), filter frame, and a "lollipop" mount with a 5/8" receiver. A case is included for six spare 55W lamps, as is a hard travel case for storage and transport. - Diva-Lite 401 Fixture The Kino Flo Diva-Lite 401 Fixture is a portable, versatile cool-running fluorescent lighting fixture with 2-lamp/4-lamp switching that's ideal for fast-moving video production of all kinds. By switching the True Match lamps, you can quickly switch from nighttime to daytime interiors. With full-range dimming, switching and remote control, the Diva is nimble and dependable on location, perfect for news or commercial video production. Lamps available separately.
- Remote dimming possible with optional DIM-5 accessory, available separately
- True Match daylight, tungsten balanced lamps

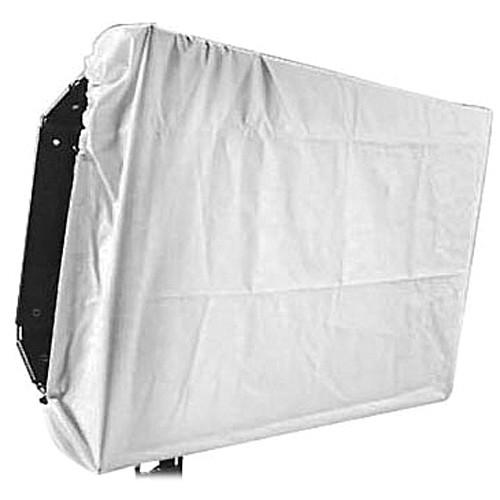

- 4Bank Full Flozier - 2' From Kino Flo - 4Bank Full Flozier a 2' Full-stop diffusion fabric that fits over the front of the fixture.
- KAS-CL6 6-Lamp Carry Case The Kino Flo KAS-CL6 6-Lamp Carry Case (Black) is designed to carry 6 55W compact fluorescent tubes. It has 6 interior foam slots to hold the lamps in place.
- Lamp Case Basics
-
- Fits 55W compact fluorescent lamps
- Polypropylene plastic case designed to carry lamps
- Foam slots for 6 lamps

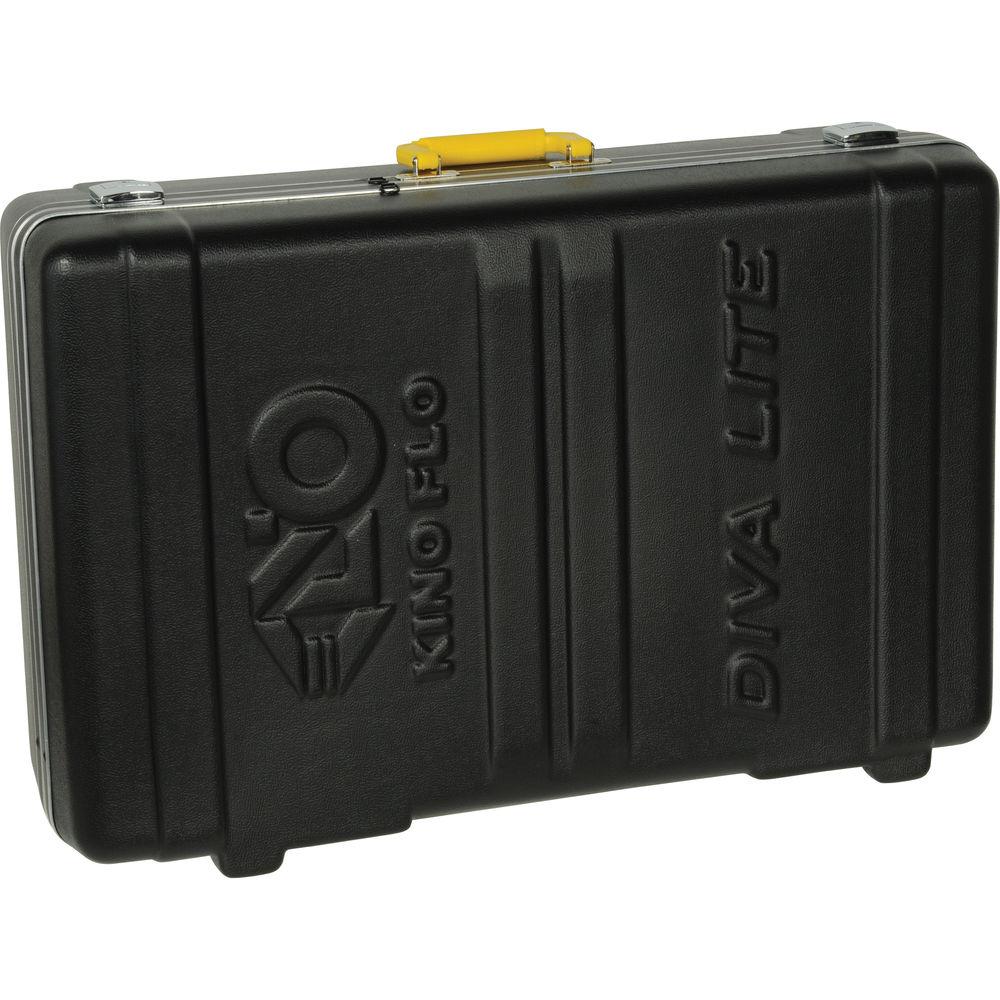

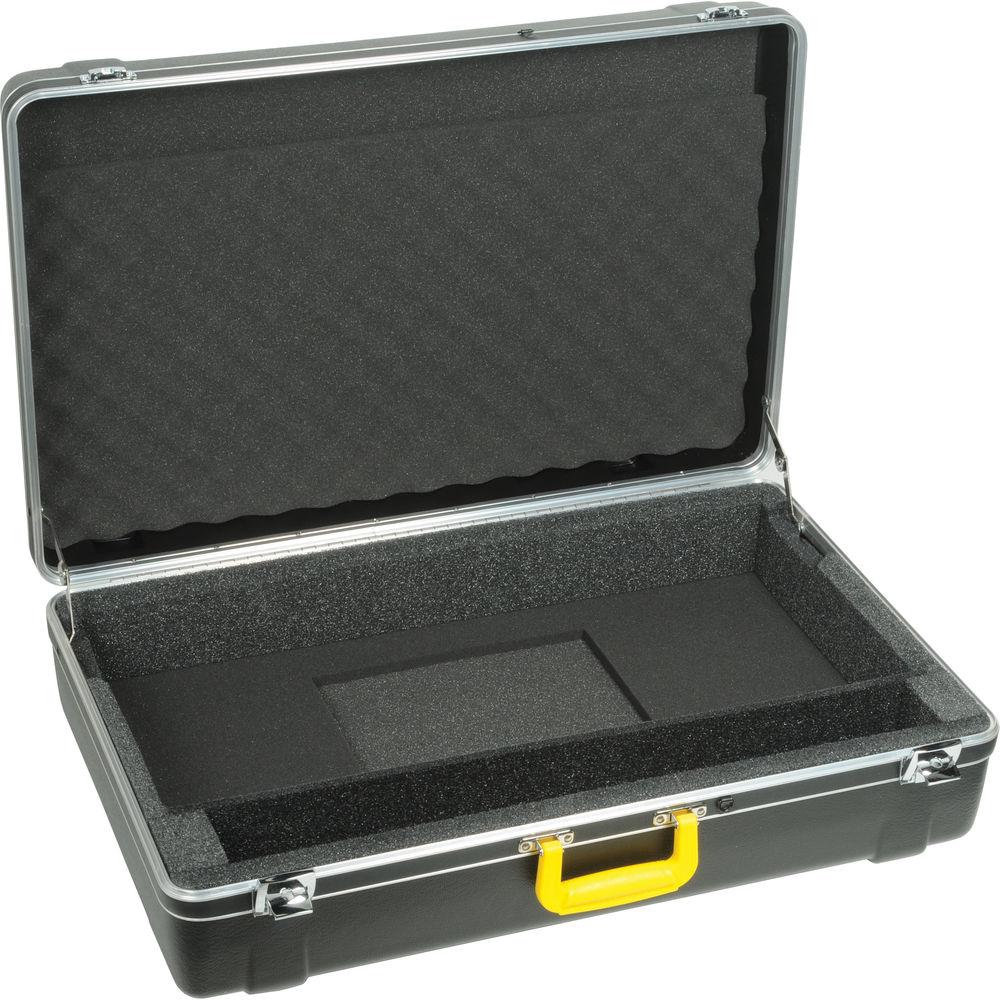

- KAS-D4-C Diva-Lite 400 Travel Case The Kino Flo KAS-D4-C Diva-Lite 400 Travel Case is a high-density, molded polyethylene clamshell case made to carry a Kino-Flo Diva-Lite 400 fixture, louver, gel frame, barn doors, center mount, flozier and lamp case. It has a folding carry handle.
- High-density, molded polyethylene, hard clamshell case, made to carry a lighting kit
- Compatible with Kino-Flo Diva-Lite 400 fixture, louver, gel frame, barn doors, center mount, flozier and lamp case.

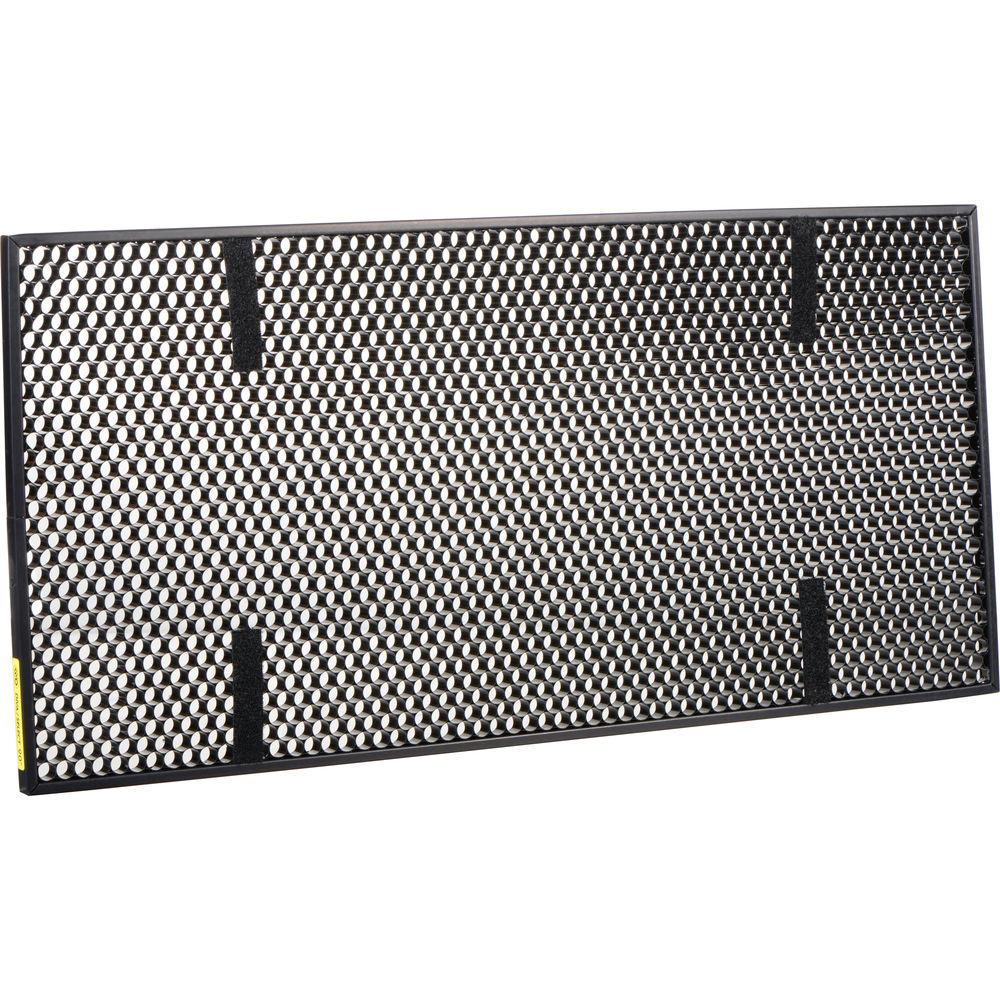

In the Box Bundle Items Diva-Lite 401 Fixture dwesqqubxvtwcfuuuyxrexys - 90º Honeycomb Louver for Diva-Lite 400

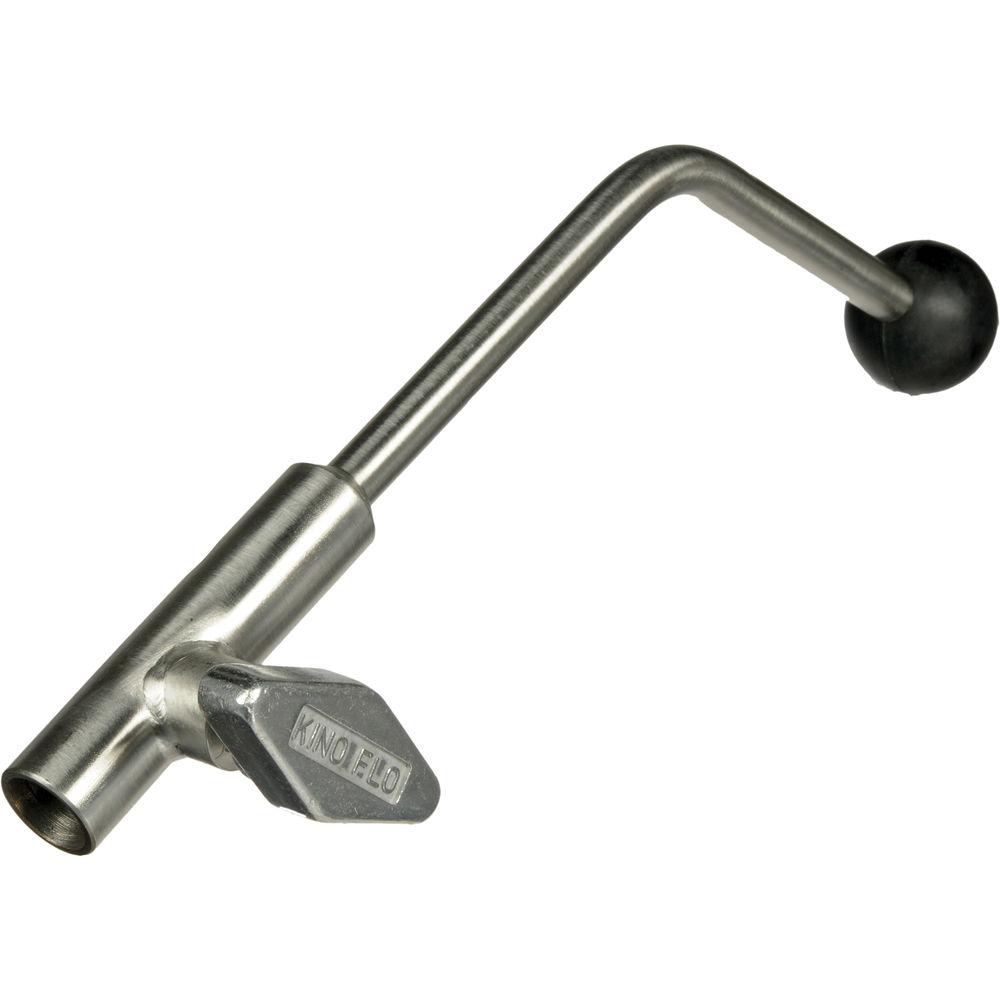

- MTP-LBC 41 Lollipop with Baby Receiver (16mm)
- One-Year Manufacturer's Warranty
4Bank Full Flozier - 2' KAS-CL6 6-Lamp Carry Case KAS-D4-C Diva-Lite 400 Travel Case Table of Contents
|
Upload User Manual
Have you got an user manual for the Kino Flo Diva-Lite 401 Kit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - Diva-Lite 401 Fixture
| Input Voltage | 120VAC 50/60Hz | | Lamps | 4 x 55W CFL | | Amperage | 2 amps | | Ballast | Built-in | | Weight | 13 lb (5.9 kg) | | Dimensions | 26 x 12 x 6" w/6" barndoors (66 x 30.5 x 15 cm w/15 cm doors) | | | | Box Dimensions (LxWxH) | 27.5 x 12.5 x 7.0" | - 4Bank Full Flozier - 2'
| | | Box Dimensions (LxWxH) | 9.2 x 7.9 x 1.2" | - KAS-CL6 6-Lamp Carry Case
| Material | Exterior: Polypropylene
Interior: Foam slots | | Type of Closure | Touch fastener | | Exterior Dimensions | 24 x 7.0 x 2.5" (61 x 18 x 6.5cm) (LxWxH) | | Interior Dimensions | Not Specified by Manufacturer | | Carrying/Transport Options | Handheld | | Weight | 12.8 oz (382g) | | | | Box Dimensions (LxWxH) | 26.45 x 7.3 x 3.2" | - KAS-D4-C Diva-Lite 400 Travel Case
| Material | Exterior: High-density polyethylene molded plastic
Interior: Custom cut-outs | | Type of Closure | Two latches | | Exterior Dimensions | 28 x 8 x 19" (71 x 20.5 x 48.5cm) (LxWxH) | | Interior Dimensions | Not Specified by Manufacturer | | Accommodates | Kino-Flo Diva-Lite 400 fixture, stand, mount, flozier and lamp case | | Carrying/Transport Options | Folding carry handle | | Weight | 11.5 lbs (5.2kg) | | | | Box Dimensions (LxWxH) | 28.5 x 20.2 x 8.3" |
