Product description

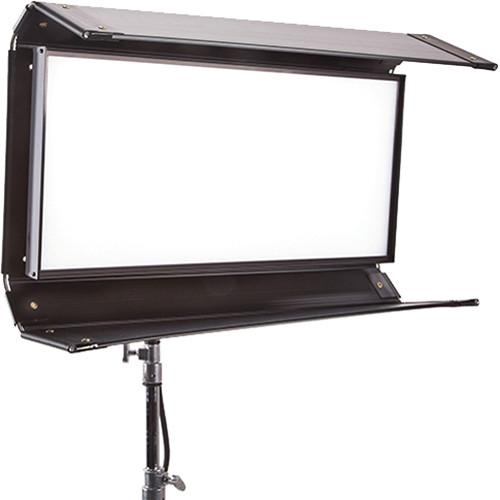

• Diva-Lite LED 20 DMX The Diva-Lite LED 20 DMX from Kino Flo combines a popular, time-tested form factor with the latest in LED technology. The light offers a high CRI of 95 and variable color temperature from 2700 to 6500K with magenta/green hue control to match the spectral curves on different cameras and other light sources on the set. Flicker-free, full range dimming without color shift is also offered. The 25 x 13 x 6" Diva-Lite 20 offers manual onboard or DMX512 control of all of these functions. In fact, the fixture has a built-in Lumen Radio receiver for wireless DMX control. The Diva-Lite LED 20 DMX's 100-240 VAC make it ready for worldwide use. Alternatively, it can run on pro batteries when mains power is unavailable. The light comes with a 90-degree honeycomb grid and a lollipop mount with a 5/8" receiver.
  Benefits
  • Kelvin presets
  • Can use preset buttons to store custom Kelvin settings
  • Light levels do not change when selecting Kelvin settings
  • Dial-in color temperature control between 2700-6500K
  • Full range onboard and DMX dimming
  • No color shift while dimming
  • Color-correct with high color rendering index (CRI 95)
  • Universal input 100-240 VAC or 24 VDC
  • Energy efficient, low draw
  • Flicker-free, dead quiet operation
  • DMX wireless link (Lumen Radio)
  • DMX Auto Terminate
  • Green/Magenta hue control

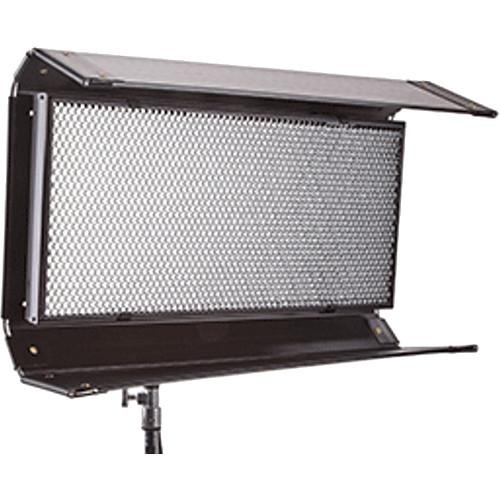

  • Fixture includes removable 90° Honeycomb Louver
  • Built-in barndoors
  • Center mount
  • Mounts to stand, light enough to be hand-held

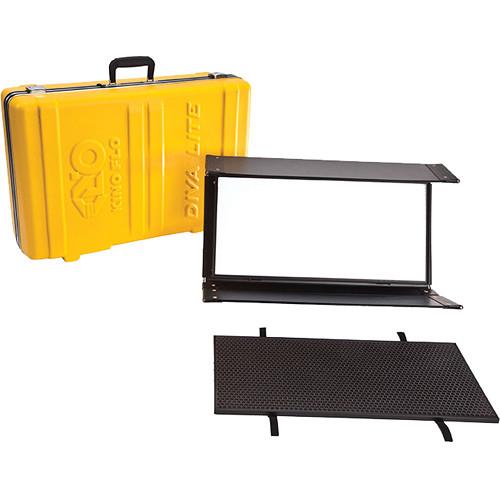

• Clamshell Case for Diva 20 Fixture and Accessories (Yellow) Store, protect, and transport your Diva 20 lighting fixture, controller, 25' extension cord, mount, stand, and more with the yellow Clamshell Case for Diva 20 Fixture and Accessories from Kino Flo. The case has a hard shell for impact protection and features latch closure for easy access to gear. Carry the case with the large top handle.

• Louver for Diva-Lite 20 (90°)

• MTP-LBC 41 Lollipop with Baby Receiver Curve (16mm)

• Gel Frame

• Limited 1-Year Warranty

• Limited 90-Day Warranty

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• Diva-Lite LED 20 DMX

  Color Temperature	2700 to 6500K
  Color Accuracy Standard	CRI 95
  Cooling System	None
  Dimming	Yes, 0 to 100%
  Display	None
  Fixture Dimensions	25.0 x 13.0 x 6.0" / 63.5 x 33.0 x 15.0 cm
  Fixture Weight	14.5 lb / 6.5 kg

  Power Input Connector	3-Pin XLR
  DMX Connector	5-Pin XLR

  Fixture Mount	Lollipop
  Mount via Included Adapter	5/8" Receiver
  Accessory Mount	None

  AC Input Power	100 to 240 VAC, 50 / 60 Hz at 1.3 A
  DC Input Power	24 VDC at 7 A
  Power Source	AC Adapter, External Battery
  Max Power Consumption	150 W

  Cable Type	Unspecified to CEE 7/16

  IP Rating	IP20

  Box Dimensions (LxWxH)	27.4 x 15.1 x 7.8"

• Clamshell Case for Diva 20 Fixture and Accessories (Yellow)

  Closure Type	Latch
  Carry and Transport Options	Top Handle
  Exterior Dimensions (W x H x D)	28.8 x 8.5 x 19.5" / 72 x 22 x 49.5 cm
  Weight	11.5 lb / 5.2 kg

  Box Dimensions (LxWxH)	28.3 x 20.0 x 8.4"
