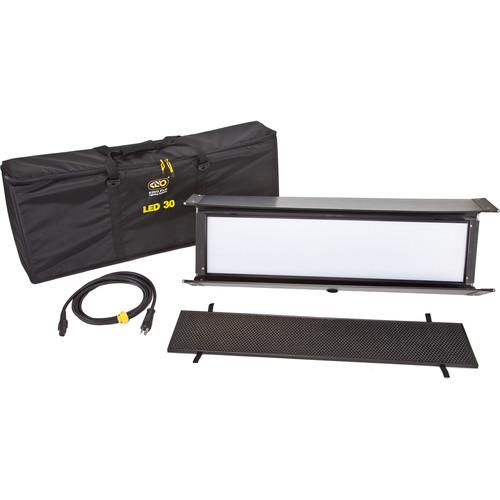

User Manual for Kino Flo Diva-Lite LED 30 DMX Kit with Soft Case Click to enlarge the picture
Contents of the user manual for the Kino Flo Diva-Lite LED 30 DMX
- Product category: LED Lights Kino Flo
- Brand: Kino Flo
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Kino Flo LED Lights
|
User manual for the Kino Flo Diva-Lite LED 30 DMX contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Kino Flo product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Kino Flo user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Kino Flo product will considerably shorten its lifespan!
|
Product description The Diva-Lite LED 30 DMX Kit with Soft Case from Kino Flo combines a popular, time-tested form factor with the latest in LED technology. The kit comes with a Diva-Lite LED 30 DMX, 90-degree louver, lollipop 5/8" receiver, and a soft padded case. The light features variable color temperature, AC/DC power supply, and DMX control. - Diva-Lite LED 30 DMX The Diva-Lite LED 30 DMX from Kino Flo combines a popular, time-tested form factor with the latest in LED technology. The light offers a high CRI of 95 and variable color temperature from 2700 to 6500K with magenta/green hue control to match the spectral curves on different cameras and other light sources on the set. Flicker-free, full range dimming without color shift is also offered. The 39 x 10.5 x 6" Diva-Lite 30 offers manual onboard or remote DMX512 control of all of these functions. In fact, the fixture has a built-in Lumen Radio receiver for wireless DMX control. The Diva-Lite LED 30 DMX's 100-240 power supply make it ready for worldwide use. Alternatively, it can run on pro batteries when mains power is unavailable. The light comes with a 90-degree honeycomb grid and a lollipop mount with a 5/8" receiver.
- Benefits
-
- Kelvin presets
- Can use preset buttons to store custom Kelvin settings
- Light levels do not change when selecting Kelvin settings
- Dial-in color temperature control between 2700-6500K
- Full range onboard and DMX dimming
- No color shift while dimming
- Color-correct with high color rendering index (CRI 95)
- Universal input 100-240 VAC or 24 VDC
- Energy efficient, low draw
- Flicker-free, dead quiet operation
- DMX wireless link (Lumen Radio)
- DMX Auto Terminate
- Green/Magenta hue control
- Fixture includes removable 90° Honeycomb Louver
- Built-in barndoors
- Center mount
- Mounts to stand, light enough to be hand-held
- Soft Case for Select 30 Fixture and Accessories (Black) Store, protect, and transport your Select 30 lighting fixture, controller, 25' extension cord, mount, and more with the black Soft Case for the Select 30 Fixture and Accessories from Kino Flo. The case is padded for impact protection and features zipper closure for easy access to gear. Carry the case with the dual strap handles and touch-fastening fabric connector.
In the Box Bundle Items Diva-Lite LED 30 DMX - Louver for Diva-Lite 30 (90°)
- MTP-LBC 41 Lollipop with Baby Receiver Curve (16mm)
Soft Case for Select 30 Fixture and Accessories (Black) User Manual PDF 6.8mb Table of Contents
|
Upload User Manual
Have you got an user manual for the Kino Flo Diva-Lite LED 30 DMX Kit with Soft Case in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - Diva-Lite LED 30 DMX
| | | Color Temperature | 2700 to 6500K | | Color Accuracy Standard | CRI 95 | | Cooling System | None | | Dimming | Yes, 1 to 100% | | Display | None | | Fixture Dimensions | 39.0 x 10.5 x 6.0" / 63.5 x 33.0 x 15.0 cm | | Fixture Weight | 17 lb / 8.0 kg | | | | Power Input Connector | 3-Pin XLR | | DMX Connector | 5-Pin XLR | | | | Fixture Mount | Lollipop | | Mount via Included Adapter | 5/8" Receiver | | Accessory Mount | None | | | | AC Input Power | 100 to 240 VAC, 50 / 60 Hz at 1.3 A | | DC Input Power | 24 VDC at 7 A | | Power Source | AC Adapter, External Battery | | Max Power Consumption | 150 W | | | | Cable Type | Unspecified to NEMA 5-15 | | | | Box Dimensions (LxWxH) | 41.0 x 12.3 x 8.8" | - Soft Case for Select 30 Fixture and Accessories (Black)
| | | Closure Type | Zipper | | Carry and Transport Options | Top Handle | | Material of Construction | Nylon | | Exterior Dimensions (W x H x D) | 31 x 7.5 x 18" / 79 x 19 x 46 cm | | Weight | 6 lb / 2.7 kg | | | | Box Dimensions (LxWxH) | 41.5 x 16.6 x 9.0" |
