User Manual for Kino Flo Flathead 80 DMX System Kit Click to enlarge the picture
Contents of the user manual for the Kino Flo Flathead 80 DMX System
- Product category: Fluorescent Lights Kino Flo
- Brand: Kino Flo
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Kino Flo Fluorescent Lights
|
User manual for the Kino Flo Flathead 80 DMX System contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Kino Flo product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Kino Flo user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Kino Flo product will considerably shorten its lifespan!
|

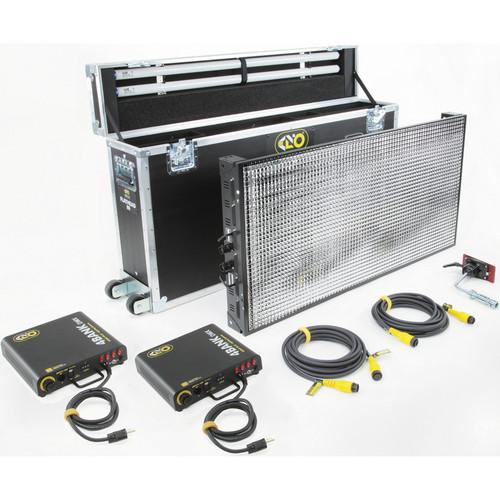

Product description The Flathead 80 DMX System Kit from Kino Flo features some of the core equipment needed to set up a Flathead 80 lighting fixture. It includes a Flathead 80 fixture, two 4Bank DMX ballasts with North American Plug, a mounting plate with junior pin, two 25' extension cables, and a shipping case.
The Flathead 80 System provides a large 8-tube soft lighting source that is able to by plugged into a wall on location. This allows it to be used in place of bounced lighting sources without taking up as much space. The fixture is compatible with the 4Bank DMX ballasts, two are used to increase compatibility with other fixtures and for more lamp control.
Accessories included with this system are the mounting plate with a junior pin for setting up the fixture on a wall or ceiling, two 25' extension cables for use between the fixture and ballast, and a shipping case for protection during storage and transport. - Flathead 80 Light Fixture Only The Flathead 80 System works very much like the vaunted Foto-Flo 400, but it delivers twice as much light. The Flathead 80 fixture uses Kino Flo's custom Hollywood-style True Match lamps and reflector technology that displays a very soft, flattering beauty light. A special parabolic louver focuses the beam. Cardholder "bumpers" at each corner have also been added for hanging the fixtures, or for attaching foam core cutters or black cloth.This is a fixture only -- no mounting plate, or ballasts. As with all Kino Flo fixtures and kits, the fluorescent tubes must be purchased separately.
- Delivers twice as much light as the Foto-Flo 400.
- Ideal for fashion and portrait photography.
- Tubes can be controlled remotely with a pair of optional Foto-Flo ballasts.
- Cool and lightweight enough to be hand held or mounted directly to walls and ceilings.
- Mounting Plate with Junior (1-1/8") Pin This is a Kino Flo Twist-on Mounting Plate with a junior (1-1/8") pin that will allow mounting of a Kino FLo fluorescent fixture into a cine-stand's female receptor.
- Extension Cable for 4-Bank Fixture - 25' Extends the range of one of the Kino Flo's 4-Bank fixture components.
25 feet long. - 4Bank DMX Ballast (North American Plug) The North American plug 4Bank DMX Ballast from Kino Flo is a high frequency ballast with DMX 512/1990 support with Auto Terminate. It can control the four lamp 4Bank fluorescent lighting fixture from a distance of up to 75' for extra versatility with the use of optional extension cables. It also will work with either the 2' or 4' lamps. The ballast features four on/off switches for controlling each lamp independently. Also, this version has a universal voltage of 100-240 VAC and features a North American plug.
- Flathead 80 Ship Case (1-Unit) Heavy duty, reinforced Kino Flo Flathead 80 Shipping case (1), used to hold a Flathead 80 System.
In the Box Bundle Items Flathead 80 Light Fixture Only zbuqbqxvet Mounting Plate with Junior (1-1/8") Pin - One Year Manufacturer's Warranty
2 x Extension Cable for 4-Bank Fixture - 25' 2 x 4Bank DMX Ballast (North American Plug) Flathead 80 Ship Case (1-Unit)
Also Includes Table of Contents
|
Upload User Manual
Have you got an user manual for the Kino Flo Flathead 80 DMX System Kit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - Flathead 80 Light Fixture Only
| Input Voltage | 110-120V AC | | Lamps | 8-True Match lamps, optional | | Ballast | 2- Foto-Flo 400 Removable, flicker free, optional | | Mounting | Base mounting plate with Baby receiver, optional | | Weight | 26 lbs (11.8 kg) | | Dimensions | 51 x 24 x 4.1" (130 x 61 x 10 cm) | | | | Box Dimensions (LxWxH) | 58.25 x 36.0 x 10.75" | - Mounting Plate with Junior (1-1/8") Pin
| | | Box Dimensions (LxWxH) | 13.2 x 5.4 x 3.3" | - Extension Cable for 4-Bank Fixture - 25'
| | | Box Dimensions (LxWxH) | 12.1 x 12.05 x 3.05" | - 4Bank DMX Ballast (North American Plug)
| Input Voltage | 100-240 VAC, 50/60 Hz | | Amperage | F75/2.6 A, F40/2.5 A, F30/1.6 A, F20/0.9 A | | Output Frequency | 25 kHz | | Lamp Switching | 1-4 | | Output Switching | 4 / 2' (122 / 61 cm) | | Operating Temperature | 14 to 122°F (-10 to 50°C) | | Dimensions | 12 x 11 x 3" (31 x 28 x 8 cm) | | Weight | 5.3 lb (2.4 kg) | | | | Box Dimensions (LxWxH) | 14.6 x 11.7 x 3.1" | - Flathead 80 Ship Case (1-Unit)
| | | Closure Type | Latch | | Casters | 4 | | Material of Construction | Aluminum, Wood | | Exterior Dimensions (W x H x D) | 53.8 x 10 x 28.5" / 14 x 25 x 72 cm | | Weight | 49 lb / 20.5 kg | | | | Box Dimensions (LxWxH) | 58.5 x 36.6 x 11.0" |
