User Manual for Kino Flo Flathead 80 System Click to enlarge the picture
Contents of the user manual for the Kino Flo Flathead 80 System
- Product category: Fluorescent Lights Kino Flo
- Brand: Kino Flo
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Kino Flo Fluorescent Lights
|
User manual for the Kino Flo Flathead 80 System contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Kino Flo product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Kino Flo user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Kino Flo product will considerably shorten its lifespan!
|

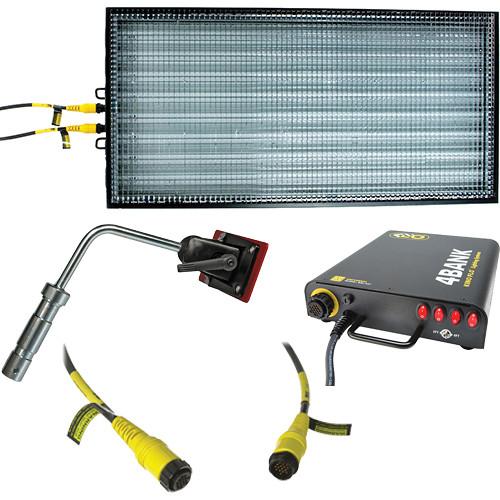

Product description This Flathead 80 System from Kino Flo is a large, soft 51 x 24" bank with a low 4" profile that uses 8 optional True Match lamps to create a wall of light or simulate a large bounce surface with low demands on floor space. It's also an ideal overhead source. The light includes a Flathead 80 fixture, two 4Bank universal ballasts, a 1-1/8" Junior mount, and two 25' head-to-ballast cables. The Flathead 80 System comes with a gel frame, 90-degree louver, and 4 cardholder brackets that allow the use of foam core panels as barndoors. Because of the wide popularity of the 4Bank, Kino Flo decided to use two 4Bank ballasts for individual lamp control instead of dimming. Each ballast runs on 100-240 VAC mains power for worldwide use. - Flathead 80 Light Fixture Only The Flathead 80 System works very much like the vaunted Foto-Flo 400, but it delivers twice as much light. The Flathead 80 fixture uses Kino Flo's custom Hollywood-style True Match lamps and reflector technology that displays a very soft, flattering beauty light. A special parabolic louver focuses the beam. Cardholder "bumpers" at each corner have also been added for hanging the fixtures, or for attaching foam core cutters or black cloth.This is a fixture only -- no mounting plate, or ballasts. As with all Kino Flo fixtures and kits, the fluorescent tubes must be purchased separately.
- Delivers twice as much light as the Foto-Flo 400.
- Ideal for fashion and portrait photography.
- Tubes can be controlled remotely with a pair of optional Foto-Flo ballasts.
- Cool and lightweight enough to be hand held or mounted directly to walls and ceilings.
- 4Bank Ballast The 4Bank Ballast from Kino Flo is designed to power the 4' or 2' versions of the 4-lamp 4Bank fluorescent fixture. The silent, flicker-free ballast, specifically developed for film and video production, has 4-lamp on/off switching, runs on 100-240 VAC current and can power the fixture up to 75' away using optional head-to-ballast extension cables. It has a special Select switch to raise or drop wattage for output and color control.
- Benefits
-
- High output, flicker-free ballast
- Universal input voltage from 100-240 VAC can be used anywhere in the world
- Instant-on, dead quiet
- Individual lamp switching - no color shift
- HO/Std switching
- Low amperage draw
- Same ballast runs 4' and 2' lamps
- UL listed, CE approved
- Mounting Plate with Junior (1-1/8") Pin This is a Kino Flo Twist-on Mounting Plate with a junior (1-1/8") pin that will allow mounting of a Kino FLo fluorescent fixture into a cine-stand's female receptor.
- Extension Cable for 4-Bank Fixture - 25' Extends the range of one of the Kino Flo's 4-Bank fixture components.
25 feet long. In the Box Bundle Items Flathead 80 Light Fixture Only euwswusxazaztyervysrfsbs 2 x 4Bank Ballast Mounting Plate with Junior (1-1/8") Pin - One Year Manufacturer's Warranty
2 x Extension Cable for 4-Bank Fixture - 25' Table of Contents
|
Upload User Manual
Have you got an user manual for the Kino Flo Flathead 80 System in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - Flathead 80 Light Fixture Only
| Input Voltage | 110-120V AC | | Lamps | 8-True Match lamps, optional | | Ballast | 2- Foto-Flo 400 Removable, flicker free, optional | | Mounting | Base mounting plate with Baby receiver, optional | | Weight | 26 lbs (11.8 kg) | | Dimensions | 51 x 24 x 4.1" (130 x 61 x 10 cm) | | | | Box Dimensions (LxWxH) | 58.25 x 36.0 x 10.75" | - 4Bank Ballast
| Voltage | 100 - 240 VAC 50/60 Hz | | Plug | US/North American plug | | Output Frequency | 25 kHz | | Amperage | F75 / 2.6 A, F40 / 2.5 A
F30 / 1.6 A, F20 / 0.9 A | | Lamp Switching | 1 - 4 | | Output Switching | 2 / 4' lamps | | Operating Temperature | 14 to 122°F (-10 to +50°C) | | Dimensions | 13 x 9.5 x 3.0" (33 x 24 x 7.6 cm) | | Weight | 4.9 lb (2.2 kg) | | | | Box Dimensions (LxWxH) | 15.25 x 9.75 x 2.9" | - Mounting Plate with Junior (1-1/8") Pin
| | | Box Dimensions (LxWxH) | 13.2 x 5.4 x 3.3" | - Extension Cable for 4-Bank Fixture - 25'
| | | Box Dimensions (LxWxH) | 12.1 x 12.05 x 3.05" |
