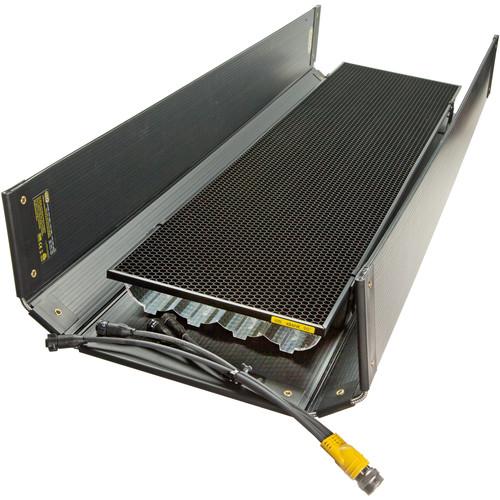

User Manual for Kino Flo FreesStyle T44 LED Fixture Click to enlarge the picture
Contents of the user manual for the Kino Flo FreesStyle T44 LED Fixture
- Product category: LED Lights Kino Flo
- Brand: Kino Flo
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Kino Flo LED Lights
|
User manual for the Kino Flo FreesStyle T44 LED Fixture contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Kino Flo product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Kino Flo user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Kino Flo product will considerably shorten its lifespan!
|
Product description The FreeStyle T44 LED Fixture from Kino Flo is an LED lamp head that is part of a system or kit that is powered the separately-purchased, required LED 140X DMX Controller. The fixture measures 52 x 13 x 3.5" w/ 6.5" barndoors and weighs 11 lb - light enough to hand hold. It comes with a 90-degree removable louver (grid). The fixture runs on 100 to 240 VAC current through its optional controller and requires separately purchased LED tubes.The FreeStyle 144 requires a head cable and controller for use. The controller offers an extensive 6-channel array of control features and use options. It has two menus for color and a "White Menu" for Dimming, Kelvin Temperature, and Green/Magenta adjustments. Using one of the color menus expands the Kelvin range from a warm 2500 to an ice-blue 9900K. The second color menu allows you to work with RGB, a real convenience when employing color wheels or RGB presets. The fourth channel (named the Gel channel) has presets for over 100 well-known temperature-modifying gels including blue/green screen, sodium vapor, and mercury vapor.A fifth channel allows for Hue adjustments along a 360-degree range like a color wheel, while the 6th Saturation channel controls the intensity of the chosen color. The controller has onboard DMX for making adjustments remotely from a console and also is compatible with Lumen Radio wireless DMX. The controller runs on 100 to 240 VAC current for worldwide use. But can also run on "block" batteries when mains power is unavailable. - Benefits Using Separately Purchased LED Controller
-
- Kelvin presets
- Dial-in color temperature control between 2700-6500K
- Extended color palette from 2500-9900K
- Green/Magenta Control
- Hue angle and Saturation adjustments
- RGB control
- Works with Apps with predetermined RGB presets or color wheels
- Can use preset buttons to store custom Kelvin settings
- Light levels do not change when selecting Kelvin settings
- No color shift while dimming
- Color-correct with high color rendering index (CRI 95)
- Universal input 100-240 VAC or 24 VDC
- Energy efficient, low electrical draw
- Flicker-free, dead quiet operation
- Full range onboard and DMX dimming
- DMX wireless link (Lumen Radio)
- DMX Auto Terminate
- Remote fixture with built-in barndoors
- Removable LED panel
- Fixture includes removable 90° Honeycomb Louver
- Honeycomb louver also available in 60° as accessory
- Lightweight, slim profile
- Light enough to be handheld
- Separately purchased Controller mounts onto fixture or operates remotely with extension cable
In the Box Kino Flo FreesStyle T44 LED Fixture Louver for 4ft 4Bank (90°) ybqdaesuwfexxyxw Reflector Tube Harness Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Kino Flo FreesStyle T44 LED Fixture in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersKino Flo T44 Specs | | | Beam Angle | 100° | | Color Temperature | 2500 to 9900K With Separately Purchased LED Tubes | | Color Accuracy Standard | CRI 95 | | Cooling System | Passive | | Dimming | Yes, 0 to 100% | | Display | None | | Photometrics | 55 fc / 591.8 lux at 8' / 2.44 m | | Fixture Dimensions | 52.0 x 13.0 x 6.5" / 132.1 x 33.0 x 16.5 cm | | Fixture Weight | 11.02 lb / 5 kg | | | | Battery Plate | None | | Power Input Connector | IEC | | DMX Connector | 3-Pin XLR | | | | Yoke Mount | None | | Fixture Mount | None | | Accessory Mount | None | | | | AC Input Power | 100 to 240 VAC, 50 / 60 Hz | | DC Input Power | 18 to 36 VDC | | Power Source | AC Adapter, External Battery |
